Asus TUF Gaming Z590 Plus WIFI – Socket 1200

Giá Tân Doanh: 6,090,000
  • Tình trạng: Mới 100%
  • Bảo hành: 36 tháng
  • Xuất xứ: Chính hãng
  • Thương hiệu: Asus
  • Giá trên đã bao gồm VAT.
  • Giao hàng
    Giao hàng

    Miễn phí giao hàng trong nội thành TP.HCM bán kính 12km với hoá đơn trên 500.000đ.

  • Đổi trả
    Đổi trả

    Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây

  • Hotline CSKH
    Hotline CSKH

    093.88.99.941
    1900.966.939

  • Kỹ Thuật
    Kỹ Thuật

    093.88.99.947

Thông tin Sản Phẩm

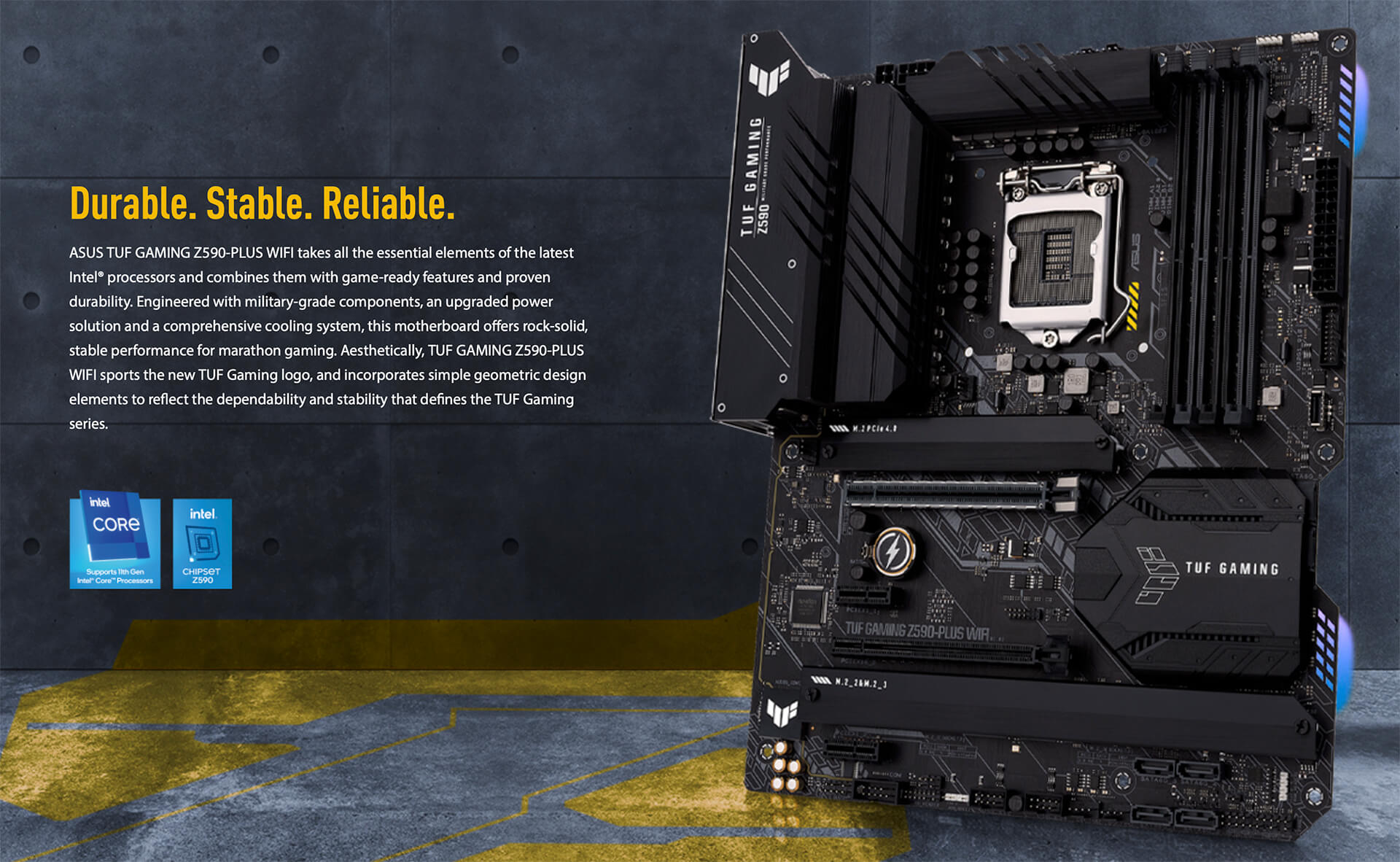

Asus TUF Gaming Z590 Plus WIFI - Socket 1200

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel® Z590 Chipset
Memory DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics 1 x HDMI 2.0***
1 x DisplayPort 1.4**1 x HDMITM 2.0**** Graphics specifications may vary between CPU types.

** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

– Intel® 11th processors support PCIe 4.0 x16

– Intel®10th processors support PCIe 3.0 x16

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

* Supports PCIe bandwidth bifurcation for RAID on CPU function.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****

6 x SATA 6Gb/s ports

* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.

Wireless & Bluetooth Intel® Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.0 or later
USB Rear USB:Total 7 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

– Audio cover

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors 1 x Thunderbolt 4 header

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Special Features ASUS TUF PROTECTION

– DIGI+ VRM (- Digital power design with DrMOS)

– Enhanced DRAM Overcurrent Protection

– TUF LANGuard

– Overvoltage Protection

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– ProCool

– Pre-mounted I/O shield

– SafeSlot

AURA Sync

– AURA RGB headers

– Addressable Gen 2 RGB headers

Software Features ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

– EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Accessories Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

2 x M.2 Rubber Packages

1 x M.2 SSD screw package

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual

Operating System Windows 10 64bit
Form Factor ATX
30.5cm x 24.4cm
