Bộ Lưu Điện UPS APC BX700U-MS – 700VA/390W – Tower

• Output power capacity

  390Watts / 700VA

• Max Configurable Power (Watts)

  390Watts / 700VA

• Nominal Output Voltage

  230V

• Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

• Output Frequency (not synced)

  50/60 Hz +/-1 Hz

• Topology

  Line Interactive

• Waveform type

  Stepped approximation to a sinewave

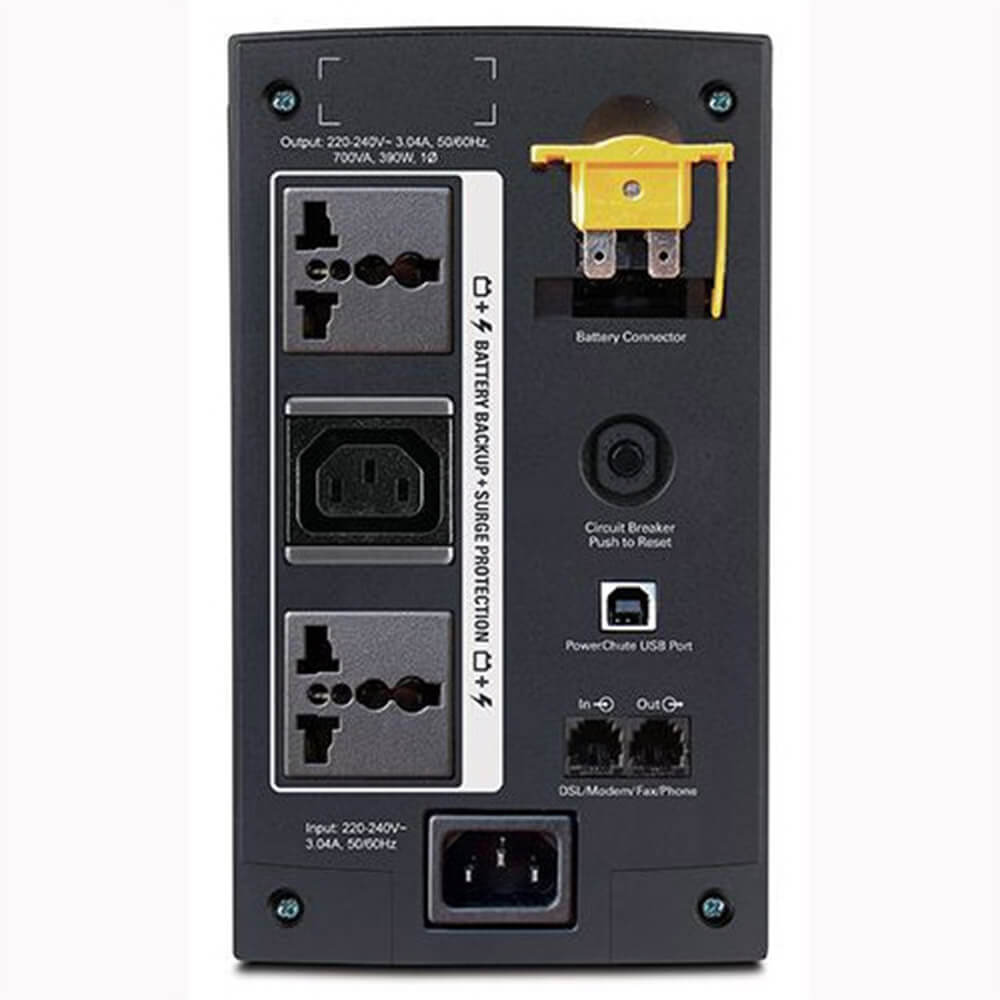

• Output Connections
  (1) IEC 320 C13 (Battery Backup)
• Transfer Time

  4ms typical : 6ms maximum

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14, NEMA 5-15P

• Cord Length

  1.22meters

• Input voltage range for main operations

  140 – 300V

• Number of Power Cords

  2

• Type of Input Protection Required

  3-pole breaker

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  6hour(s)

• Replacement Battery

  APCRBC110

• Expected Battery Life (years)

  2 – 5

• Battery Volt-Amp-Hour Capacity

  81

Communications & Management

• Interface Port(s)

  USB

• Control panel

  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating

  273Joules

• Data Line Protection

  RJ-11 Modem/Fax protection

Physical

• Maximum Height

  200mm , 20.0cm

• Maximum Width

  115mm , 11.5cm

• Maximum Depth

  256mm , 25.6cm

• Net Weight

  6.0kg

• Shipping weight

  6.8kg

• Shipping Height

  275mm , 27.5cm

• Shipping Width

  295mm , 29.5cm

• Shipping Depth

  340mm , 34.0cm

• Color

  Black

• Master Carton Units

  2.0

• Master Carton Weight

  13.7

Environmental

• Operating Environment

  0 – 40 °C

• Operating Relative Humidity

  0 – 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 – 40 °C

• Storage Relative Humidity

  0 – 95 %

• Storage Elevation

  0-9000meters

• Audible noise at 1 meter from surface of unit

  45.0dBA
