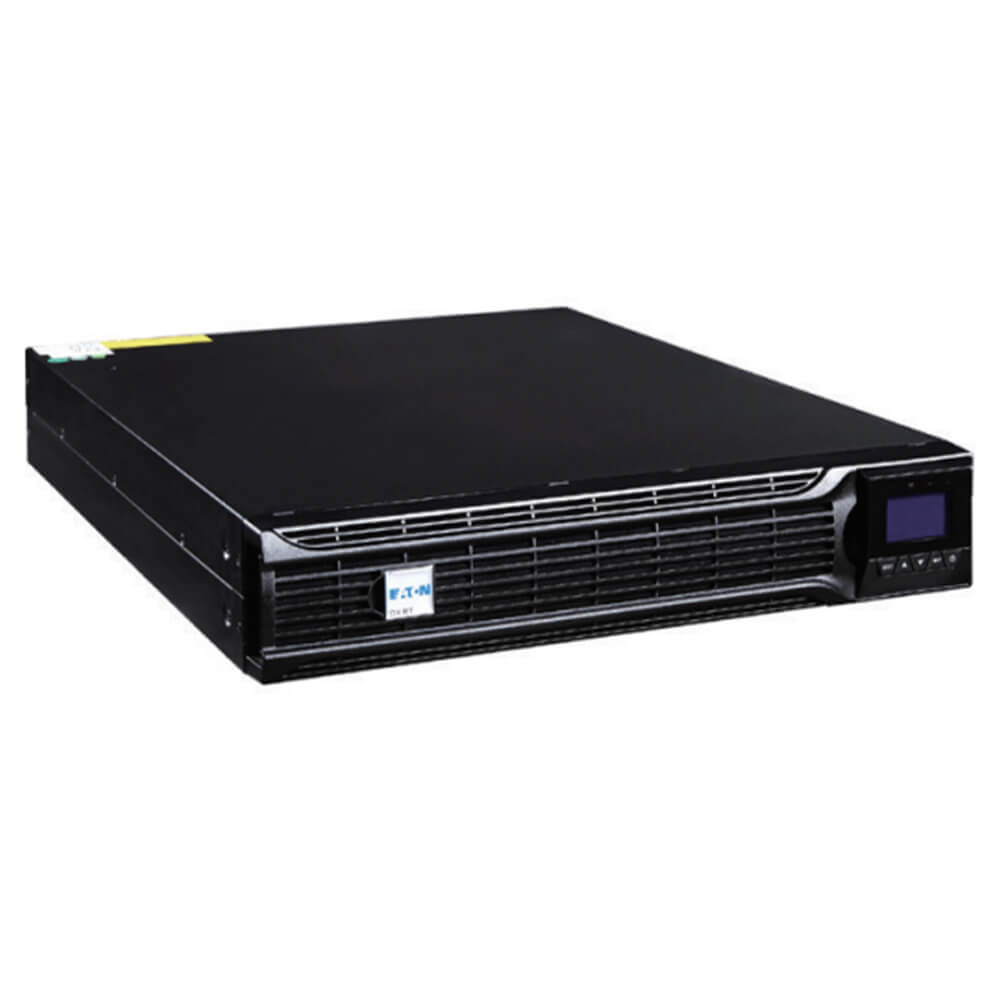

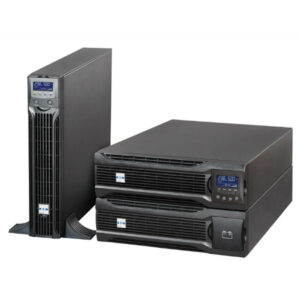

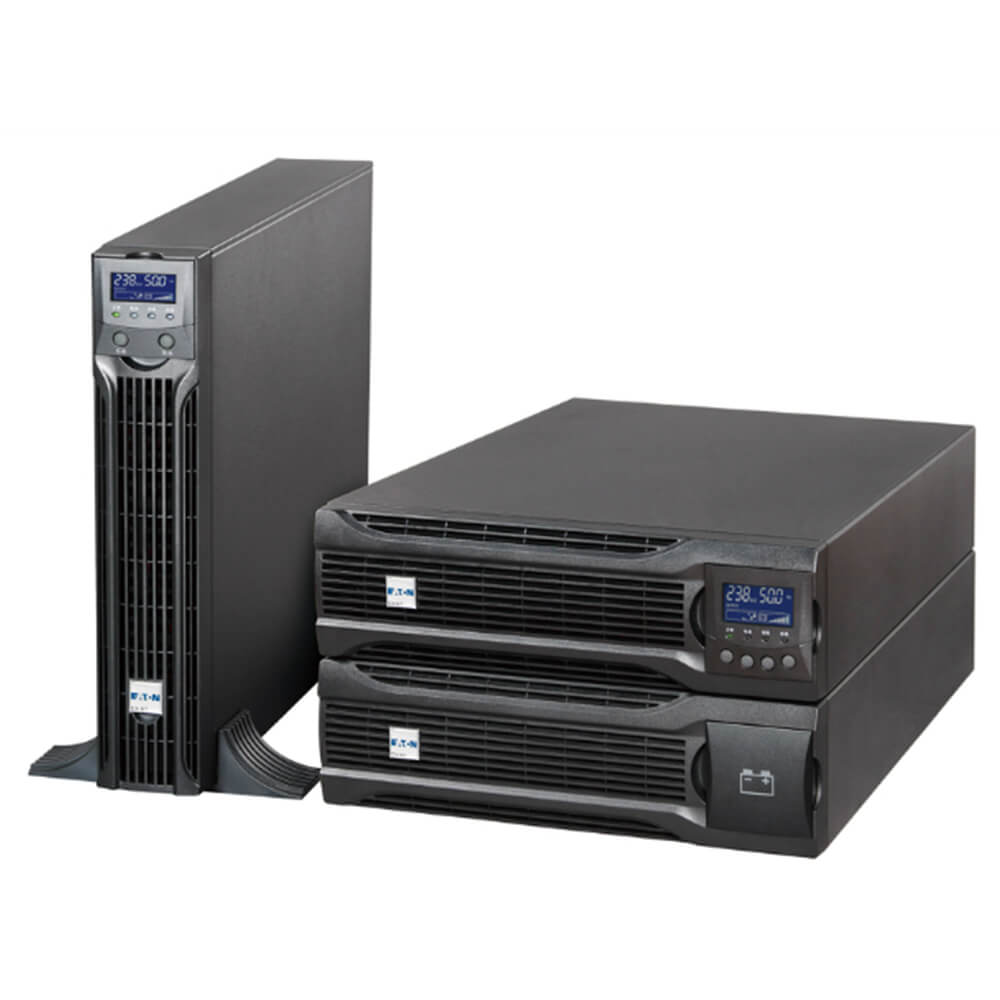

Bộ Lưu Điện UPS Eaton DXRT 10KiXL – 10kVA – 10kW – Tower
Giá Tân Doanh:
64,990,000₫
- Tình trạng: Mới 100%
- Bảo hành: 24 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: Eaton
- Giá bán đã bao gồm VAT.
Thông tin Sản Phẩm
| Model | DXRT 10KiXL |
| Rating (VA/W) | 10KVA/10KW |
| Format | Tower / Rack |
| Input Characteristics | |
| Input voltage range | 110VAC~275VAC |
| Input frequency range | 40~70Hz |
| Power factor | ≥ 0.995 |
| Harmonic (linear load) | <3% |
| Output Characteristics | |
| Power factor | 1 |
| Output voltage | 208 / 220 / 230 / 240VAC (default 220VAC) |
| Voltage variation | ±1% |
| Output frequency (battery mode) | (50/60±0.1)Hz |
| Voltage distortion (linear load) | <1% |
| Overload capacity | 105%~125% for 10 minutes; 125%~150% for 30 seconds |
| Battery Characteristics | |
| Type | Valve-controlled maintenance-free lead-acid type |
| Battery voltage | 192VDC default (192/ 204/ 216/ 228/240VDC adjustable) |
| Backup time – Full load/ 50% load (PF=0.9) | depends on battery |
| Charger current | 0~12A (default 4A) |
| UPS Characteristics | |
| Efficiency | double conversion mode 95%; ECO mode 98% |
| Maintenance bypass switch | Built-in |
| Dimensions W x D x H / Weight | |
| Dimensions (mm) | 443 x 570 x 87 |
| Weight (kg) | 15.0 |
| Operating conditions, Standards and Approvals | |
| Display | Graphical LCD + LED indicator |
| Operating temperature | 0 to 40°C |
| Humidity | 0 ~ 95% (no condensation) |
| Altitude | <1000m no derating, >1000m derating 1% for every 100m |
| Storage temperature | -20 to 55°C (without battery) |
| Protection level | IP20 |
| Parallel | Support 3 units |
| Communication | RS232 / USB / Network-M2/ INDGW-M2/ Relay-MS cards |
| Options | Rack mounting rail, EBM, PDU, centralized monitoring software IPM, parallel kit |
| Approvals | CE |
