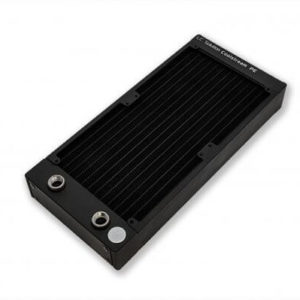

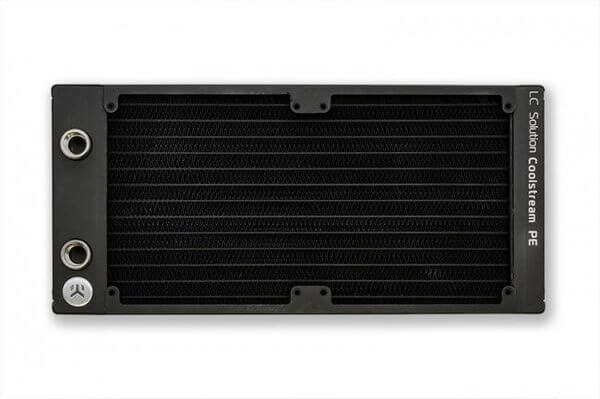

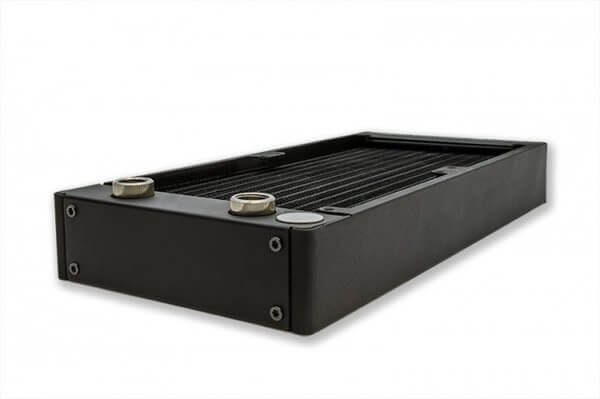

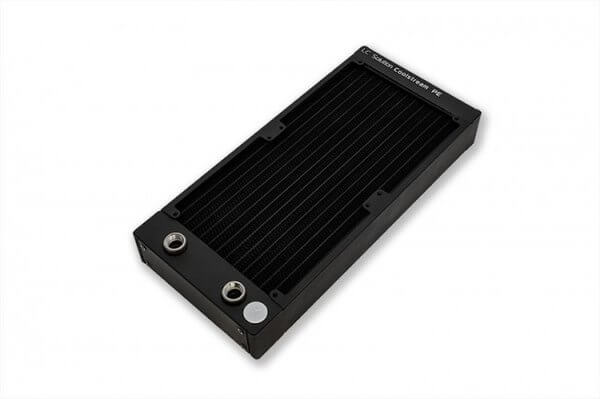

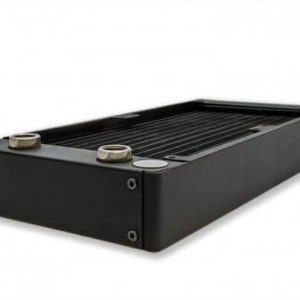

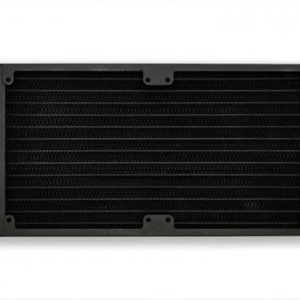

EK-CoolStream PE 240 (Dual) – Radiator

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK’s unique CSQ design with latest radiator core engine.

Best cooling capacity in the 40mm thick radiator class!

Details

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK’s unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

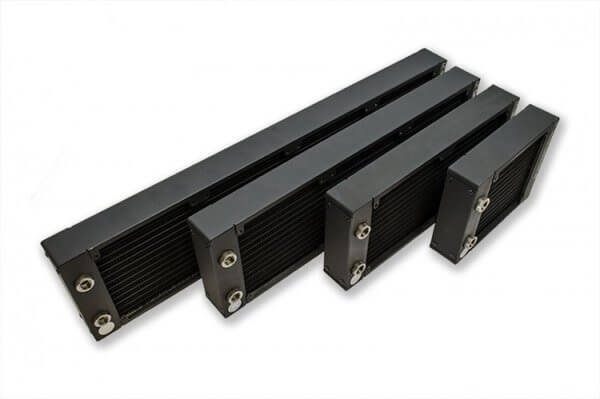

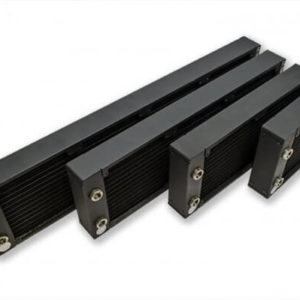

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water cooled system.

This radiator offers best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

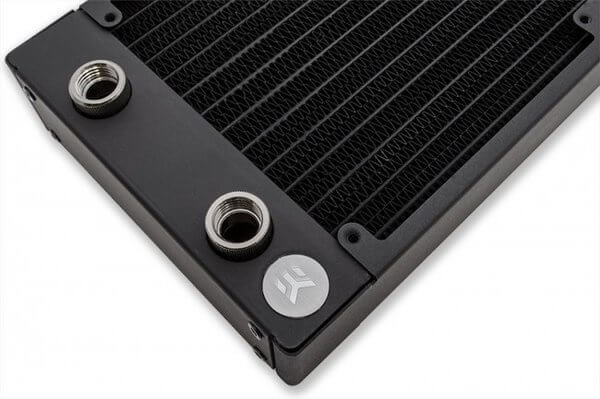

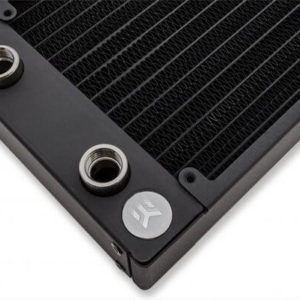

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-CSQ series compression fittings.

Technical details:
Material:
– Copper fins
– 90% copper tubing (H90)
– Brass chambers
– Aluminum housing

Dimensions: 280 x 130 x 38mm (L x W x H)
Weight: 0.77kg
Liquid Capacity: ~165mL
FPI: 19 (split fin)
Port threads: 2x G1/4
Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
Pressure tested: 1bar(g)

Enclosed:
– EK-CoolStream PE series radiator /w pre-installed G1/4 extenders
– flat-head UNC 6-32 screws (l=30mm)
– flat-head UNC 6-32 screws (l=5mm)

PLEASE NOTE:

·         When using fans other than standard 120x120x25mm size please use appropriately long screws!

·         Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
