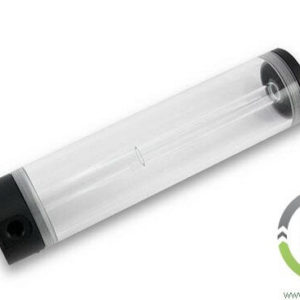

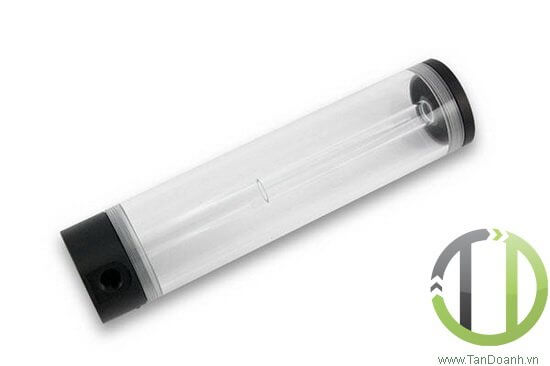

EK-Multioption RES X2 – 250 Basic

Bể chứa nước dạng ống có chiều dài 250mm có nhiều đường in out rất dễ tùy biến trong hệ thống tản nhiệt bằng dung dịch.

Chất liệu cao cấp giúp cho sản phẩm không bị ố hay vàng theo thời gian.

Basic version:

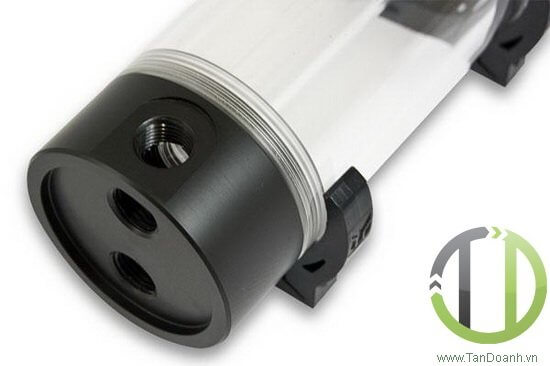

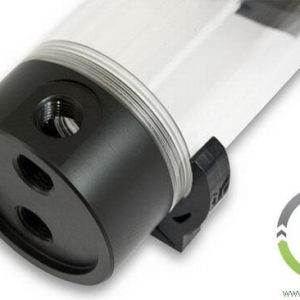

Bottom part gives user 3 options for placing the G1/4 fittings/barbs as inlet or outlet.
Top part gives 1 additional option for placing the G1/4 fitting/barb as inlet or outlet.
So the basic version has totally 4 options. Unused G1/4 ports are to be plugged with enclosed G1/4 Plugs.

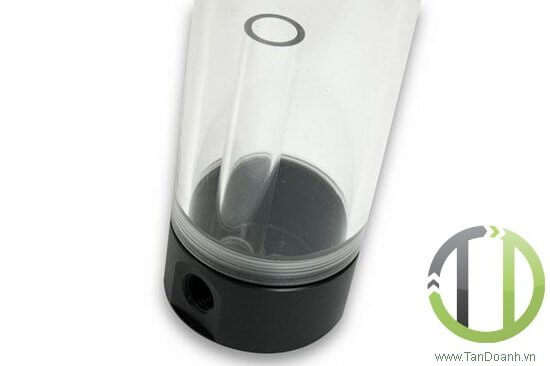

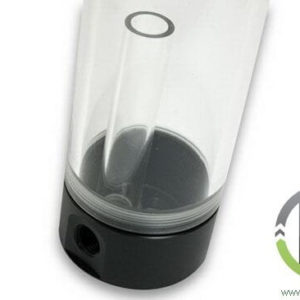

Additionally, the reservoir comes with one internal 12mm ID and 16mm OD tube with thread on one end so it can be screwed into threaded ports inside the reservoir (1 × bottom, 1 × top).
New Multioption X2 Reservoirs comes with a pair of EK design reservoir holders with adjustable fastening force with enclosed Allen key.

Technical data:
– Installation height: 250mm
– Diamter: 60mm
– Capacity: 285 ml
– Weight (netto): 0,38 kg

Enclosed within delivery:
– EK-Multioption X2 Reservoir Basic
– 1 × Internal 12mm ID 16mm OD tube with thread on one side

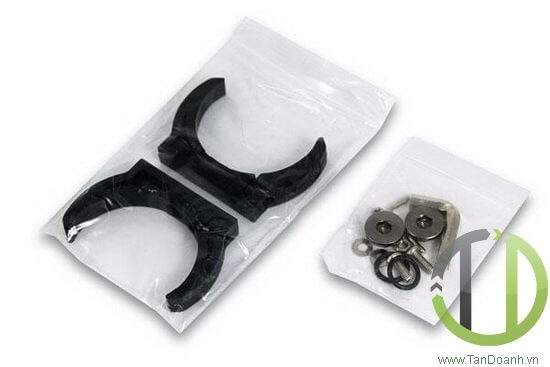

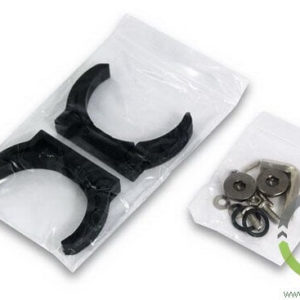

– Pair of EK reservoir holders with mounting screws
– 2 × G1/4 Plugs
– 1 × 6mm Allen key for plugs
– 1 × 2,5mm allen key for reservoir holders
