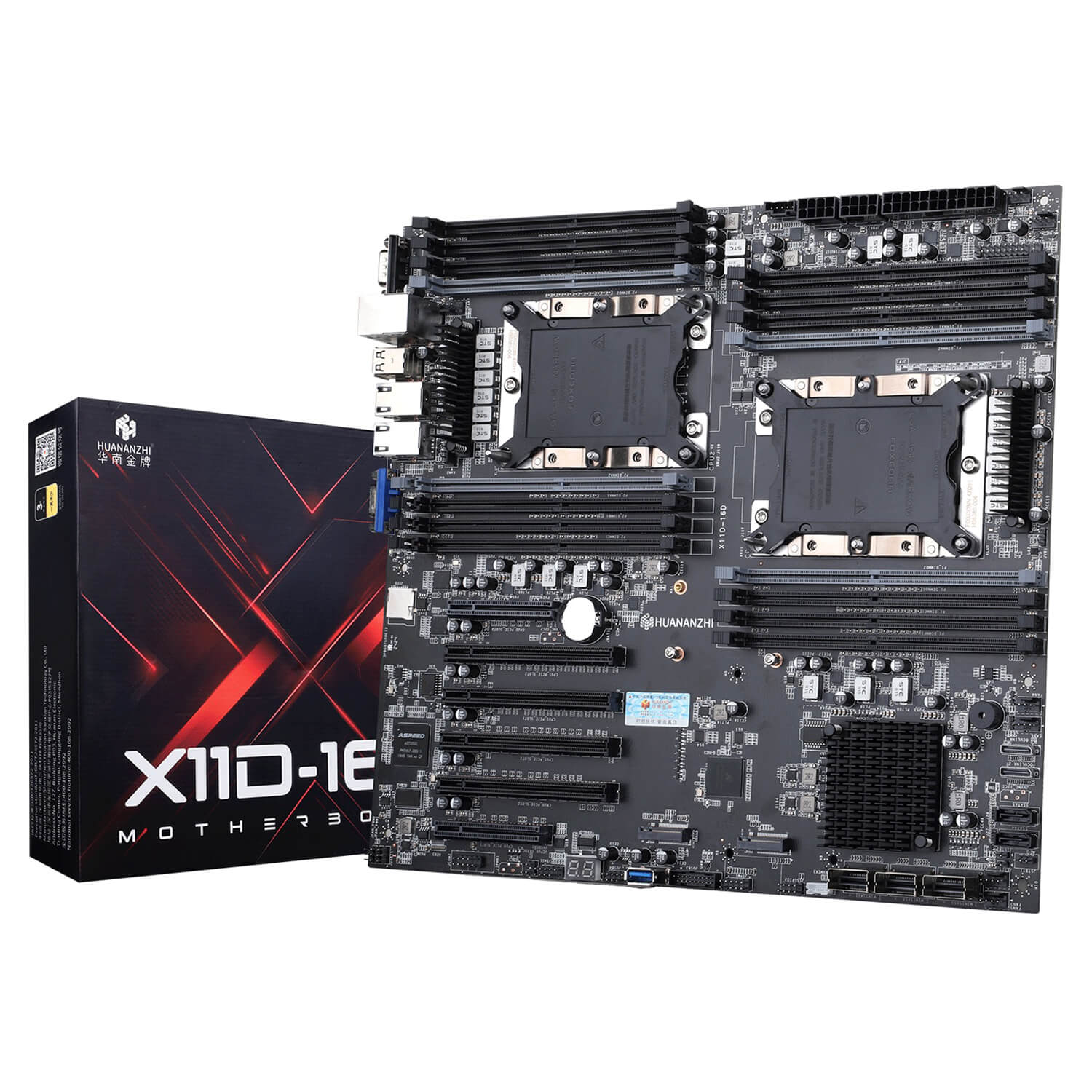

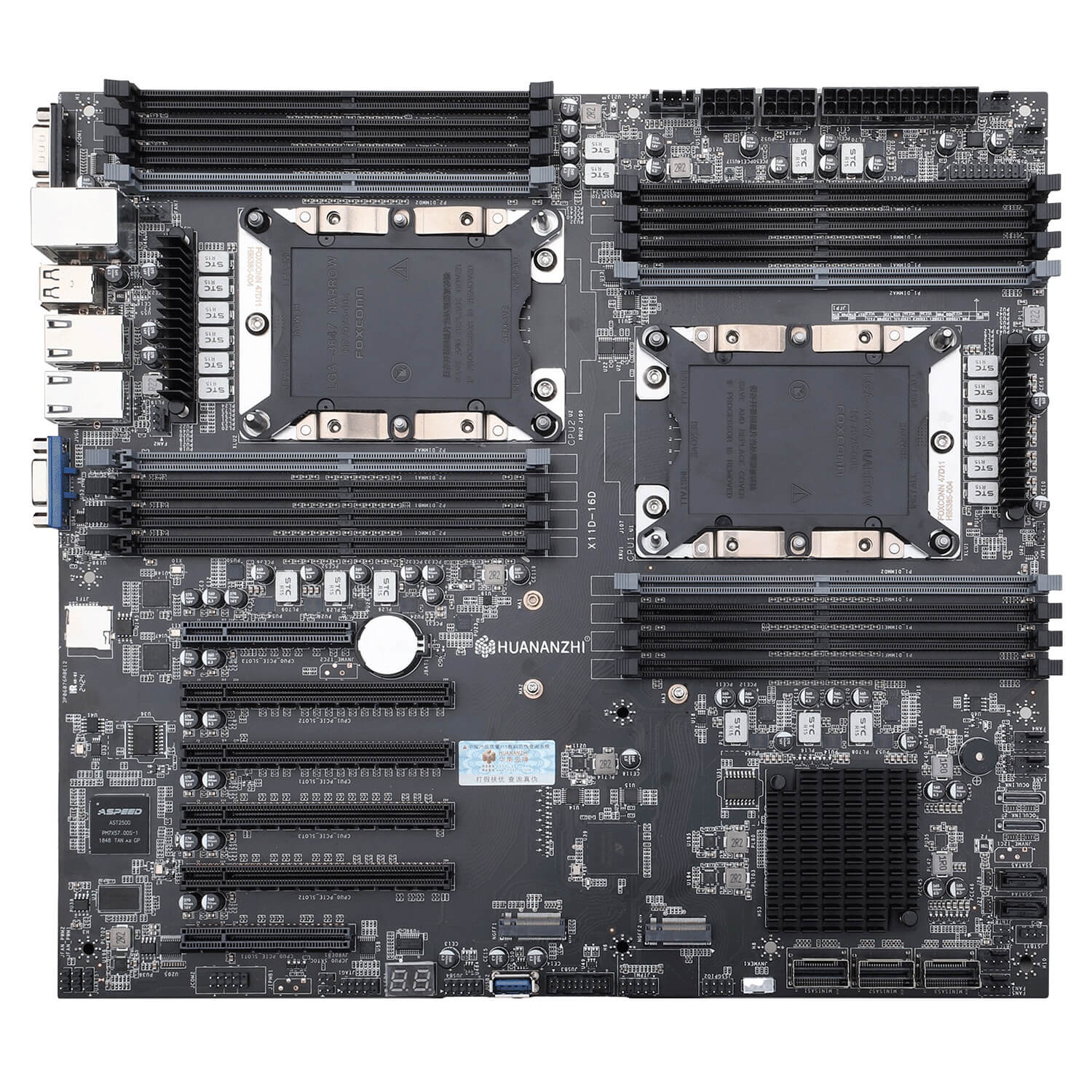

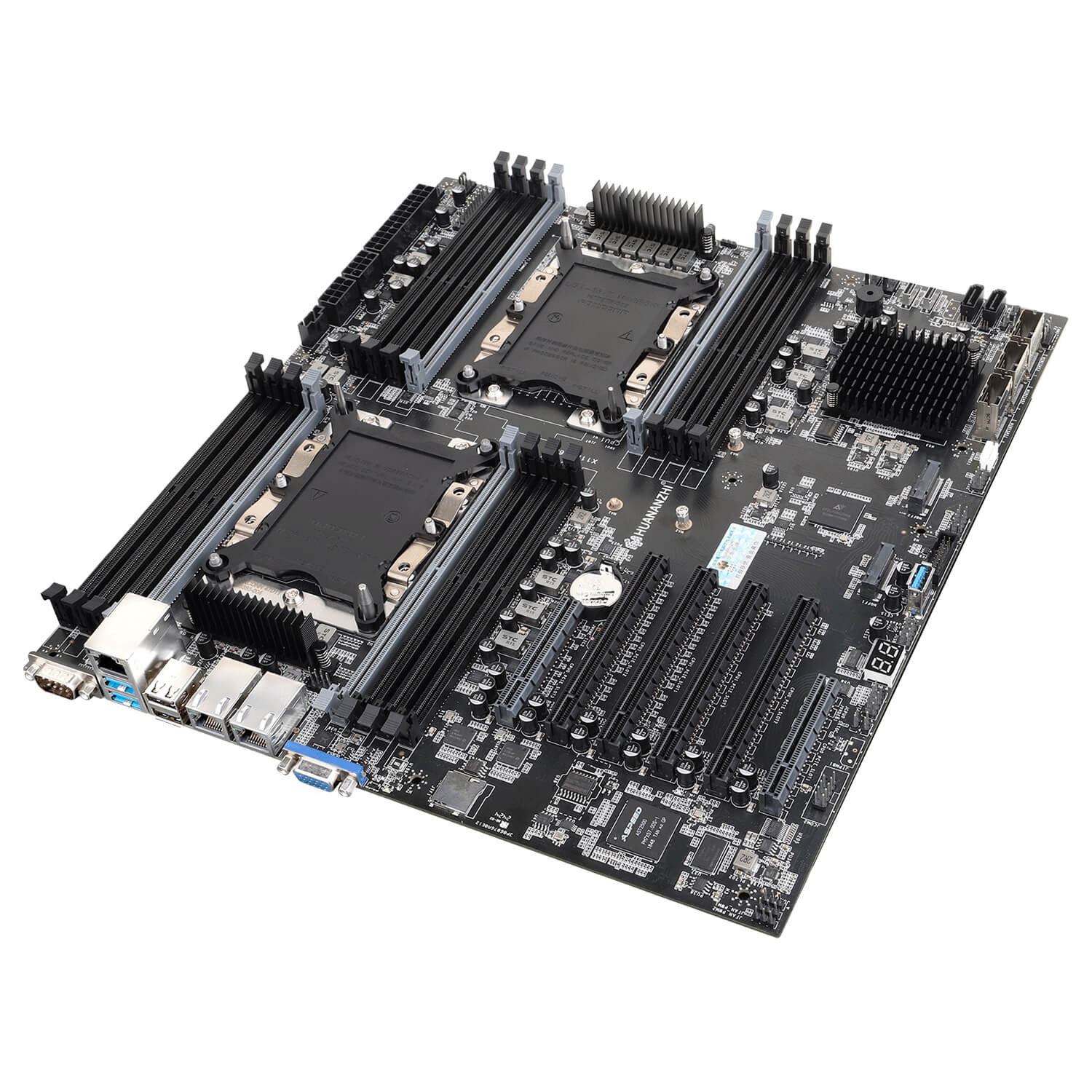

HUANANZHI X11D-16D C621/C622 Series – Socket LGA3647

Giá Tân Doanh: 9,500,000₫

Bảo hành: 12 tháng
Tình Trang: Likenew
Thương hiệu: Asus

Danh mục: Mainboard Server WS Thẻ: HUANANZHI

Giao hàng

Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây
Đổi trả

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây
Tổng đài CSKH

1900.966.939
Hotline Kinh Doanh

093.88.99.941
078.366.6668
Hotline Kỹ Thuật

093.88.99.947

Thông tin Sản Phẩm

Mô tả

Model	HUANANZHI X11D-16D
Chipset	Intel® C621/C622 Series
CPU	LGA3647 socket: Support for Intel® Xeon® 1st & 2nd Generation Dual Processor (Dual CPU supported)
Memory	16 x DDR4 DIMM slots, max support 128 GB per single module Supports single CPU hex-channel (6-channel) DDR4 2933/2666/2400/2133 MHz server memory (depends on CPU) Max support 2TB total system memory Supports ECC Registered (RDIMM) server memory
Onboard Graphics	ASPEED AST2500 (BMC) 1 x VGA display interface on the back panel
Audio	N/A
LAN	2 x Intel® I210 Gigabit Ethernet ports 1 x IPMI remote management port (Realtek RTL8211E)
Expansion Slots	4 x PCI Express 3.0 x16 slots 2 x PCI Express 3.0 x8 slots
Storage Interface	1 x M.2 2280 NVMe PCIe 3.0 x4 1 x M.2 22110 NVMe PCIe 3.0 x4 2 x OCULink PCIe 3.0 x4 ports 14 x SATA 3.0 connectors (among which 12 x SATA requires SAS SFF8087 RPM SATA adapter cable for output) Support RAID 0, RAID 1, RAID 5, and RAID 10
USB	Back Panel: 2 x USB 3.0 ports 2 x USB 2.0 ports Internal: 1 x USB 3.0 header 1 x USB 3.0 port 1 x USB 2.0 header
Power Connector	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Power Phases	6+6 phase power supply design
Fan Headers	8 x FAN headers
Internal I/O Connectors	1 x USB 2.0 header 1 x USB 3.0 header 1 x USB 3.0 port 1 x TPM header 1 x COM header 1 x motherboard buzzer 1 x motherboard debug card 1 x JPI2C1 header 1 x JVR1 header 1 x JSRBY1 header 1 x JINTR header 1 x JRTC1 header 1 x JUID_BTN pin 1 x JNVMEK1 header 1 x JSSGPIO2 header 1 x JTAG header 1 x JUART header 1 x JUID1 header 1 x JFP1 front panel header

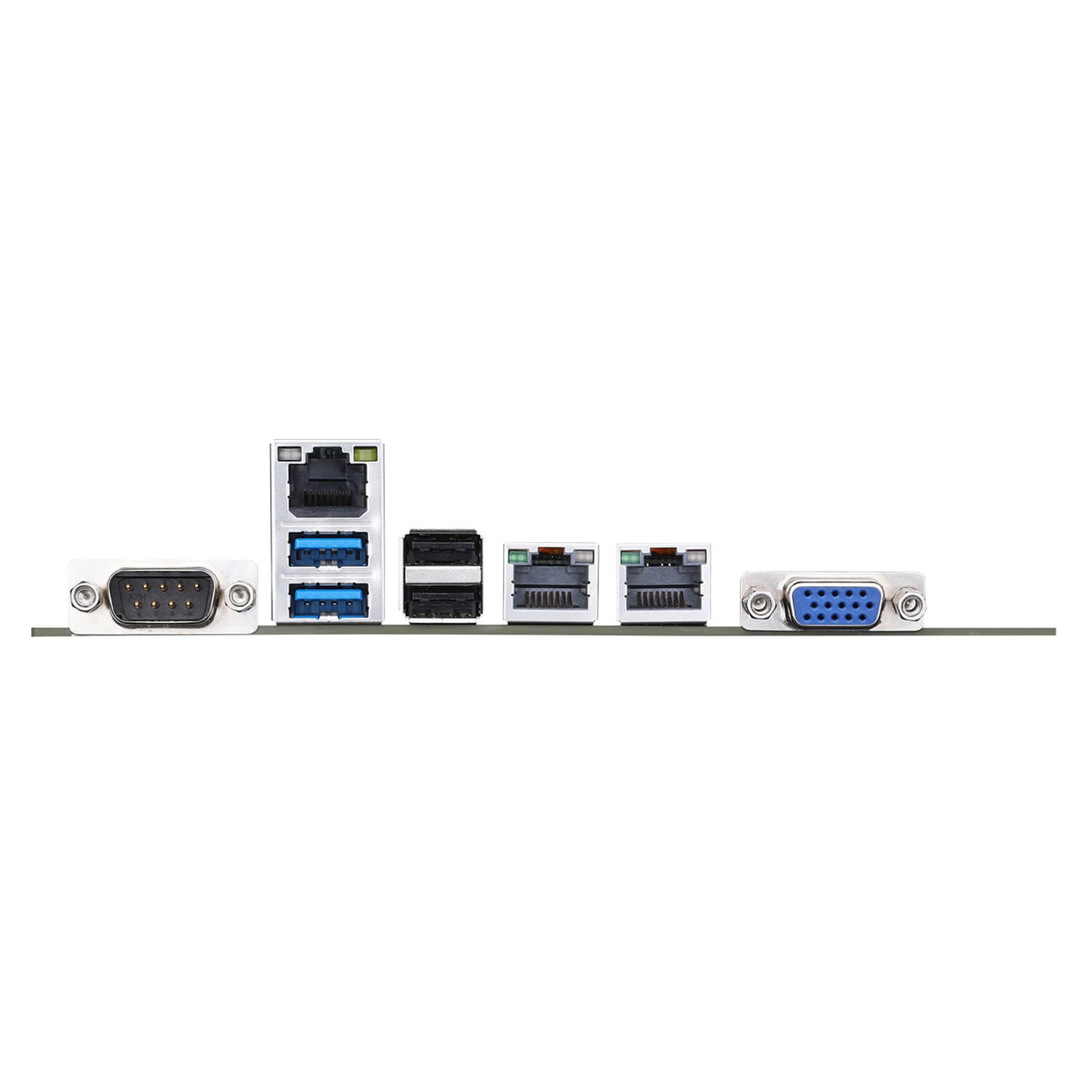

Back Panel Connectors	2 x USB 3.0 ports 2 x USB 2.0 ports 2 x RJ-45 LAN ports (Intel® I210) 1 x RJ-45 management port (IPMI) 1 x VGA display interface 1 x COM port
Management	ASPEED AST2500 (BMC) Supports IPMI 2.0
BIOS	AMI UEFI BIOS
Operating System	Support for Windows
PCB Layers	16-layer PCB
Form Factor	E-ATX Form Factor; 305mm x 330mm
Package Contents	1 x Motherboard 2 x SATA data cables 1 x I/O bracket
