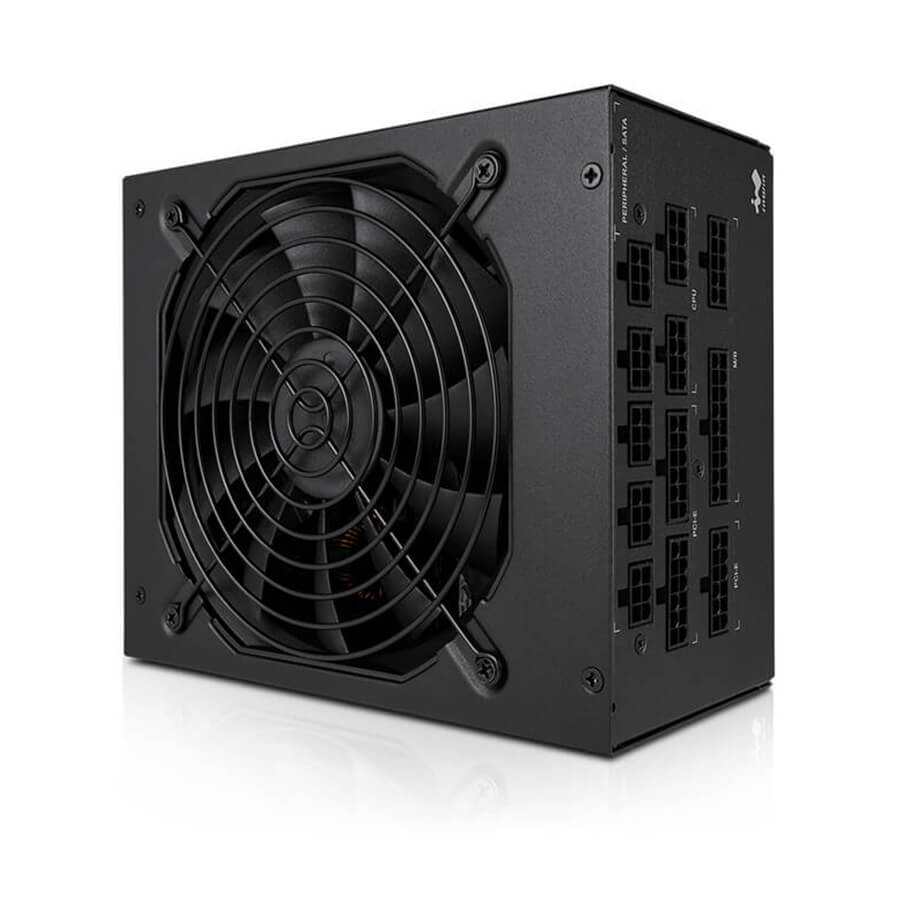

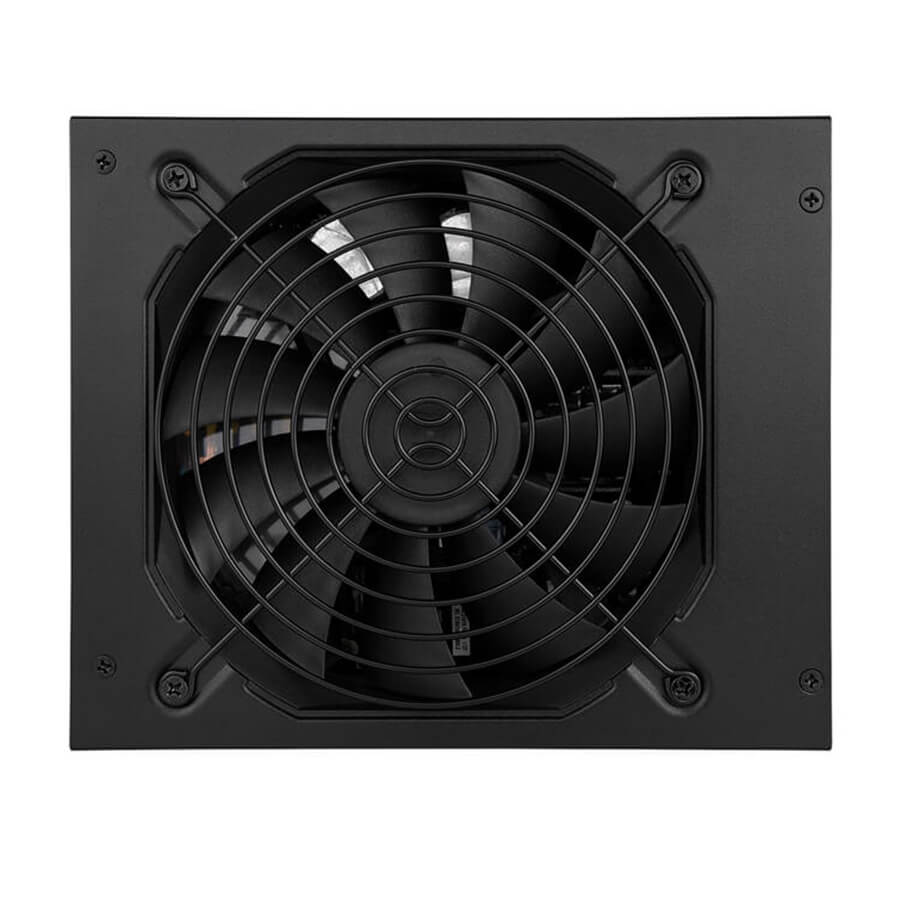

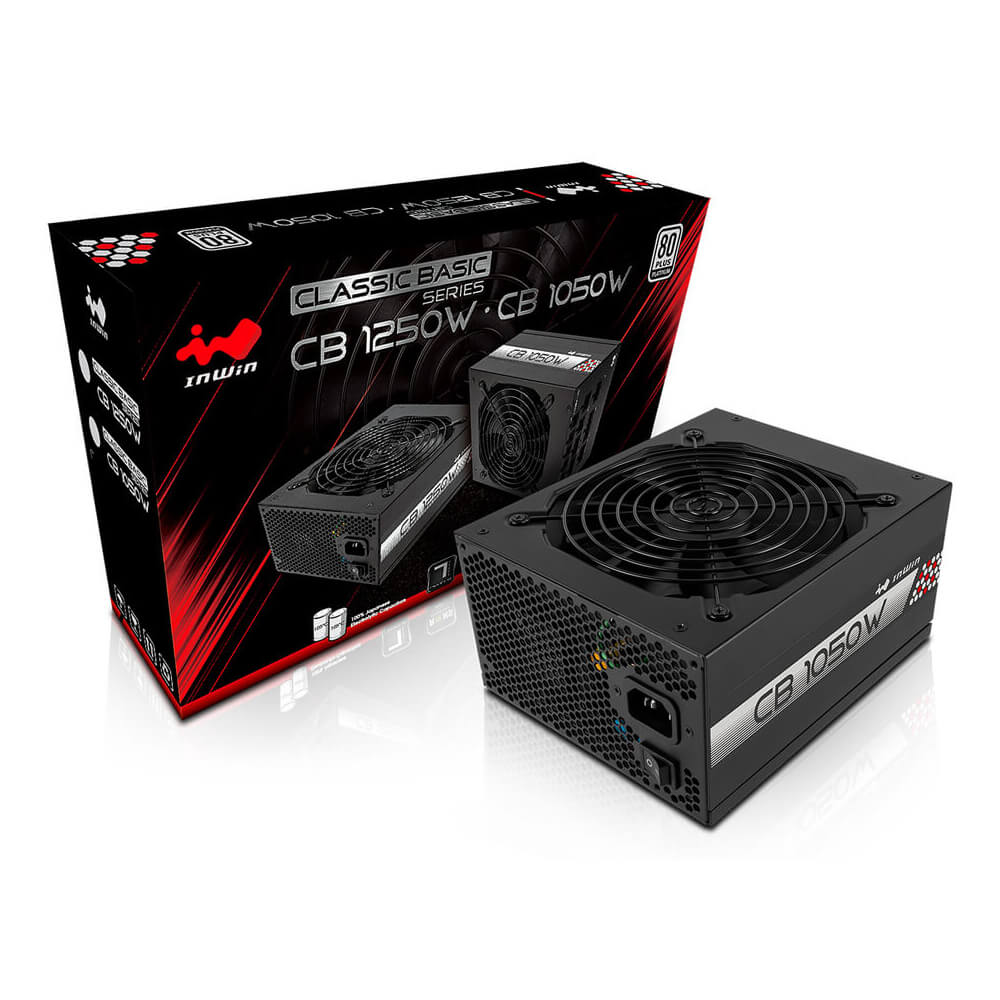

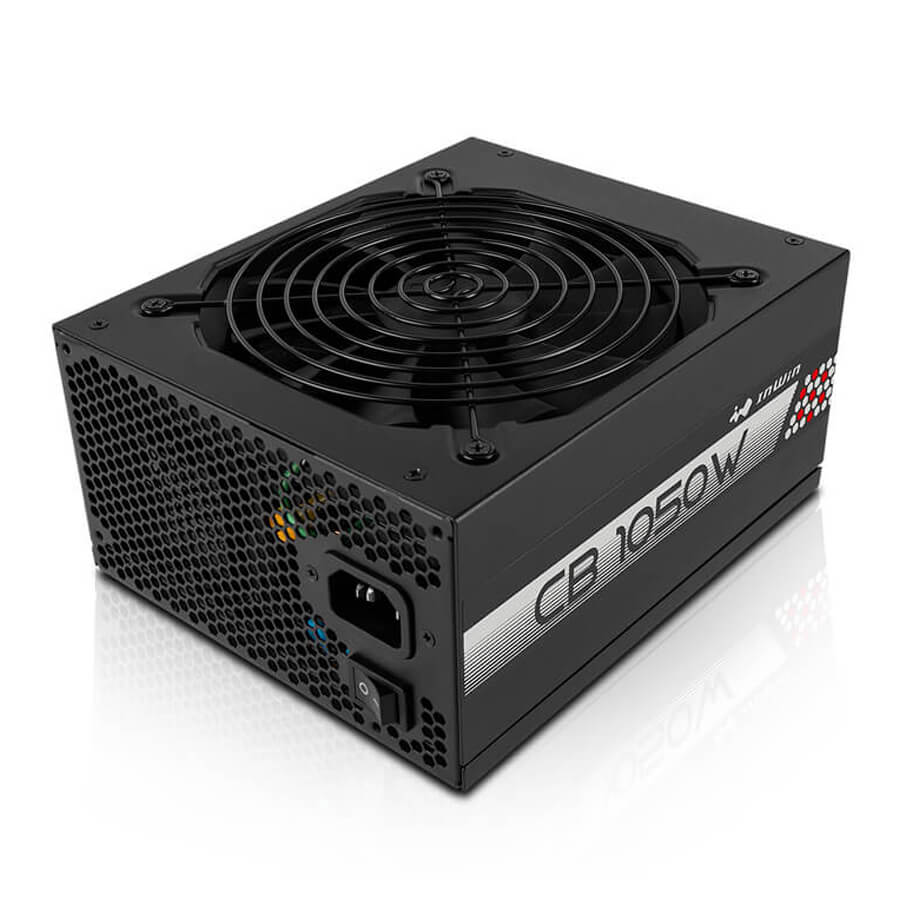

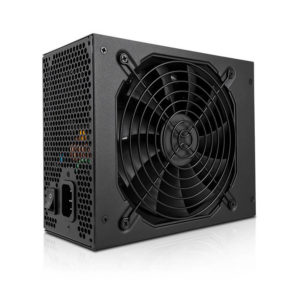

In-Win Classic Basic 1050W 80 Plus Platinum – Full Modular
Thông tin Sản Phẩm
Model: In-Win Classic Basic 1050W 80 Plus Platinum – Full Modular
Thông số:
| Model | CB-1050W | CB-1250W | |
| Part Number | IW-CB1050 | IW-CB1250 | |
| Total Power | 1050W | 1250W | |
| Material | SECC | ||
| Type | ATX12V V2.4 / EPS12V V2.92 | ||
| Cable Management | Fully Modular | ||
| PFC | Active PFC ( >0.9) | ||
| Efficiency | 80 PLUS Platinum | ||
| MTBF (Hours) | >100,000 hrs. | ||
| AC Input | 100 – 240Vac. 50-60Hz | ||
| Fan | 135mm Double Ball Bearing Fan | ||
| 50% Load Typical Fan Noise(dBA) | < 25dBA | ||
| Operating Temperature Range (℃) | 0~50℃ | ||
| Full Protection | OCP / OVP / UVP / SCP / OTP / OPP | ||
| Safety Certifications | cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM | ||

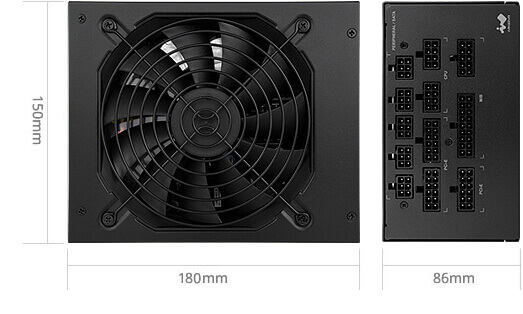

| Dimensions (L x W x D) | 180 x 150 x 86mm | ||
| Package Dimensions (L x W x D) | 220 x 360 x 100mm | ||
| Net Weight | 3.4kg | 3.5kg | |
| Gross Weight | 4.0kg | 4.1kg | |
| Warranty | 7 Years | ||

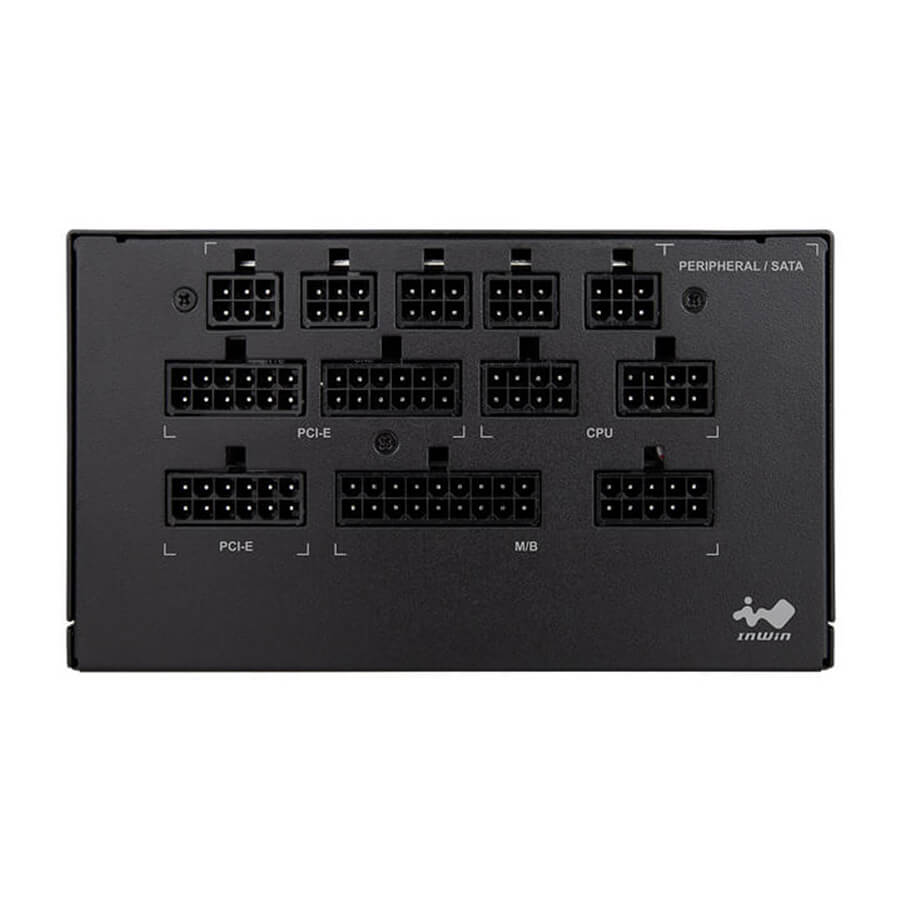

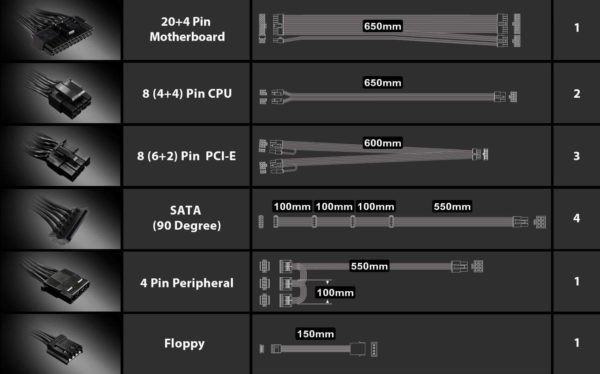

| Connectors | 20+4 Pin Motherboard | 1 | |
| 8 (4+4) Pin CPU | 2 | ||
| 8 (6+2) Pin PCI-E | 6 | 8 | |
| 4 Pin Peripheral | 3 | ||
| SATA (90 Degree) | 16 | ||
| Floppy | 1 | ||
| * InWin products comply with RoHS regulations. * Specifications may vary based on different regions. | |||
| Model | AC INPUT | 100-240Vac., 15A, 50-60Hz | ||||||
| DC OUTPUT | +12V | +5V | +3.3V | -12V | +5VSB | +5V&+3.3V Combined | Total Power | |
| CB-1050W | Max. Output Current | 87.5A | 25A | 25A | 0.3A | 3.0A | 130W | 1050W |
| Max. Combined Power | 1050W | |||||||
| CB-1250W | Max. Output Current | 104.2A | 25A | 25A | 0.3A | 3.0A | 130W | 1250W |
| Max. Combined Power | 1250W | |||||||
