Essentials | |
Product Collection | 13th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i5-13500 |
Status | Launched |
Launch Date | Q4’22 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 14 |
# of Performance-cores | 6 |
# of Efficient-cores | 8 |
Total Threads | 20 |
Max Turbo Frequency | 4.80 GHz |
Performance-core Max Turbo Frequency | 4.80 GHz |
Efficient-core Max Turbo Frequency | 3.50 GHz |
Performance-core Base Frequency | 2.50 GHz |
Efficient-core Base Frequency | 1.80 GHz |
Cache | 24 MB Intel® Smart Cache |
Total L2 Cache | 11.5 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 154 W |
Supplemental Information | |
Embedded Options Available | Yes |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
ECC Memory Supported | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.55 GHz |
Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3.0 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0xA780 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
TJUNCTION | 100°C |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | No |
Intel® Turbo Boost Technology ‡ | 2.0 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology ‡ | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Stable IT Platform Program (SIPP) | Yes |
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |

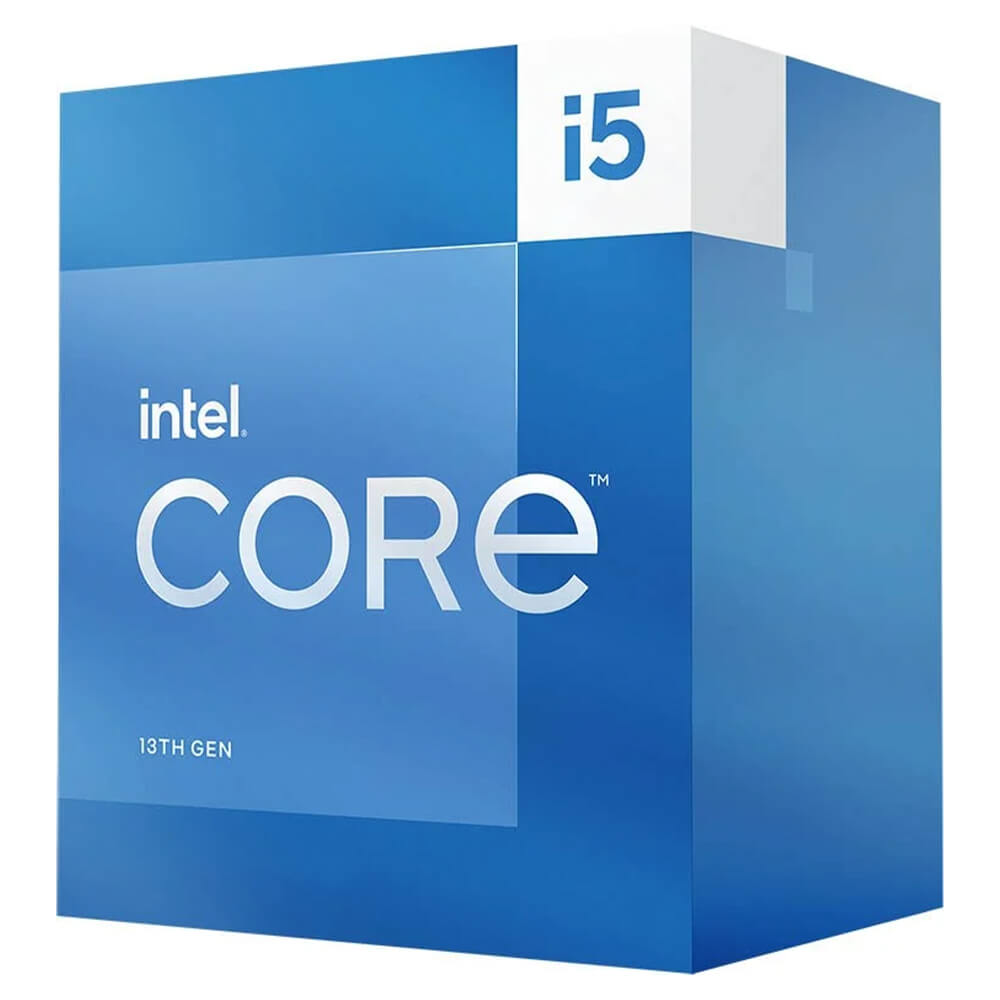

Intel Core i5-13500 – 14C/20T – 24MB Cache – Upto 4.80 GHz ( Hàng Nhập Khẩu )
New
Giá Tân Doanh:5,590,000₫
Giá Thường:6,200,000₫
Tiết Kiệm: 610,000₫ (10%)
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Thương hiệu: Intel
