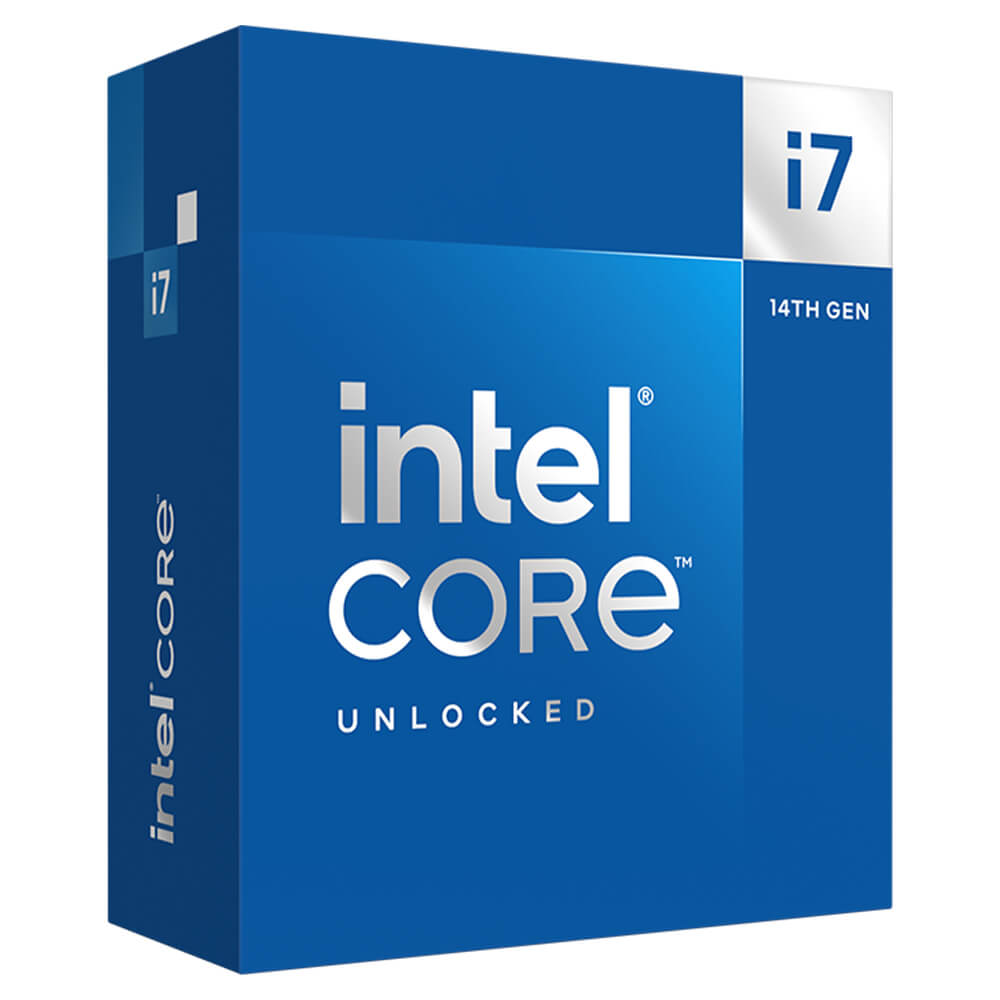

- Intel Core i7 Gen 14 năm nay được nâng cấp kha khá với thêm 4 nhân E-Core và thêm 4 luồng xử lý giúp hiệu năng tổng thể tăng hơn so với thế hệ trước.
- Vì thế Cấu hình CPU Intel i7 Gen 14 sẽ là 20 nhân và 28 luồng xử lý ( 8 Pcores và 12 Ecores ) cùng bộ nhớ đệm Intel® Smart Cache nâng cấp lên 33MB.
- Đồng thời xung nhịp cũng được tăng làm hiệu năng tổng thể ở các tác vụ đa luồng tăng gần 20% so với thế hệ trước.
- Tuy tăng hiệu năng kha khá nhưng theo công bố từ chính trang chủ Intel thì công suất tối đa vẫn giữ nguyên ở 253W, rất dễ cho người dùng lựa chọn tản nhiệt.
Essentials | |
Product Collection | Intel® Core™ i7 Processors (14th gen) |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i7-14700K |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 20 |
# of Performance-cores | 8 |
# of Efficient-cores | 12 |
Total Threads | 28 |
Max Turbo Frequency | 5.6 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.6 GHz |
Performance-core Max Turbo Frequency | 5.5 GHz |
Efficient-core Max Turbo Frequency | 4.3 GHz |
Performance-core Base Frequency | 3.4 GHz |
Efficient-core Base Frequency | 2.5 GHz |
Cache | 33 MB Intel® Smart Cache |
Total L2 Cache | 28 MB |
Processor Base Power | 125 W |
Maximum Turbo Power | 253 W |
Supplemental Information | |
Status | Launched |
Launch Date | Q4’23 |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 192 GB |
Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
ECC Memory Supported | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.60 GHz |
Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3.0 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0xA780 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
TJUNCTION | 100°C |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | No |
Intel® Turbo Boost Technology ‡ | 2.0 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology ‡ | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Stable IT Platform Program (SIPP) | Yes |
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
