| PROCESSOR |
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports Socket AM4
- Please go to msi.com to get the newest support status as new processors are released.
|
| CHIPSET |
AMD X570 Chipset |
| MEMORY |
- 4x DDR4 memory slots, support up to 128GB
- Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Max overclocking frequency by A-XMP OC mode:
- For Ryzen™ 5000 G-Series & 4000 G-Series processors
- 1DPC 1R Max speed up to 5100 MHz
- 1DPC 2R Max speed up to 4000 MHz
- 2DPC 1R Max speed up to 4266 MHz
- 2DPC 2R Max speed up to 3600 MHz
- For Ryzen™ 5000 Series & 3000 Series processors
- 1DPC 1R Max speed up to 5100 MHz
- 1DPC 2R Max speed up to 3866 MHz
- 2DPC 1R Max speed up to 4000 MHz
- 2DPC 2R Max speed up to 3600 MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
|
| EXPANSION SLOT |
- Supports PCIe 4.0 / PCIe 3.0 specification
- PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
- 1x PCIe x16 slot (From processor)
- PCI_E1 supports PCIe 4.0/ 3.0 x16
- 1x PCIe x16 slot (From X570 chipset)
- PCI_E3 supports PCIe 4.0/ 3.0 x4
- 2x PCIe 3.0 x1 slots (From X570 chipset)
|
| MULTI-GPU |
- Supports AMD CrossFire™ Technology
|
| ONBOARD GRAPHICS |
- 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
|
| STORAGE |
- 6x SATA 6Gb/s ports (from AMD X570 Chipset)
- 2x M.2 slots (Key M)
- Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
- Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
- Supports up to SATA 6Gb/s
- M2_1 slot (from Processor)
- Support 2280/22110 storage devices
- M2_2 slot (from AMD X570 Chipset)
- Supports 2242/ 2260/ 2280 storage device
|
| RAID |
- Supports RAID 0, RAID 1 and RAID 10
|
| USB |
AMD X570 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
- 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| AUDIO |
Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN |
- 1x Realtek® 8125B 2.5Gbps LAN Controller
- 1x Realtek® RTL8111H 1Gbps LAN Controller
|
| INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Serial port connector
- 1x Chassis Intrusion connector
|
| LED FEATURE |
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
- 1X EZ LED Control switch
|

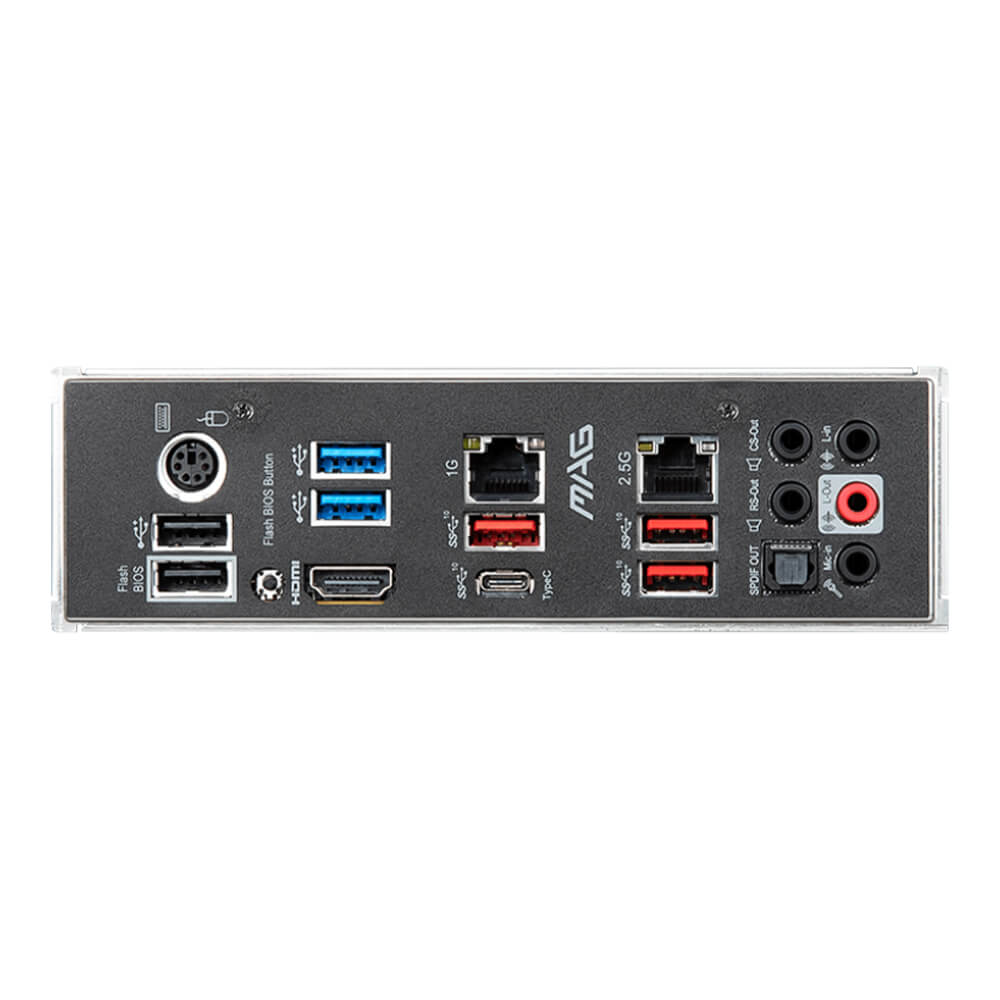

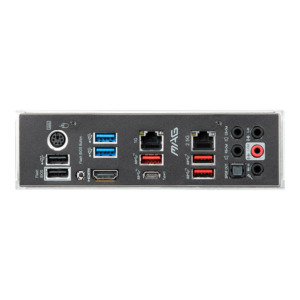

| BACK PANEL PORTS |
- PS/2 Mouse / Keyboard
- USB 3.2 Gen 1 5Gbps (Type-A)
- Gigabit LAN Port
- 2.5G LAN Port
- HD Audio Connectors
- USB 2.0 Port
- Flash BIOS Button
- HDMI™ 2.1 Port
- USB 3.2 Gen 2 10Gbps (Type-C)
- USB 3.2 Gen 2 10Gbps (Type-A)
- Optical S/PDIF OUT
|
| DIMENSIONS |
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
| OPERATING SYSTEM |
Support for Windows® 10 64-bit |
|
|
 |
