CPU SUPPORT | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
CHIPSET | Intel® Z890 Chipset |
MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/sSupports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches. |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz** Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4 • PCI_E2 support manual BIOS adjustment to X4+X4 * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device. |
AUDIO | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
STORAGE | 5x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G (Qty)* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** Please refer to the manual for M.2 SSD heatsink restrictions. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
ONBOARD THUNDERBOLT | 2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display |
USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit. |
LAN | 1x Marvell® AQC113CS 10Gbps LAN |
WIFI & BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
INTERNAL I/O | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
LED FEATURE | 4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ LED Control switch |

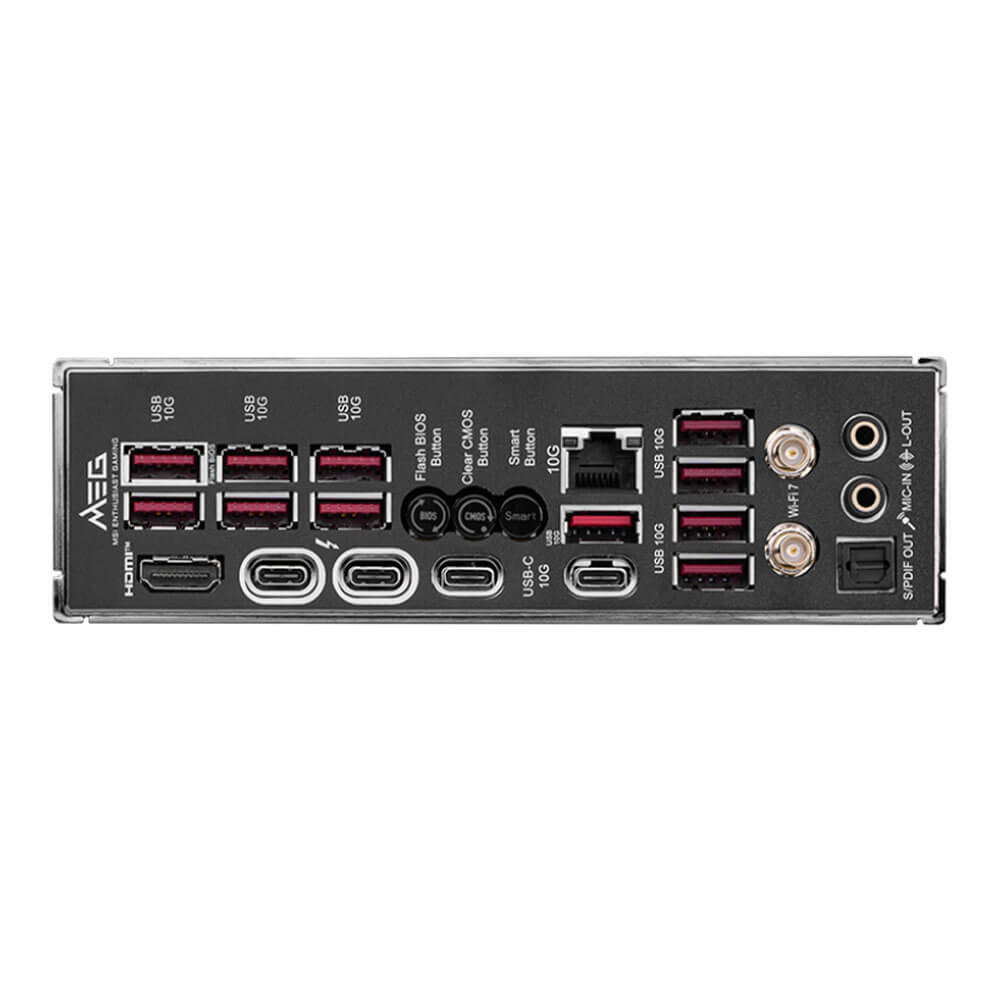

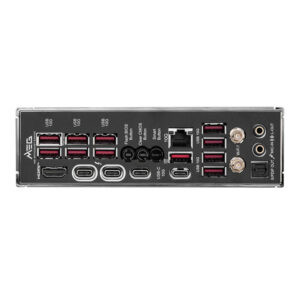

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit |

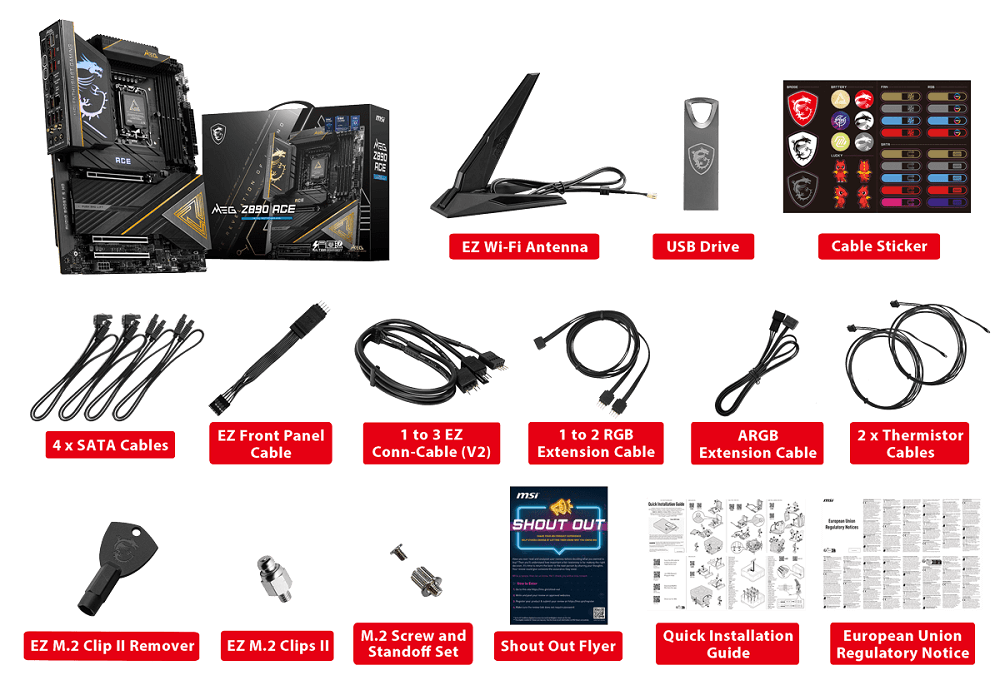

BOX CONTENT | |
PCB DIMENSION | ATX 243.84mmx304.8mm |

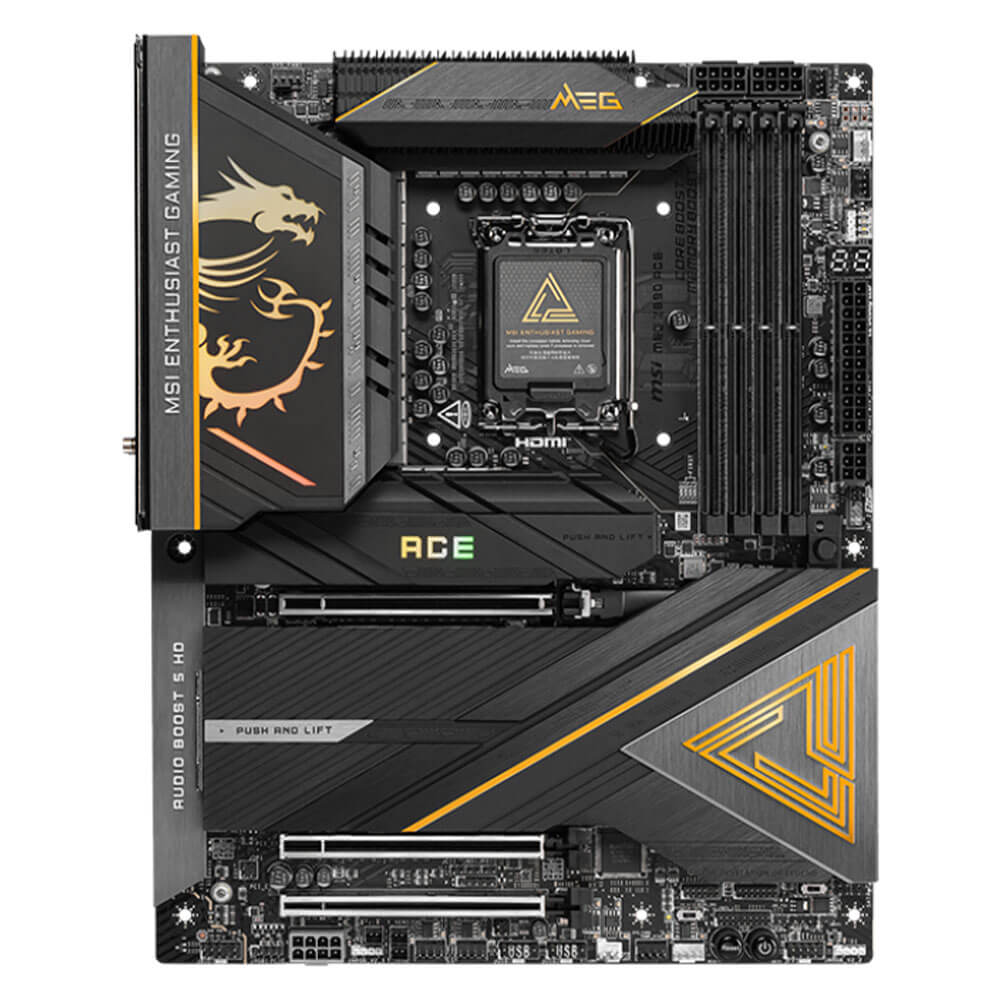

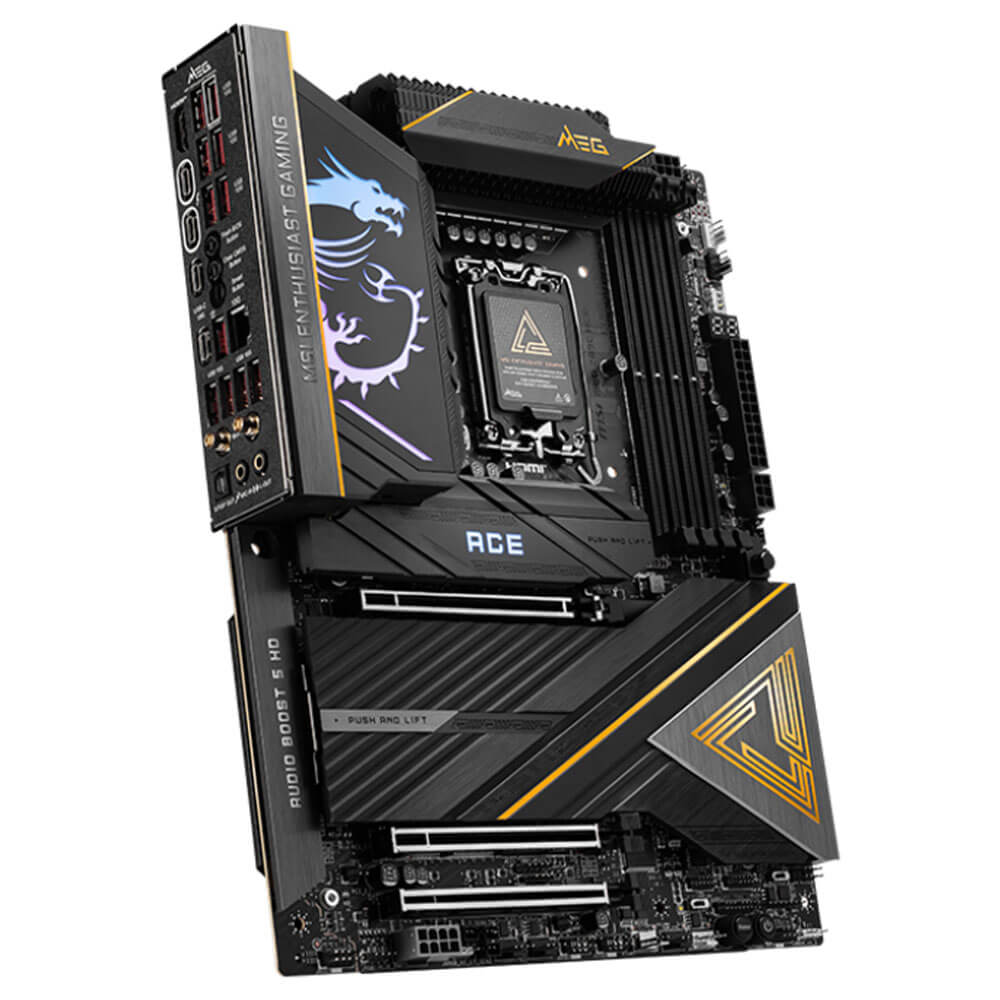

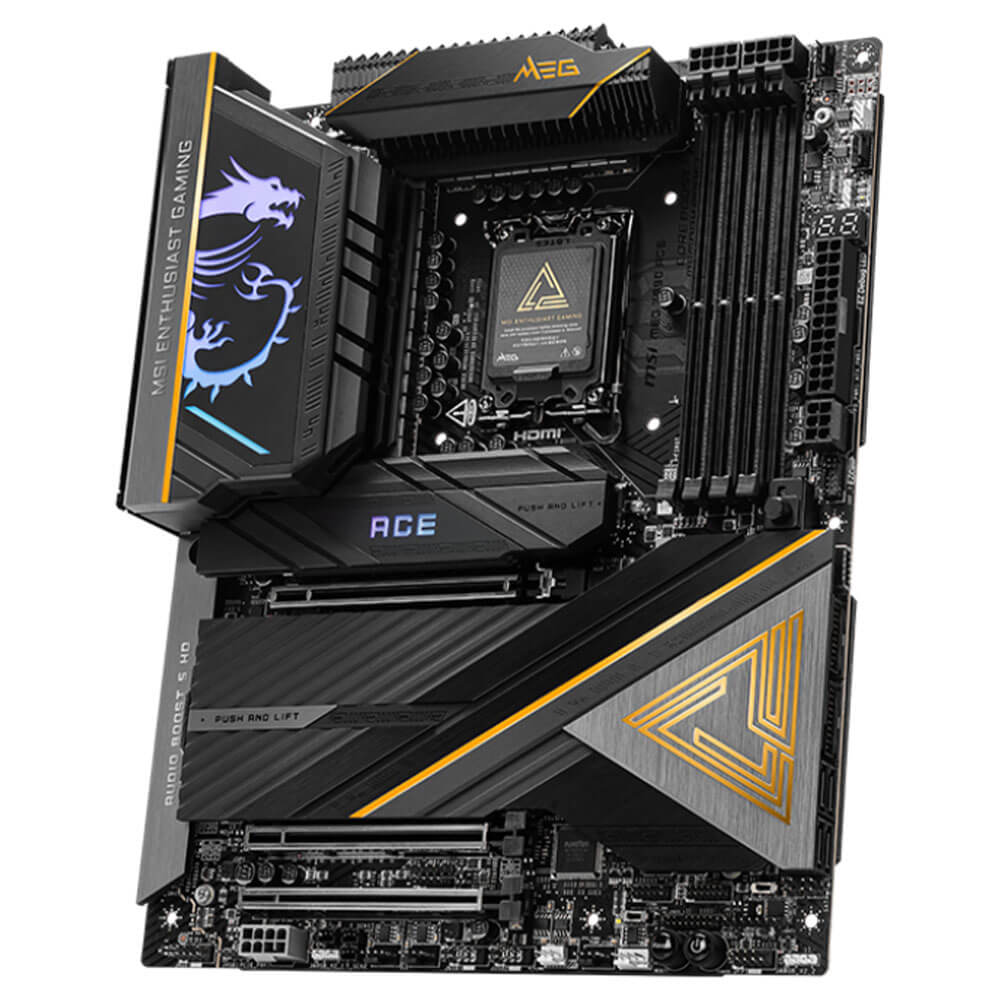

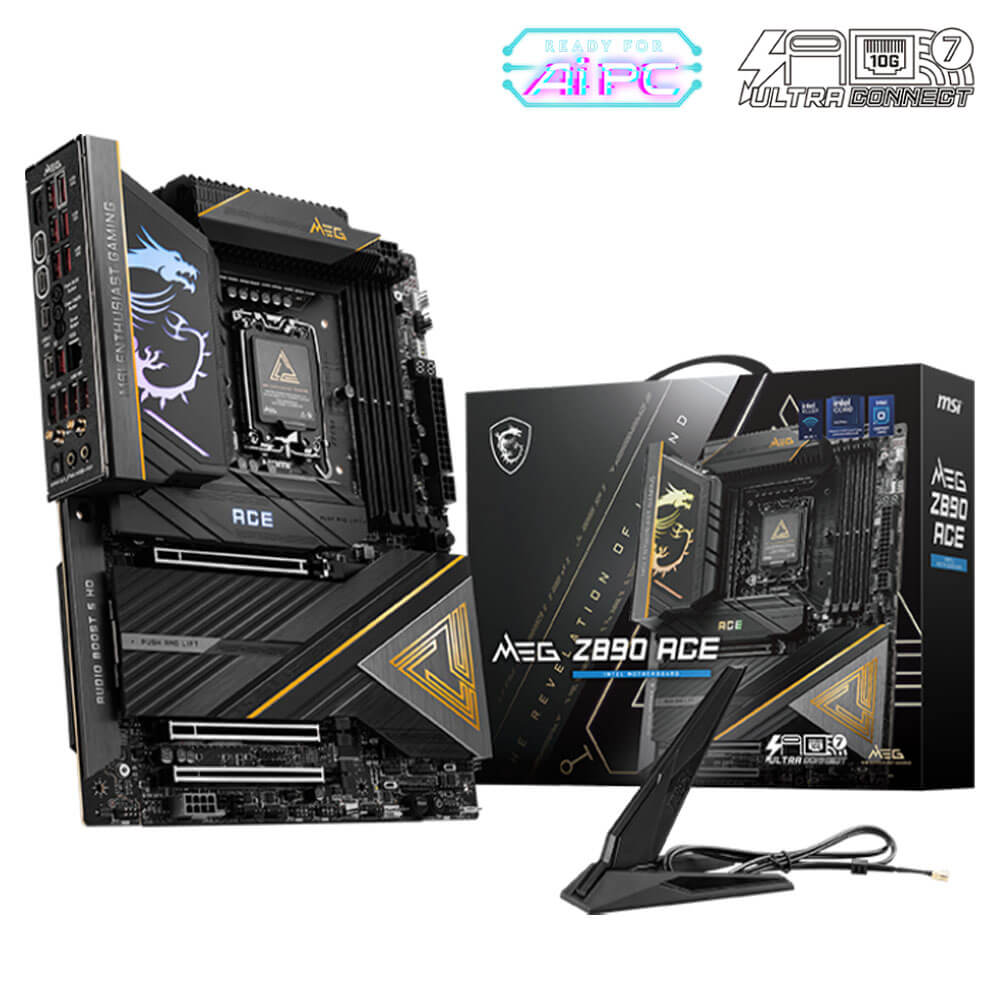

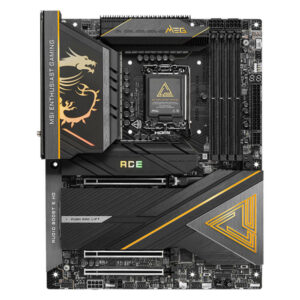

MSI MEG Z890 ACE – Socket 1851
Giá Tân Doanh:21,200,000₫
Giá Thường:22,590,000₫
Tiết Kiệm: 1,390,000₫ (6%)
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: MSI
- Giá trên đã bao gồm VAT.
