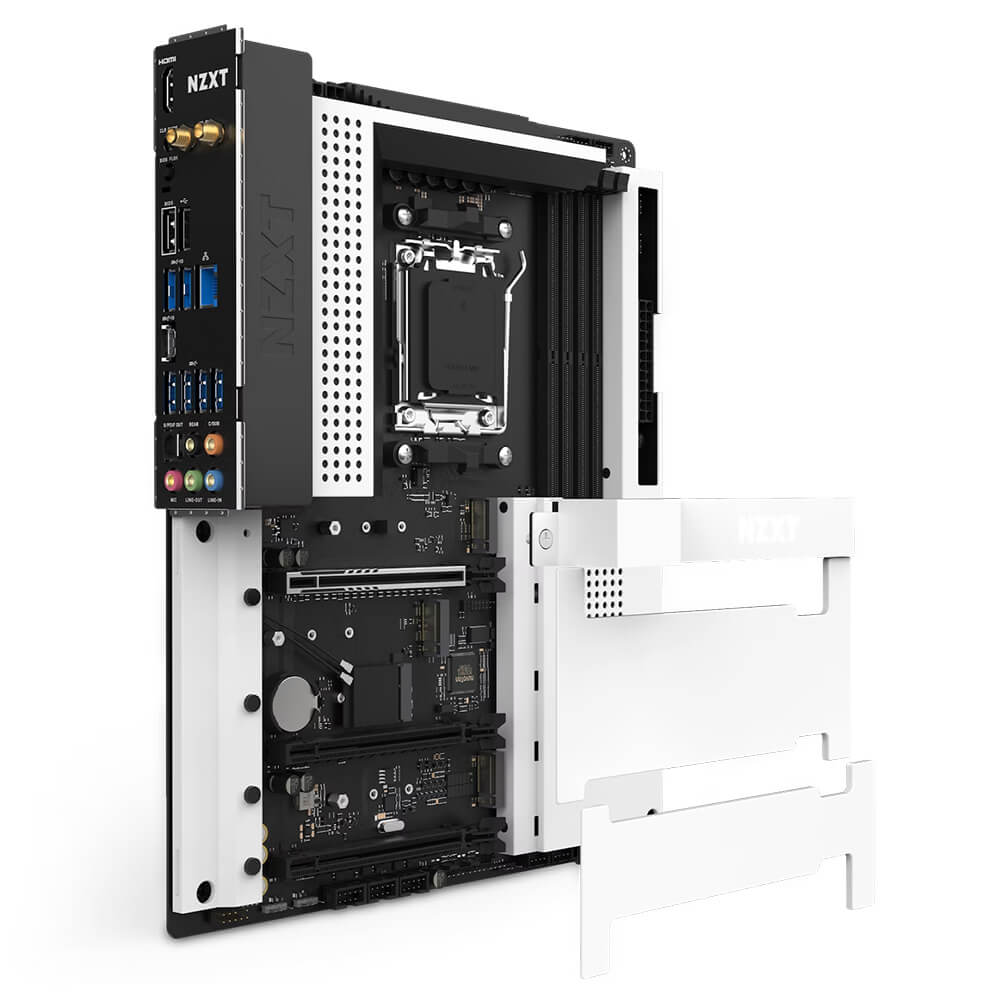

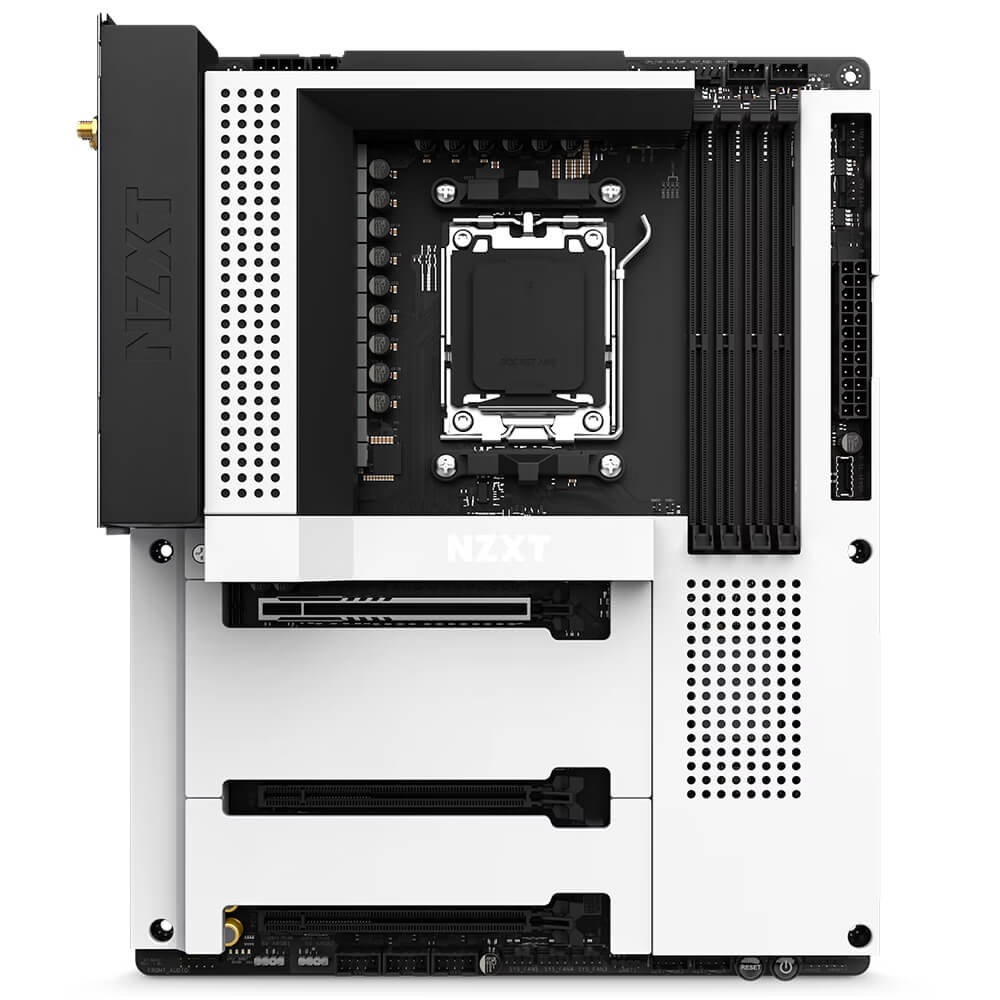

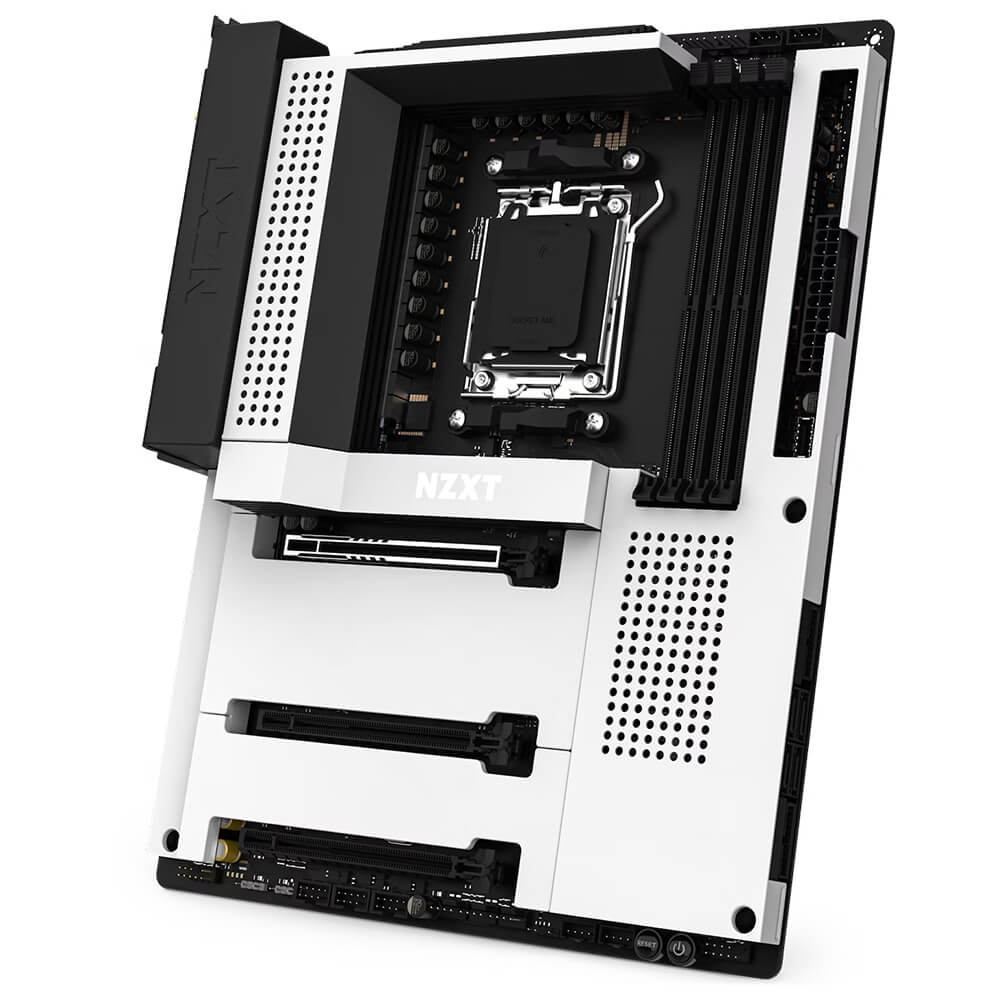

NZXT N7 B650E WHITE – Socket AM5

Max Memory Support:128GB

Memory Architecture:Dual-Channel

OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.

Extreme Memory Profile (XMP):Supported

EXTended Profiles for Overclocking (EXPO):Supported

PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks)

M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1

HDMI 2.1 TMD Compatible:1

HDR:Supported

HDCP 2.3:max. resolution up to 4K 60Hz

M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1

M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1

SATA 6Gb/s ports:4

RAID 0/1/10 for SATA storage devices:Supported

RAID 0/1/10 for M.2 NVMe storage devices:Supported

NVMe SSD as boot disks:Supported

Bluetooth:V5.2

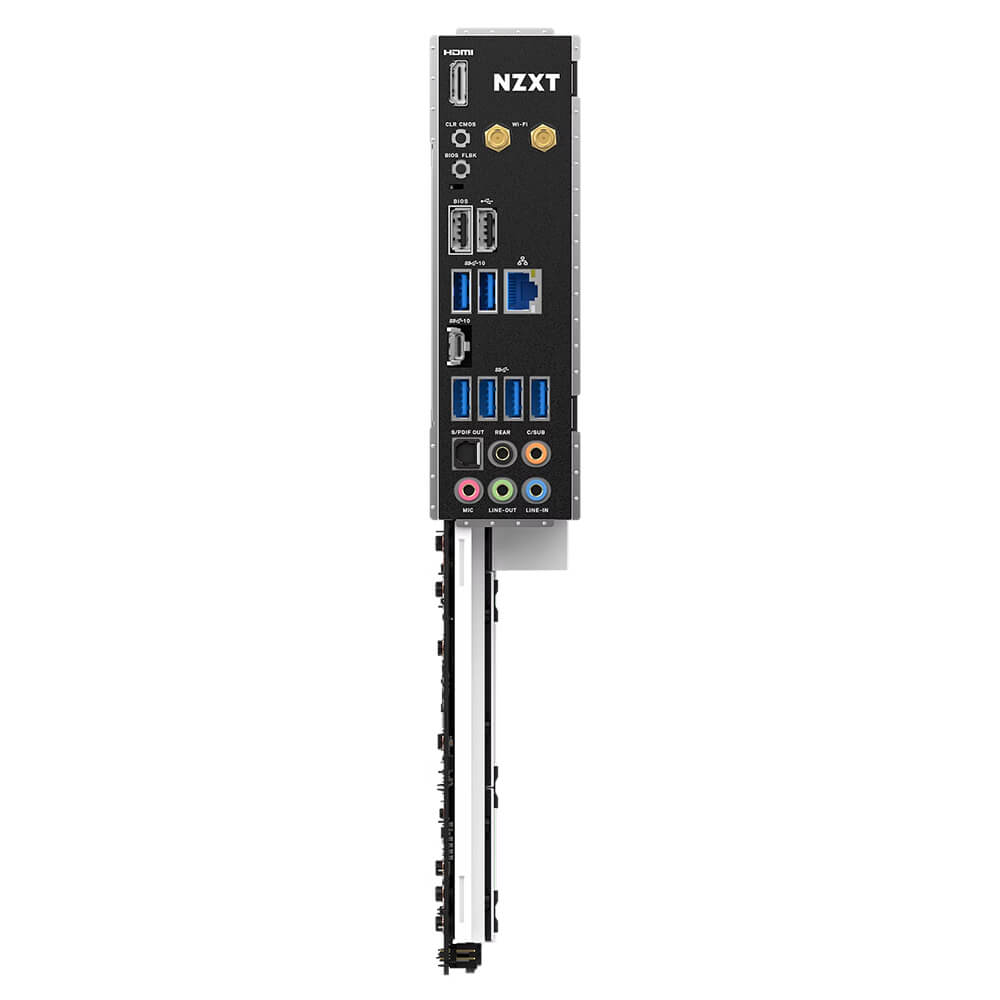

HDMI™ port:1

USB 2.0:2

USB 3.2 Gen 2 Type-C port:1

USB 3.2 Gen 2 ports:2

USB 3.2 Gen 1 ports:4

Clear CMOS button:1

BIOS Flashback button:1

LAN (RJ45) port:1

Audio jacks:5

Optical S/PDIF Out port:1

8+4-pin ATX 12V power connector:1

4-pin CPU_FAN connector:1

4-pin AIO_PUMP connector:1

4-pin SYS_FAN connectors:5

NZXT RGB LED connectors:4

5V ARGB LED connector:2

USB 2.0 header (Up to 6 USB 2.0 ports):3

USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2

USB 3.2 Gen2x2 front panel header (For USB Type-C):1

Front panel audio connector:1

Power button:1

Reset button:1

POST LEDs:4

Form Factor:ATX

Warranty:3 years

Certifications:FCC, CE, WHQL, ErP/EuP Ready

Model Number:N7-B65XT-W1 (White)

UPC:810074842877 (White)

EAN:5056547202815 (White)
