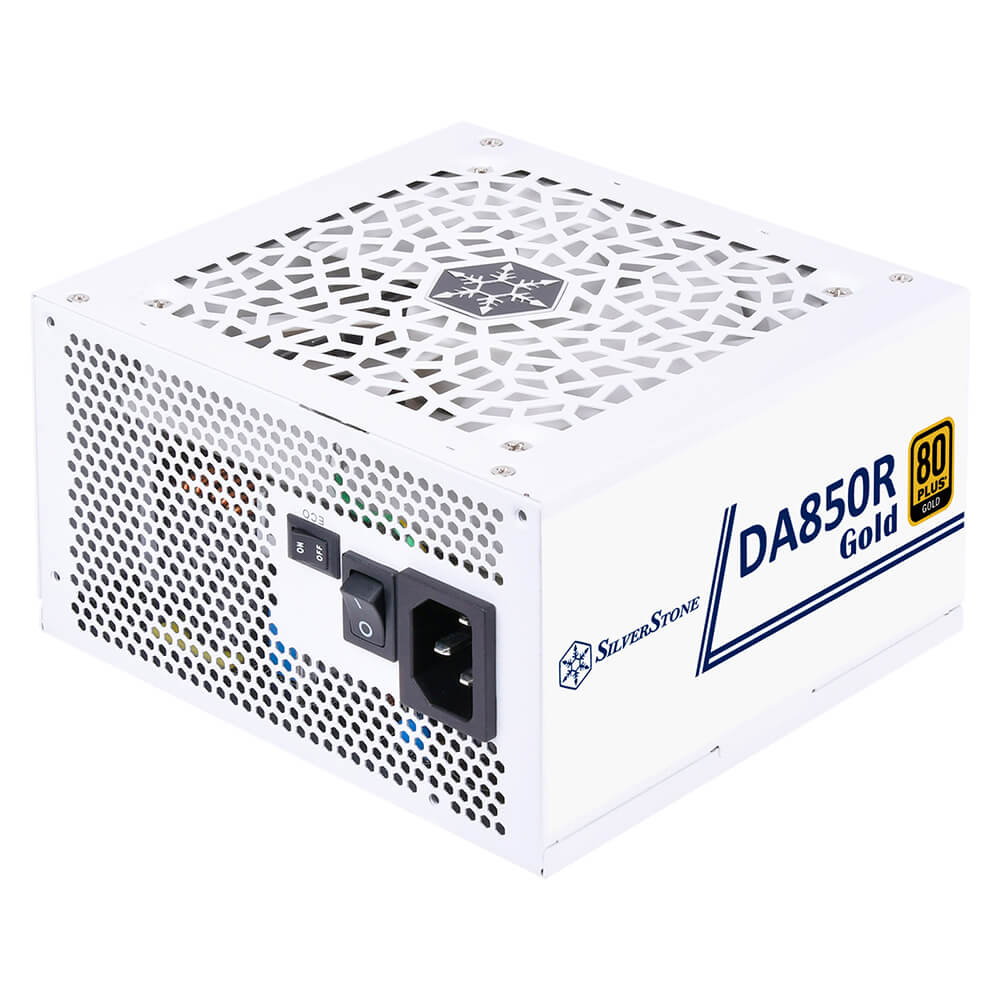

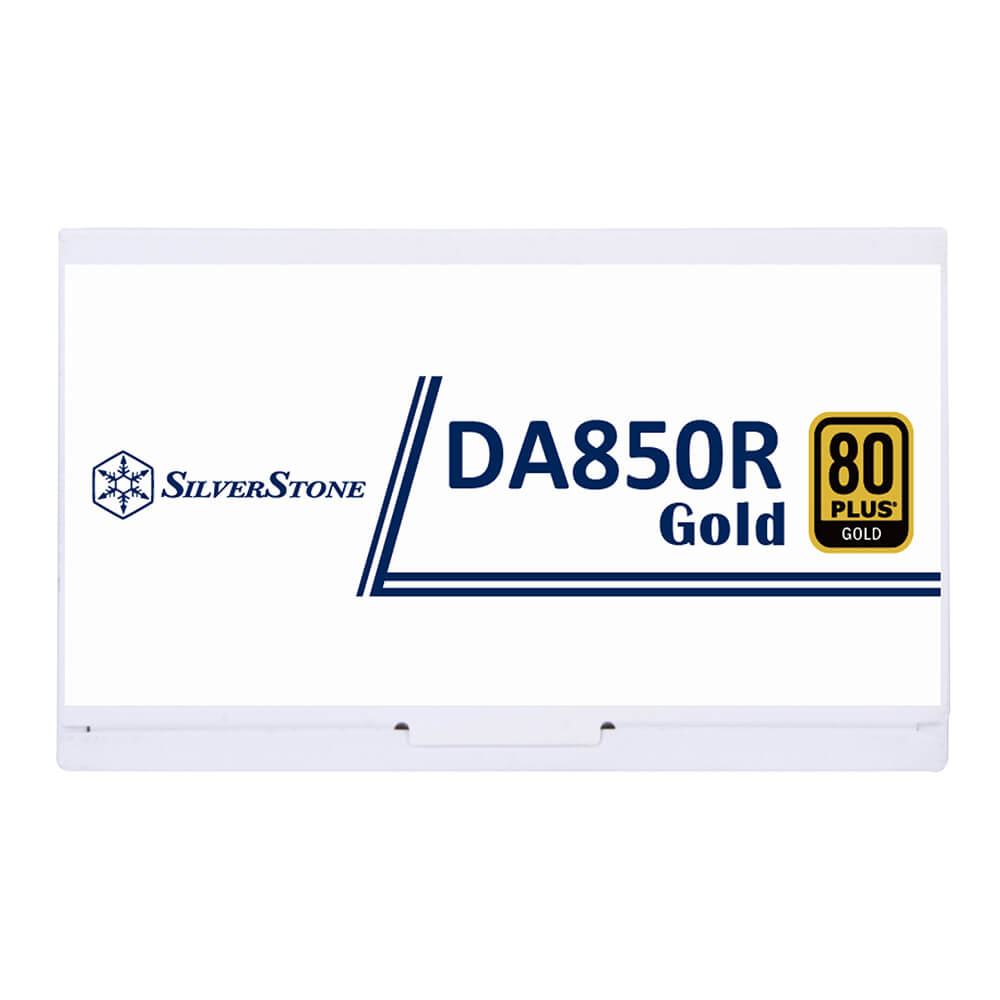

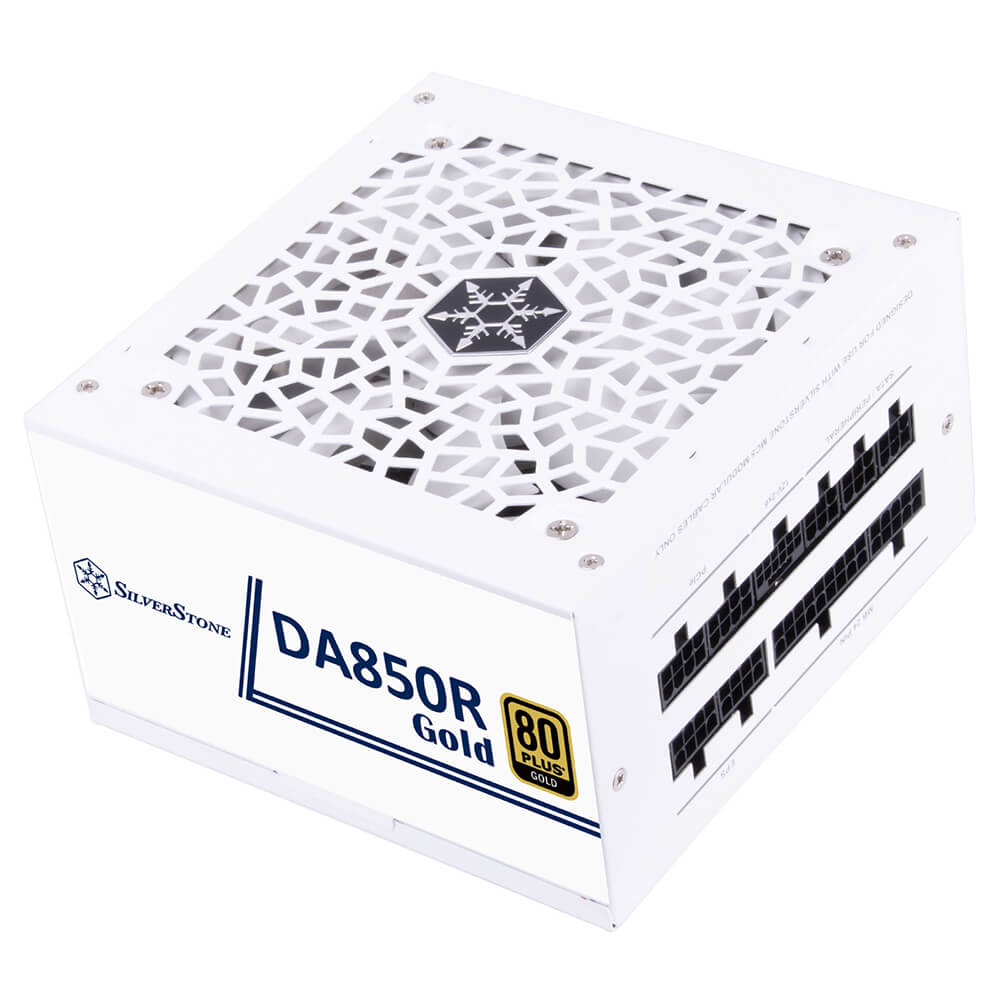

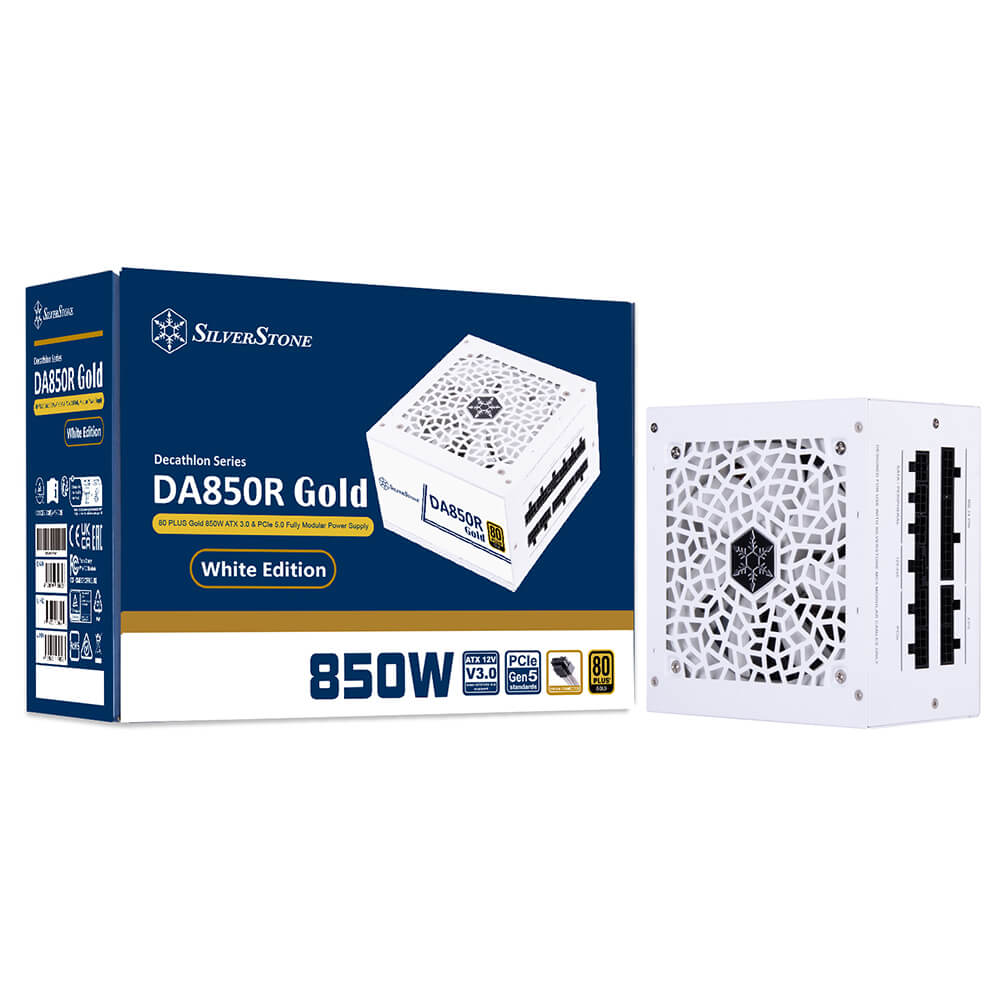

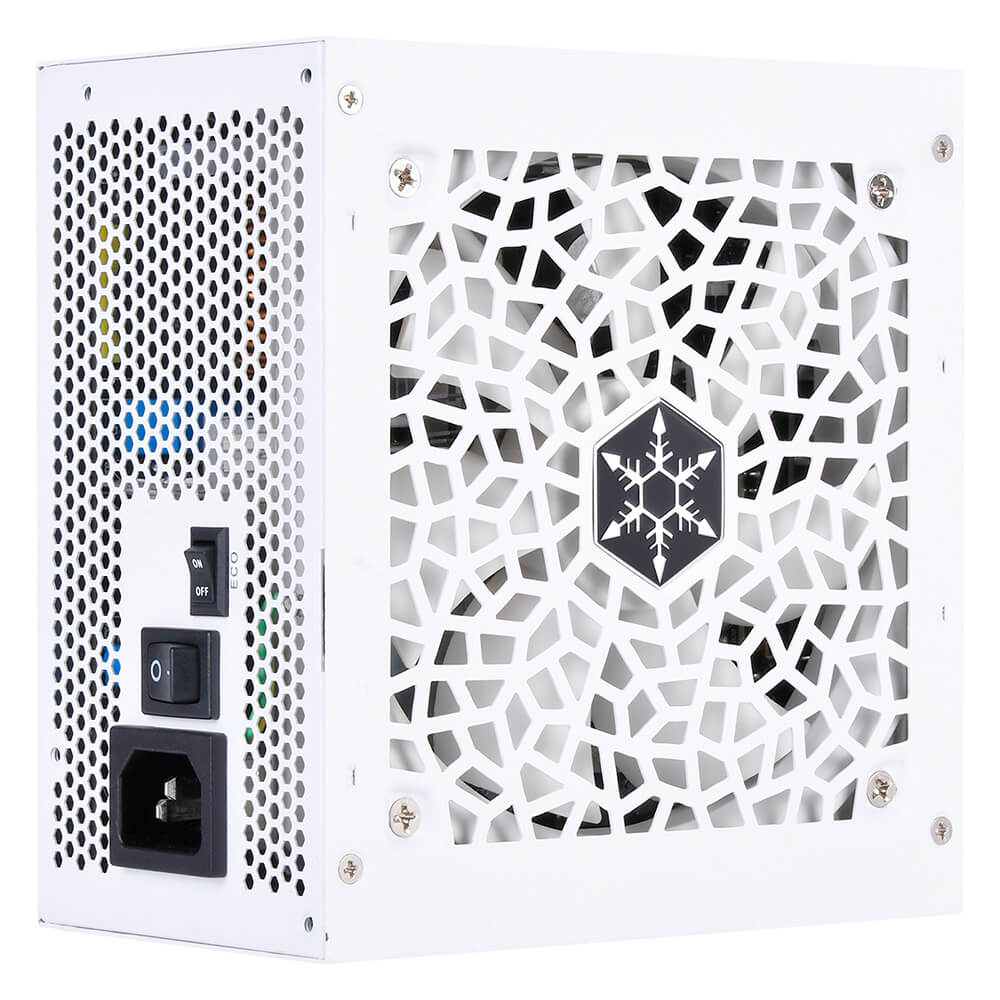

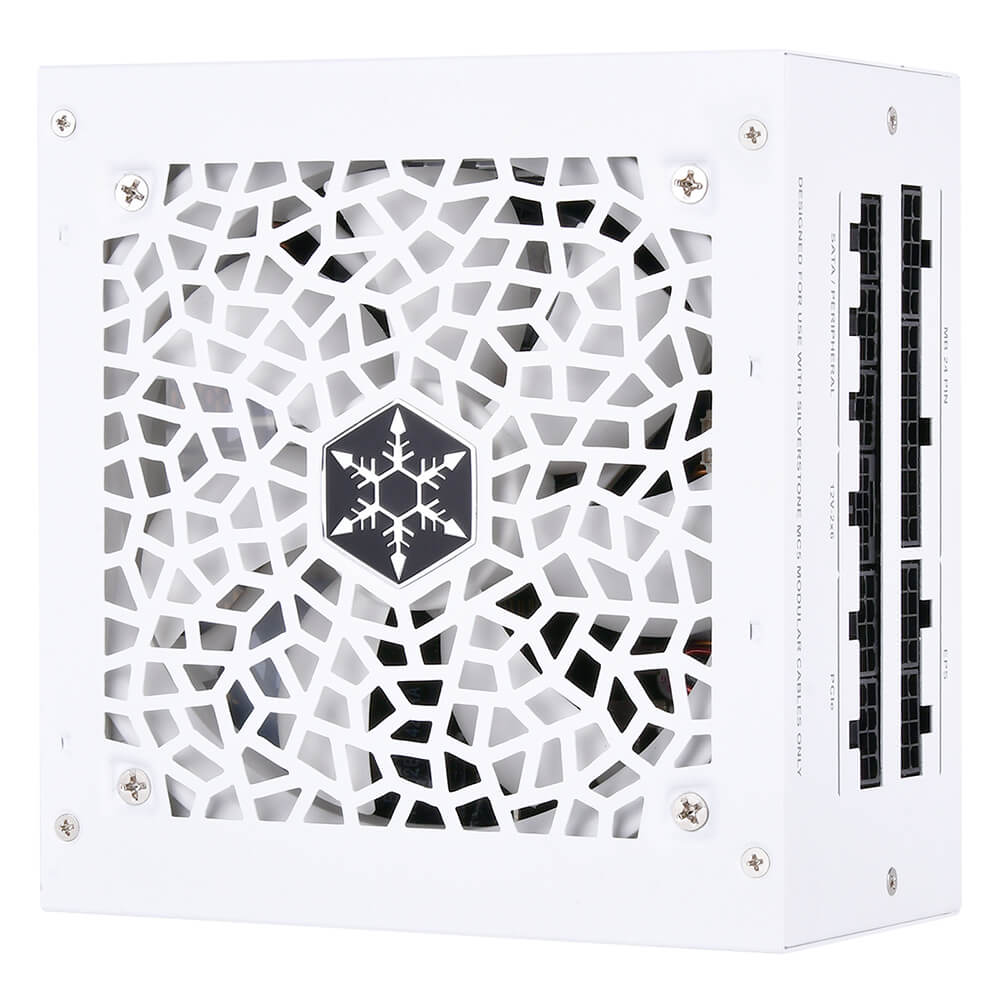

SilverStone DA850R Gold – White – 80 PLUS Gold 850W ATX3.0/3.1 & PCIe 5 Fully Modular Power Supply
Thông tin Sản Phẩm

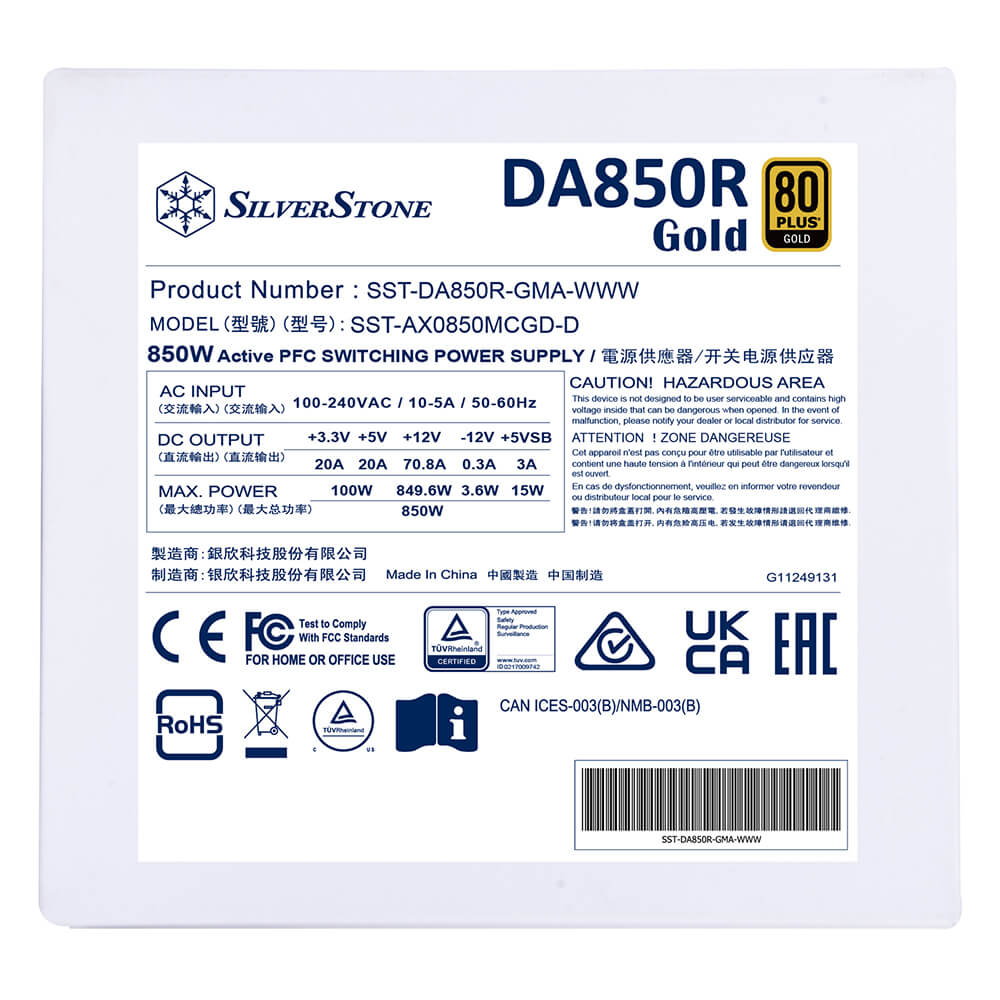

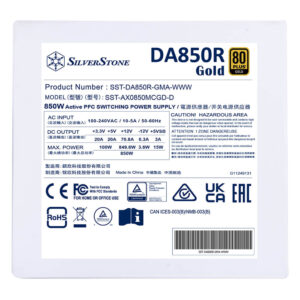

| Product No. | SST-DA850R-GMA-WWW (White) |
| Model (safety certification) | SST-AX0850MCGD-D |
| Color | White (lead-free paint) |
| Max. DC Output | 850W |
| Power density | 471W/L |
| Load Range | Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 20A 20A 70.8A 3A 0.3A Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% +5%-7% ±5% ±8% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 850W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥87% & <89% |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |

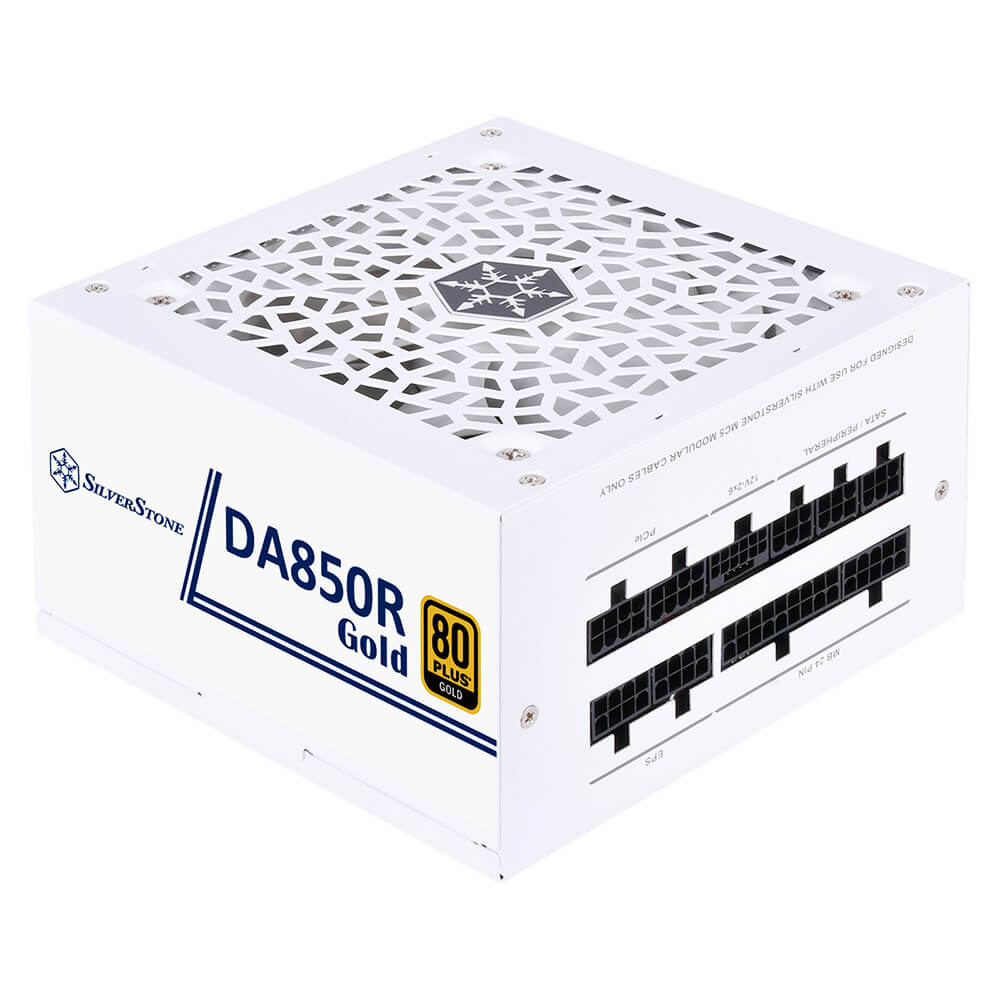

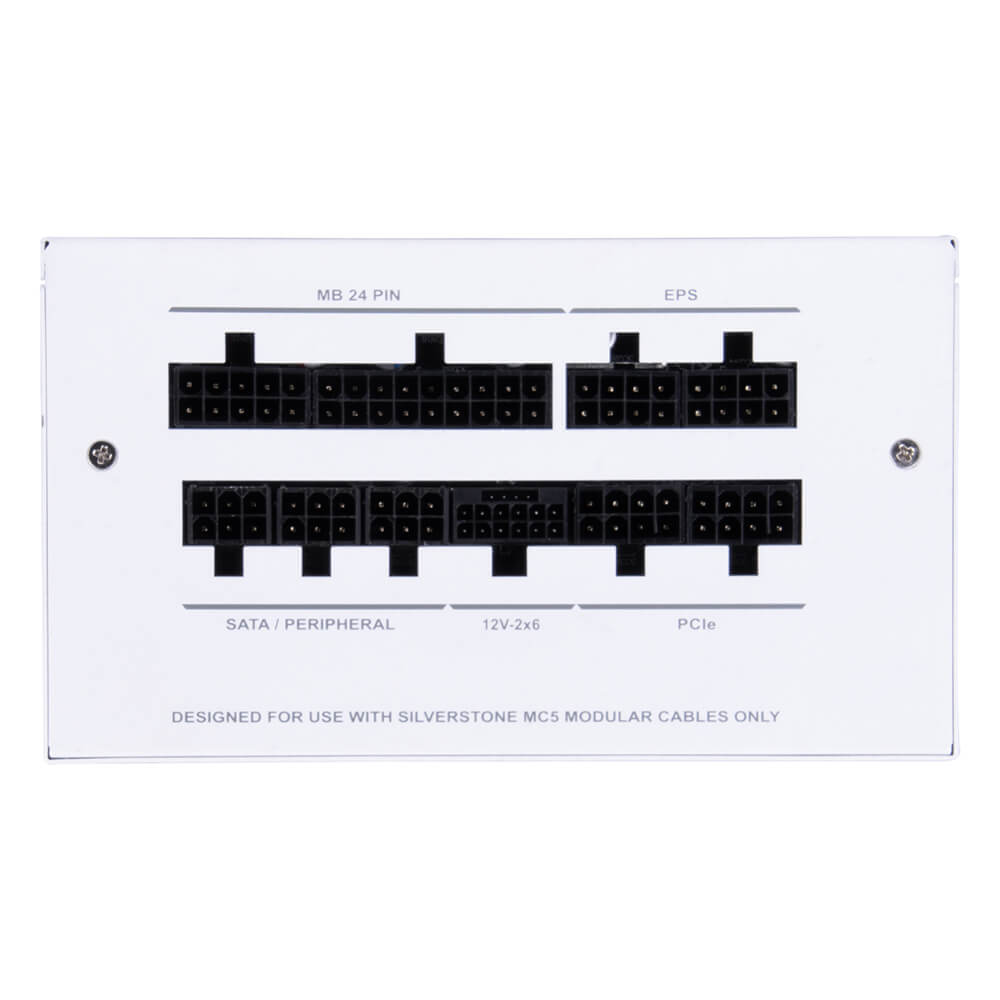

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12V-2×6 connector 8 x SATA connectors 4 x 4-Pin Peripheral connector ※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables. |

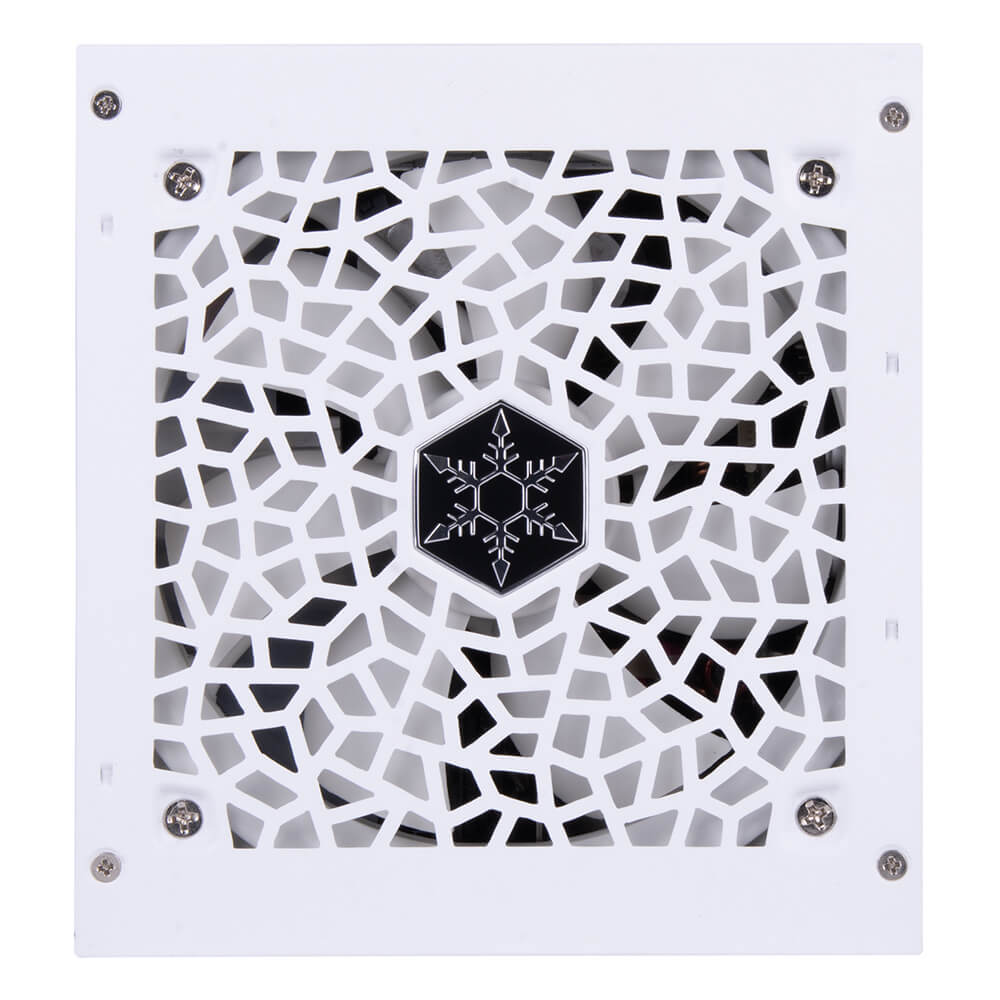

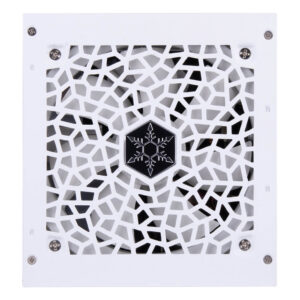

| Cooling System | Silent 120mm fan |
| Noise Level | 0 dBA minimum |
| Certification | 80 PLUS Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
| Weight | 2.13 kg |
