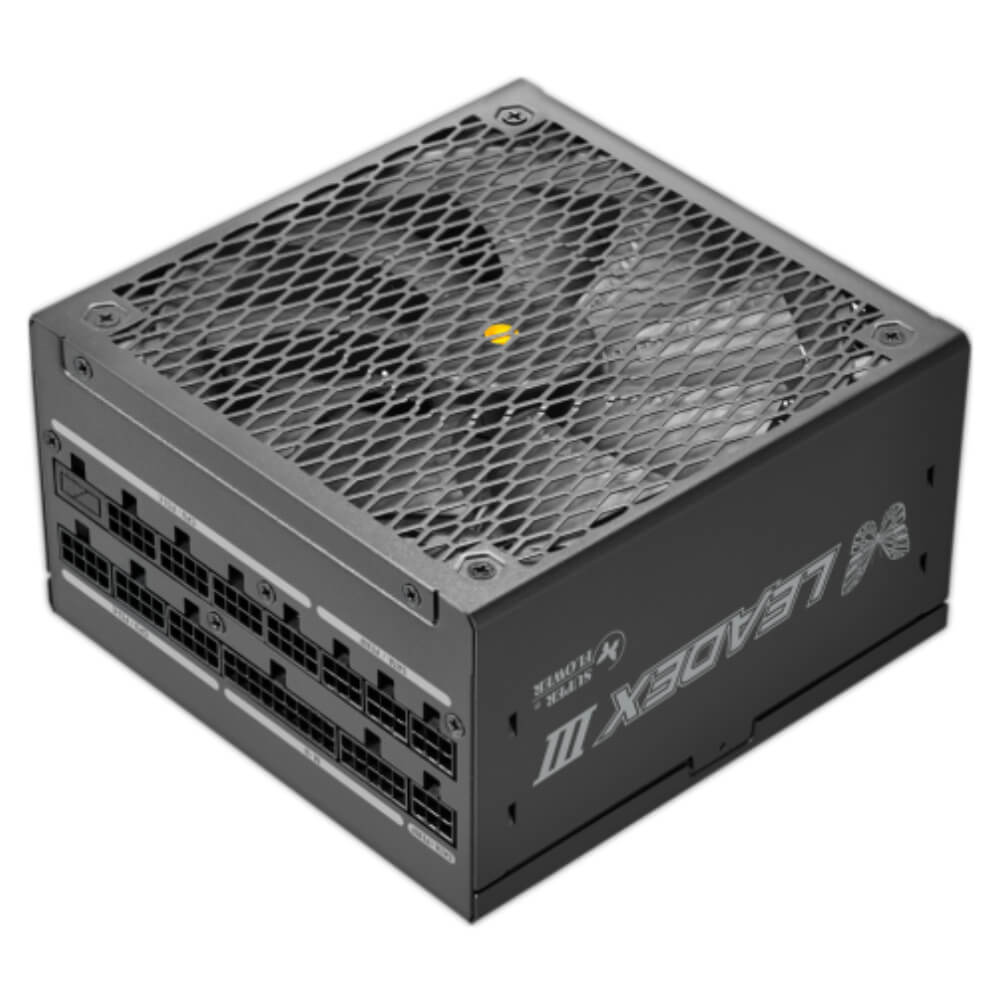

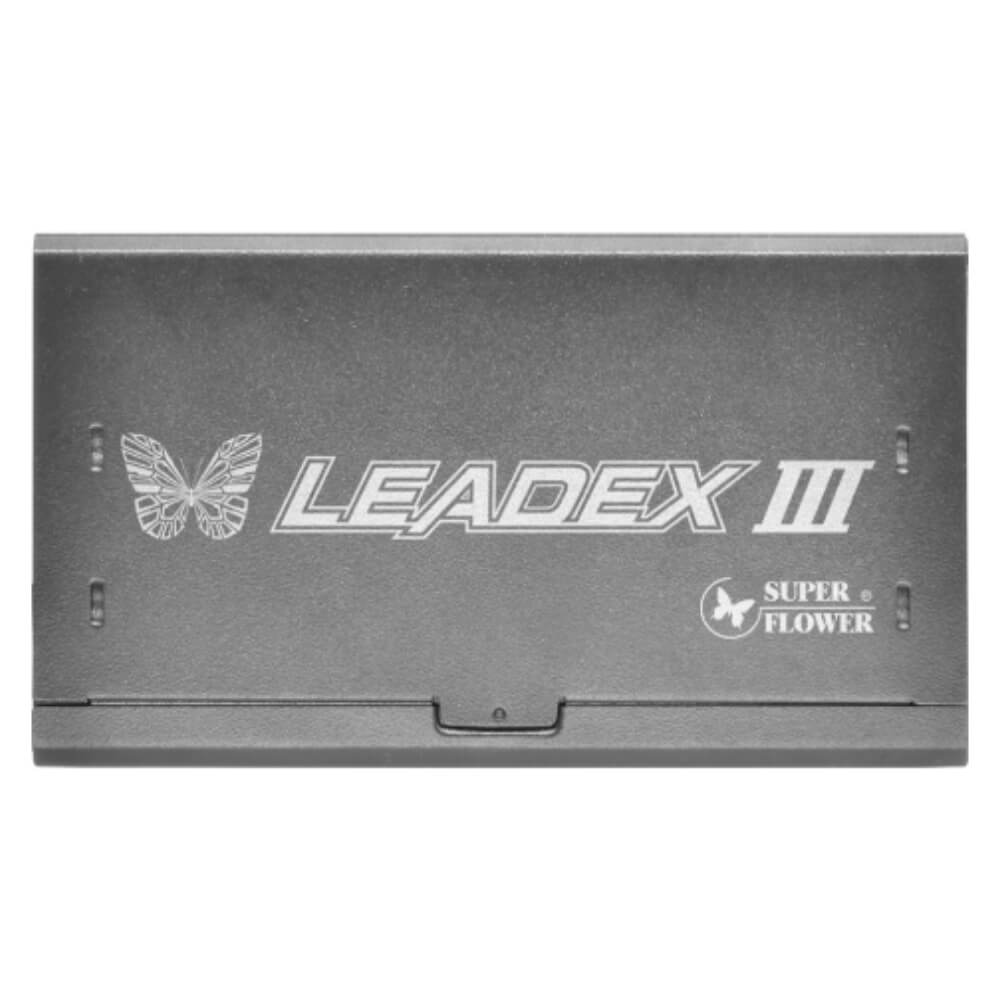

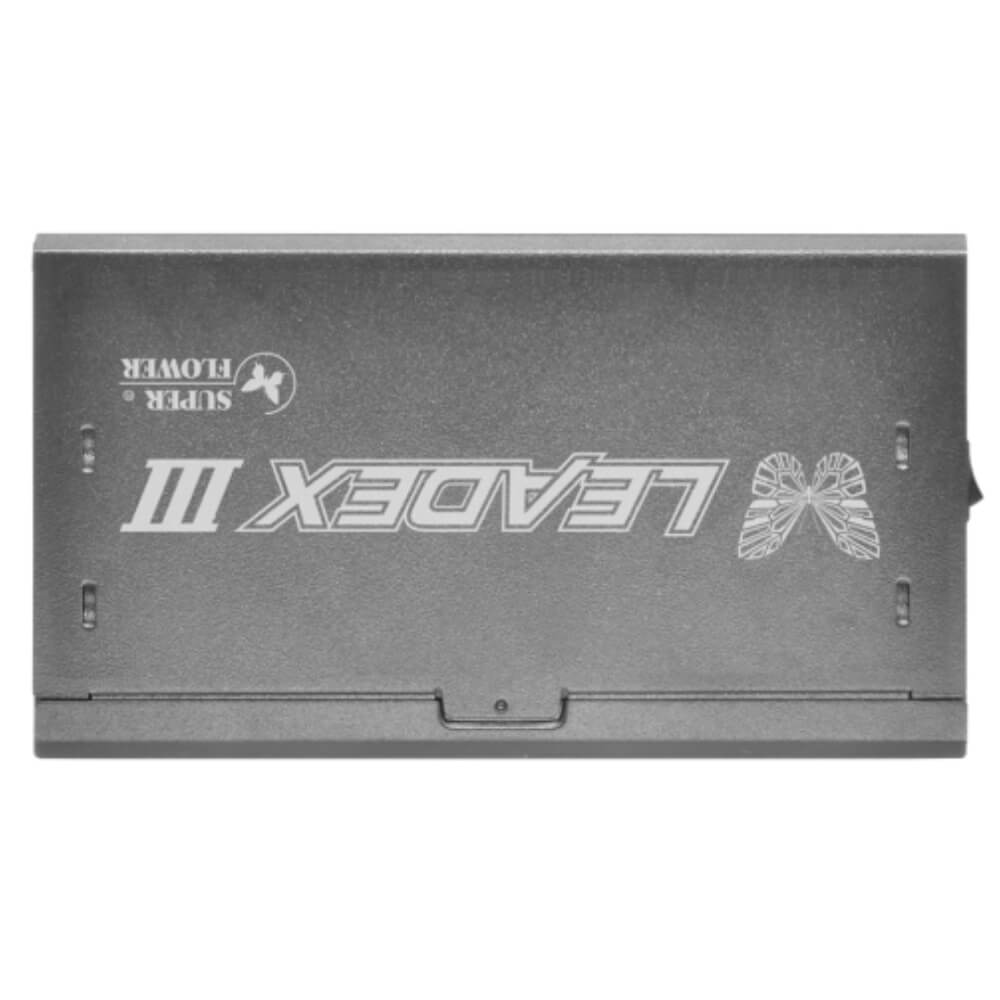

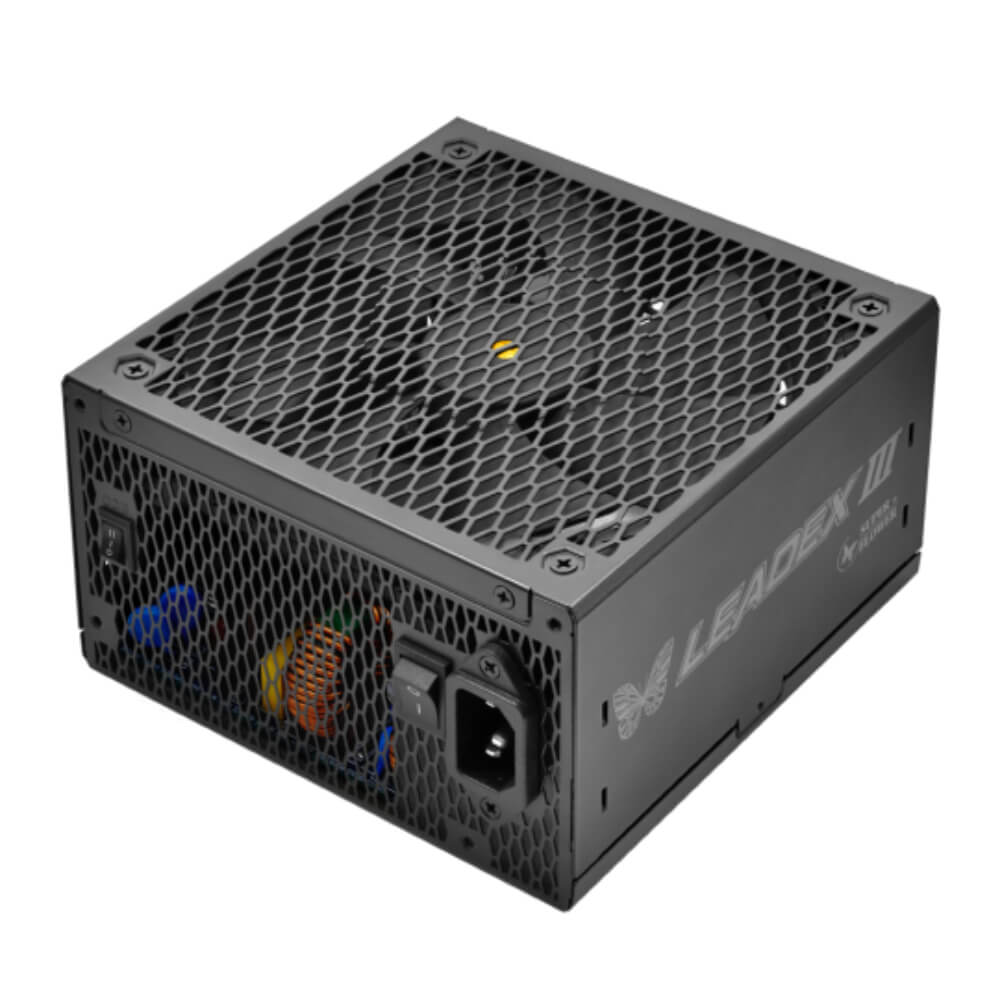

SuperFlower Leadex III 850W ATX 3.1 – 80 Plus Gold – Full Modular PSU (SF-850F14GE-GL)
Thông tin Sản Phẩm

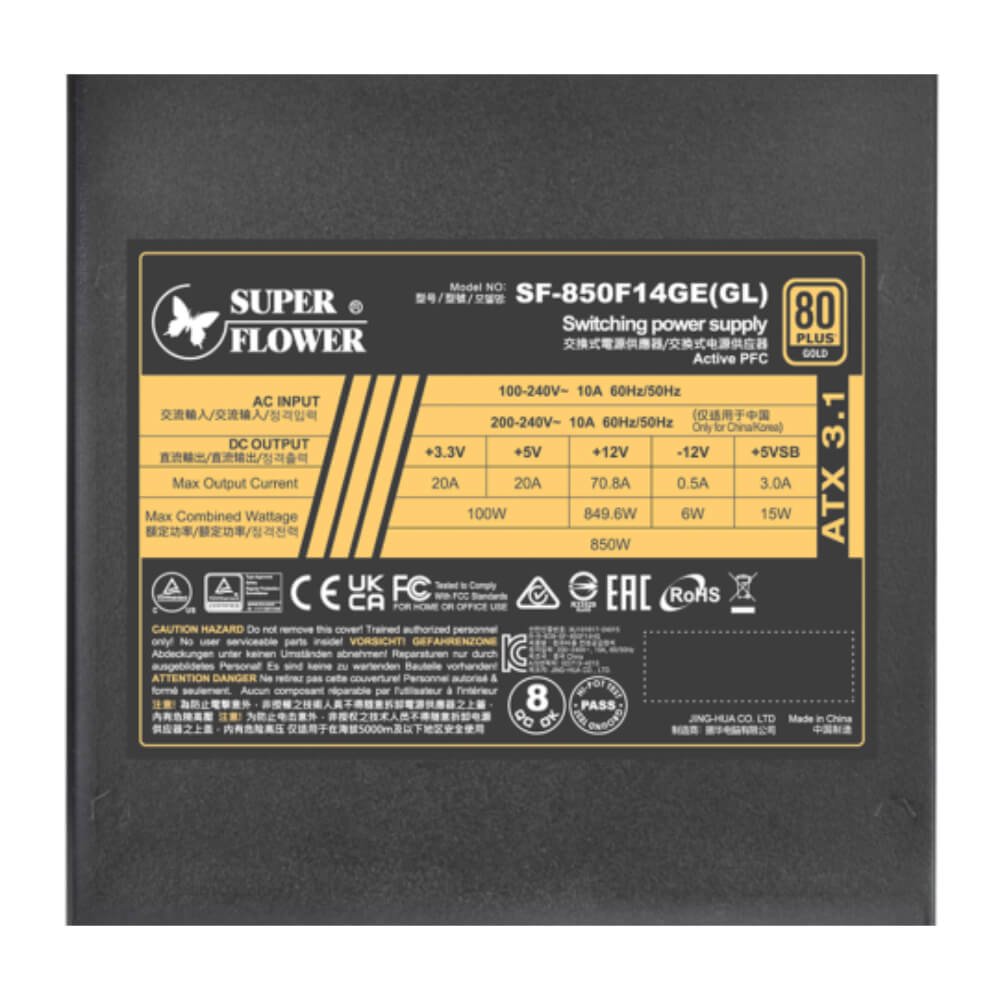

| Model | SuperFlower Leadex III 850W ATX 3.1 80 Plus Gold |
| Model No. | SF-850F14GE-GL |
| Wattage | 850W |
| 80+ Efficiency | Gold: ≥87% ~ <89% (115V) Gold: ≥89% ~ <91% (230V) |
| Intel Power Design Guide | ATX 12V v3.0 / ATX 3.1 / EPS 12V v2.92 |
| Power Excursion | Up to 200% |

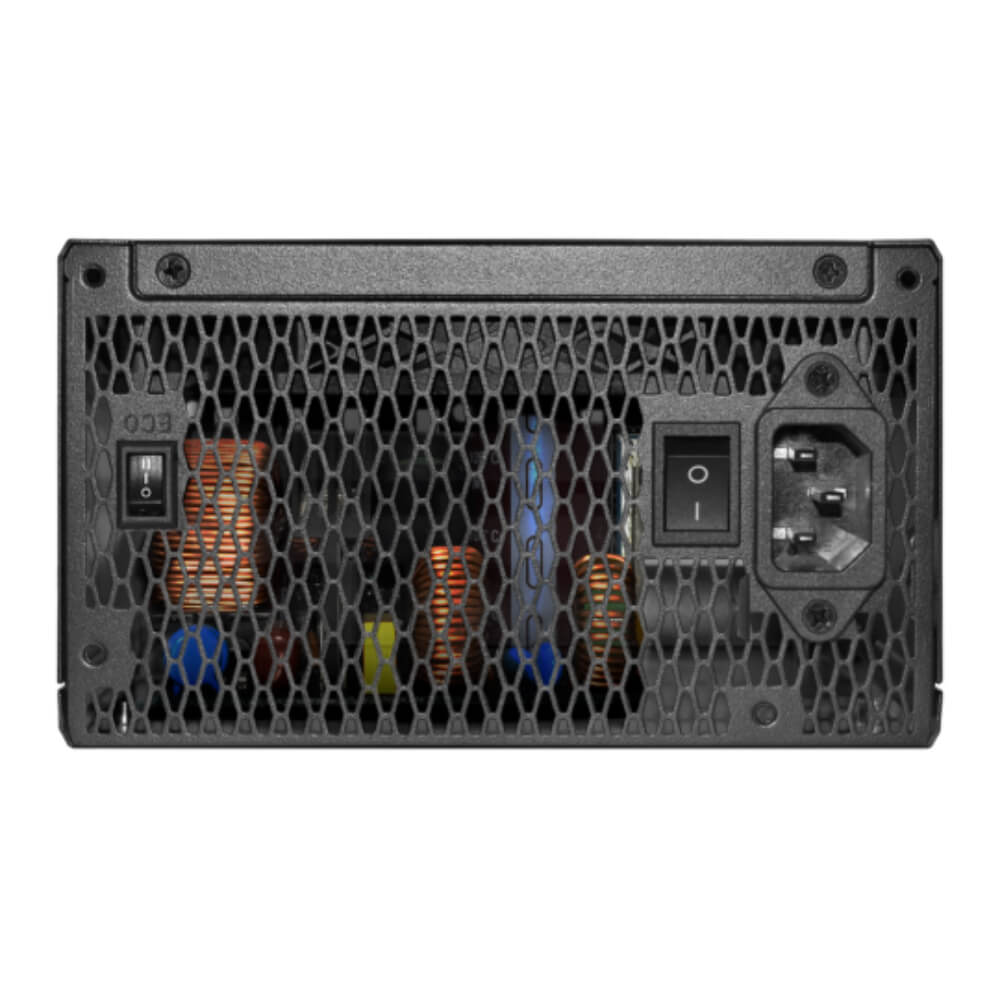

| AC Input | Frequency | 100V ~ 240V | 50 / 60Hz, Full Range APFC |
| DC Output | +12V / +5V / +3.3V stable output Low ripple on all rails High efficiency on all rails including +5VSB |

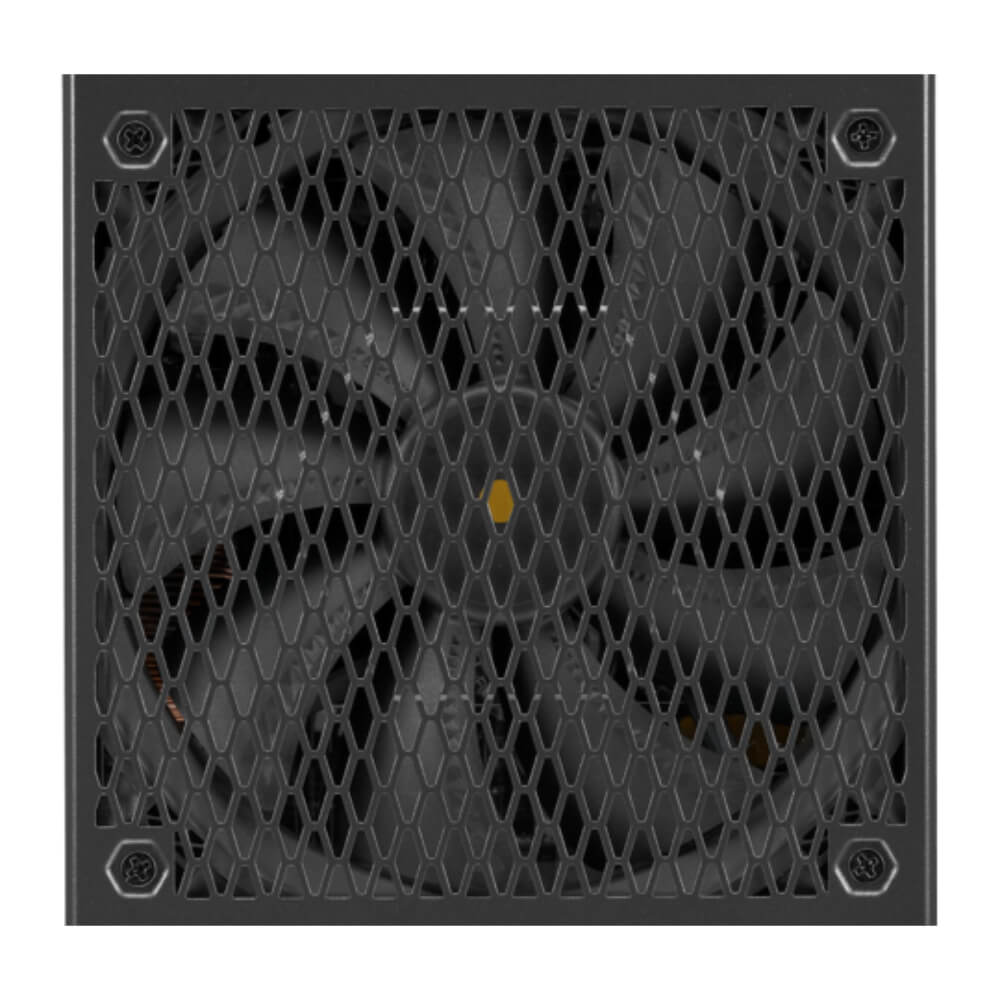

| Fan Size | 120mm Ultra Silent F.D.B. Fan 9-blade design, copper shaft bearing Auto & ECO Fan Control |
| Modular | 100% Fully Modular Ultra Flexible Braided Texture Ribbon Cables |
| Super Connector | Dual Patented 9-Pin Universal Super Connectors (Taiwan Patent: D196948, D196949 / China Patent: CN304998083S) HCS (High Conductivity Socket) Terminals Patented Buckle (20+4) Pin Connector (Taiwan Patent: M563575 / China Patent: 7566010) |
| Capacitors | 100% Japanese 105°C Capacitors (Main Board) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP / LVP |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50°C Hot Testing 2,000+ On/Off Test |
| Compliance | Energy Star / EuP / RoHS / WEEE Lead-free Green Materials |
| Compatibility | Intel / AMD Multi-Core CPU ATX / BTX / BTF Compatible Motherboards NVIDIA® SLI™ & ATI CrossFireX™ |
| Dimension | 125mm(L) x 150mm(W) x 86mm(H) |

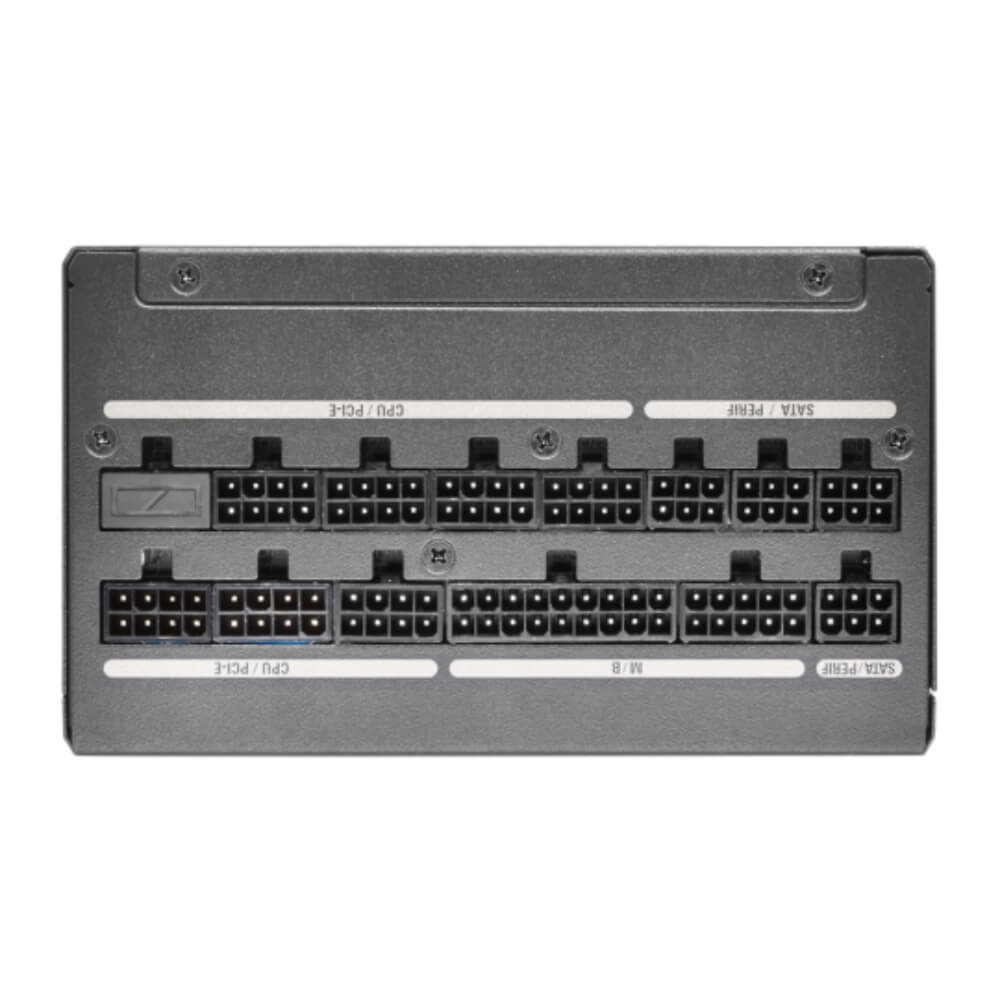

| CABLE SPEC | |
| 20+4 Pin ATX | Detachable – One Cable (600mm) |
| 8(4+4) Pin CPU | Detachable – Two Cables (700mm) |
| PCIe 6+2 Pin | Detachable – Four Cables (700mm) |
| PCIe 12+4 Pin (12V-2×6) | Detachable – One Cable (700mm) |
| 4 SATA | Detachable – Two Cables (550+130+130+130mm) |
| 4 Molex | Detachable – One Cable (550+150+150+150mm) |
