ASRock B760M Pro RS/D4 WiFi – Socket 1700
Giá Tân Doanh:3,290,000₫
Giá Thường:3,750,000₫
Tiết Kiệm: 460,000₫ (12%)
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASRock
- Giá trên đã bao gồm VAT.
- VRM xịn xò với 7+1+1 Phase, Mosfet 50A Dr.MOS đủ khả năng cân tốt các CPU có TDP khoảng 180W đổ lại. Tức là bo mạch chủ này có thể chạy ngon Core i5 13600K hay cả Core i7 13700
- Thiết kế cực đẹp tông sáng sang trọng.
- Sử dụng hệ thống DDR4 với chi phí tiết kiệm cho người dùng.
- Đi kèm theo đó là Wifi 6E + Bluetooth 5.3 phiên bản mới nhất.
Thông tin Sản Phẩm
- ASRock B760M Pro RS/D4 WiFi là chiếc bo mạch chủ rất đáng giá cho những ai đang định xây dựng bộ PC tầm trung.
- Cụm VRM xịn xò với 7+1+1 Phase, Mosfet 50A Dr.MOS đủ khả năng cân tốt các CPU có TDP khoảng 180W đổ lại. Tức là bo mạch chủ này có thể chạy ngon Core i5 13600K hay cả Core i7 13700
- Thiết kế cực đẹp tông sáng sang trọng.
- Sử dụng hệ thống DDR4 với chi phí tiết kiệm cho người dùng.
- Đi kèm theo đó là Wifi 6E + Bluetooth 5.3 phiên bản mới nhất.
| Unique Feature | Rock-Solid Durability – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield – ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU | – Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | – Intel® B760 Chipset |
| Memory | – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB – Supports Intel® Extreme Memory Profile (XMP) 2.0*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| Ethernet | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 + High speed class II – Supports MU-MIMO*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
|
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |

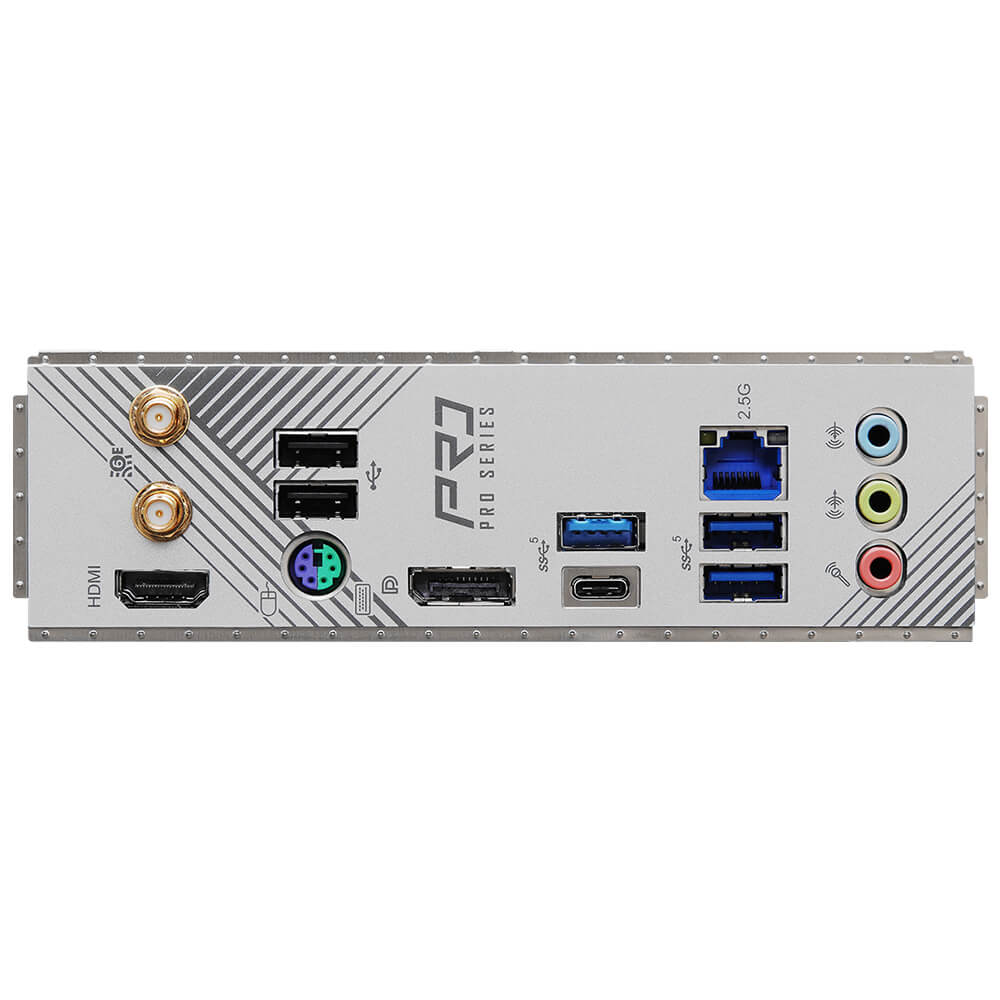

| Rear I/O Ports | – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | – 1 x User Manual – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket |
| Operating System | – Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
