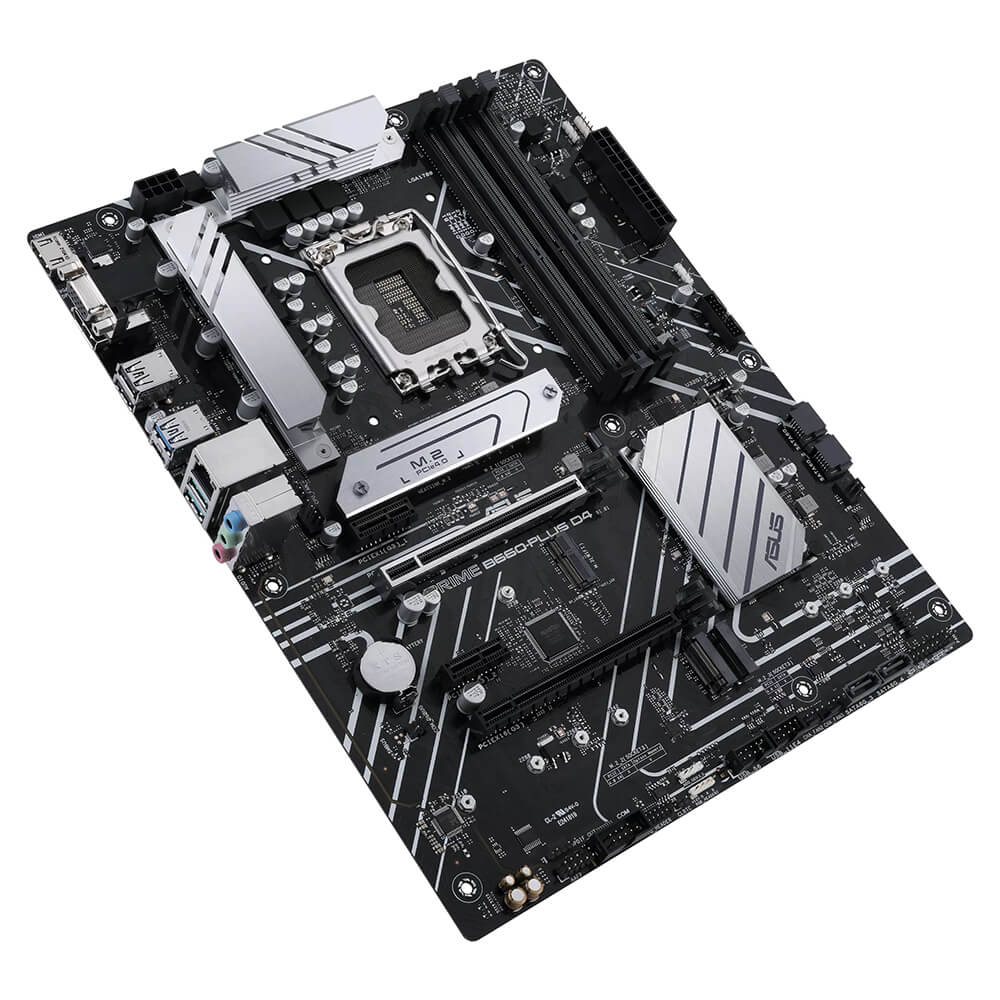

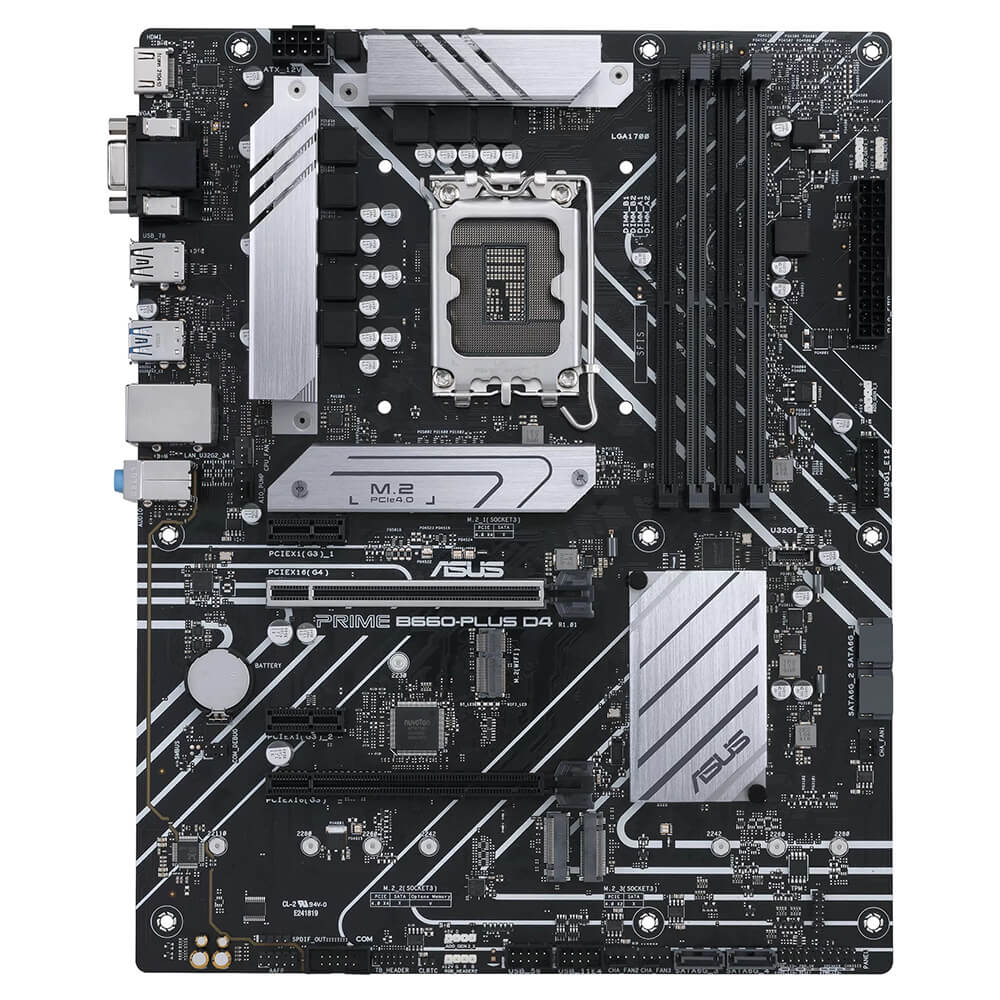

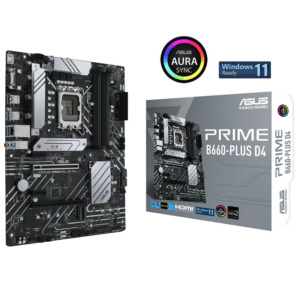

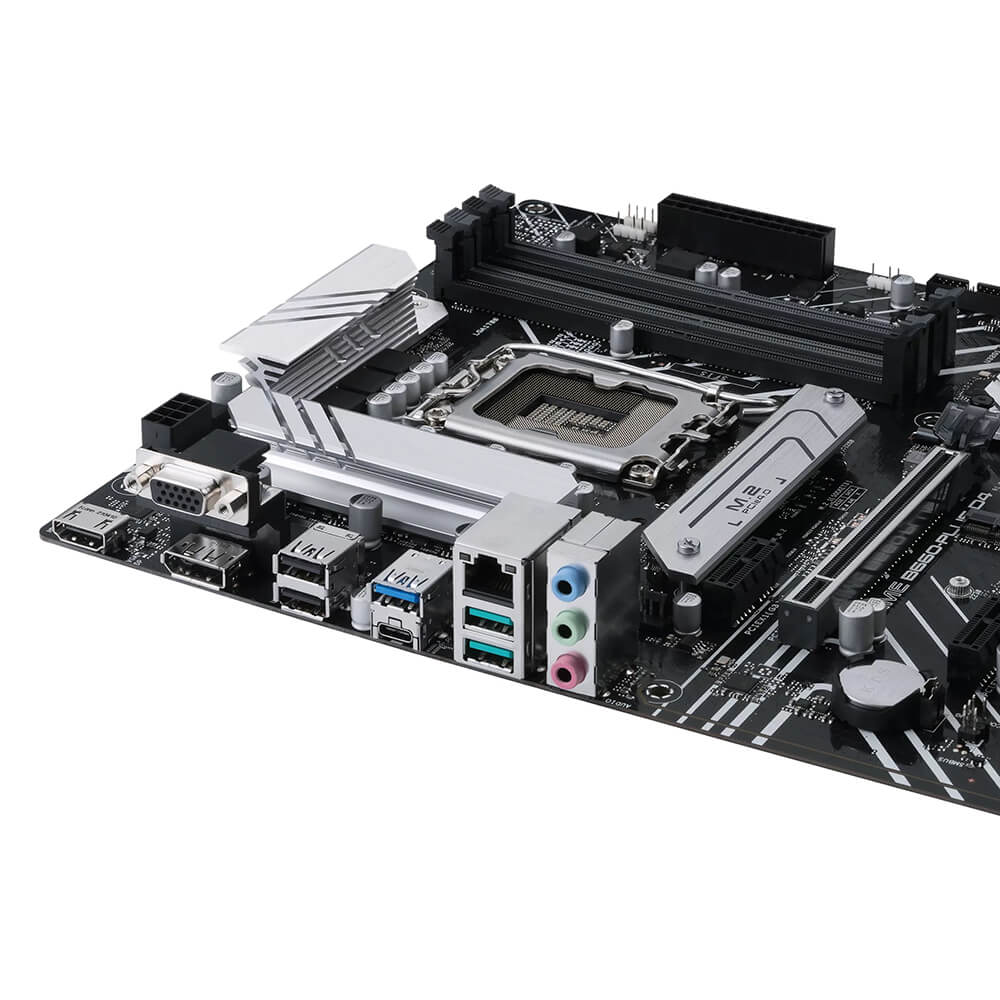

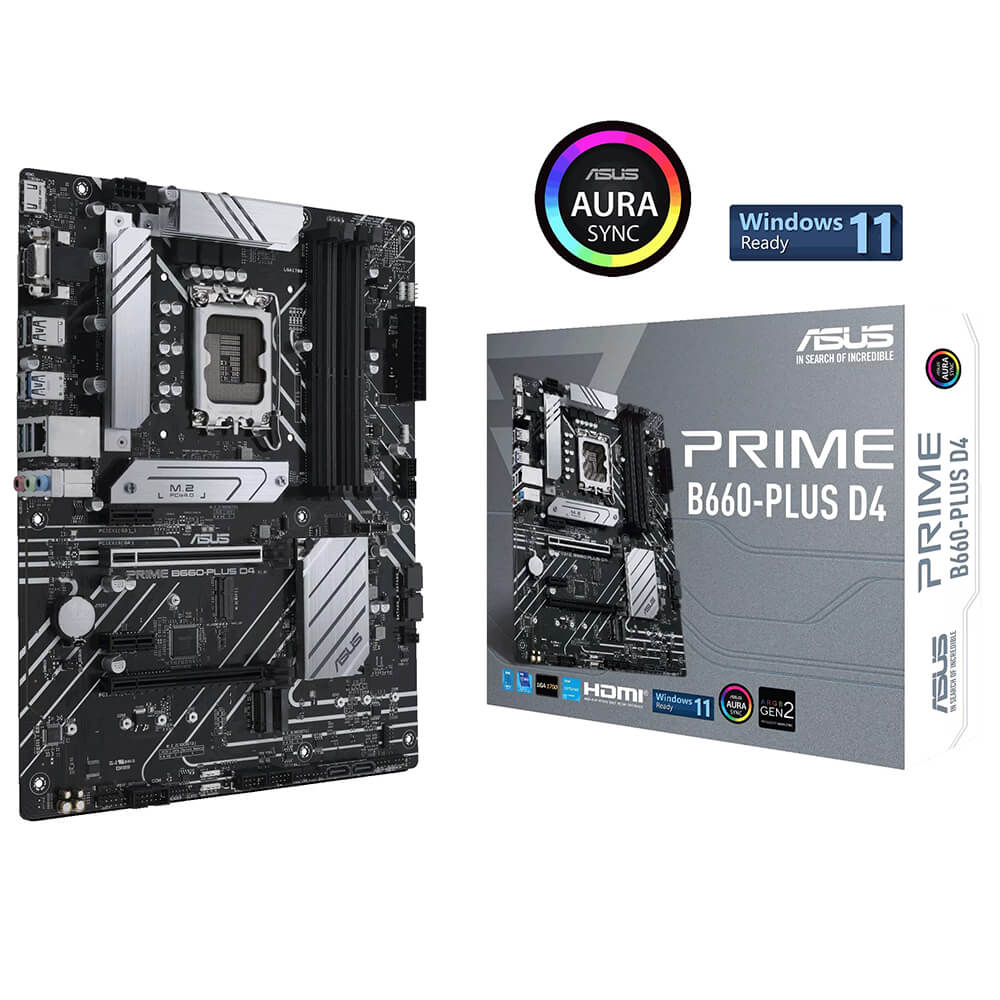

Asus PRIME B660-PLUS D4 – Socket 1700

Giá Tân Doanh: 3,890,000₫

Tình trạng: Mới 100%
Bảo hành: 36 tháng
Xuất xứ: Chính hãng
Thương hiệu: ASUS
Giá trên đã bao gồm VAT.

Mã: M-B660-PLUS-D4 Danh mục: Intel B660 - Socket 1700, Linh kiện ráp máy, Mainboard Intel Thẻ: ASUS, B660

Giao hàng

Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây
Đổi trả

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây
Tổng đài CSKH

1900.966.939
Hotline Kinh Doanh

093.88.99.941
078.366.6668
Hotline Kỹ Thuật

093.88.99.947

Thông tin Sản Phẩm

Mô tả

Intel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, D-Sub, rear USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Aura Sync

Intel^® LGA 1700 socket: Ready for 12^th Gen Intel^®processors
Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2×2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 header support
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

CPU	Intel^® Socket LGA1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered memory” Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) OptiMem Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort 1 x D-Sub port 1 x HDMI^® port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 4K@60Hz as specified in DisplayPort 1.4. *Supports 4K@60Hz as specified in HDMI 2.1. ** VGA resolution support depends on processors’ resolution.
Expansion Slots	Intel^® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel^® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel^® Optane Memory H Series on PCH-attached PCIe slot
Storage	Intel^® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel^® 12th Gen processors support PCIe 4.0 x4 mode. Intel^® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel^® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features – Audio Shielding – Power pre-regulator reduces power input noise to ensure consistent performance – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

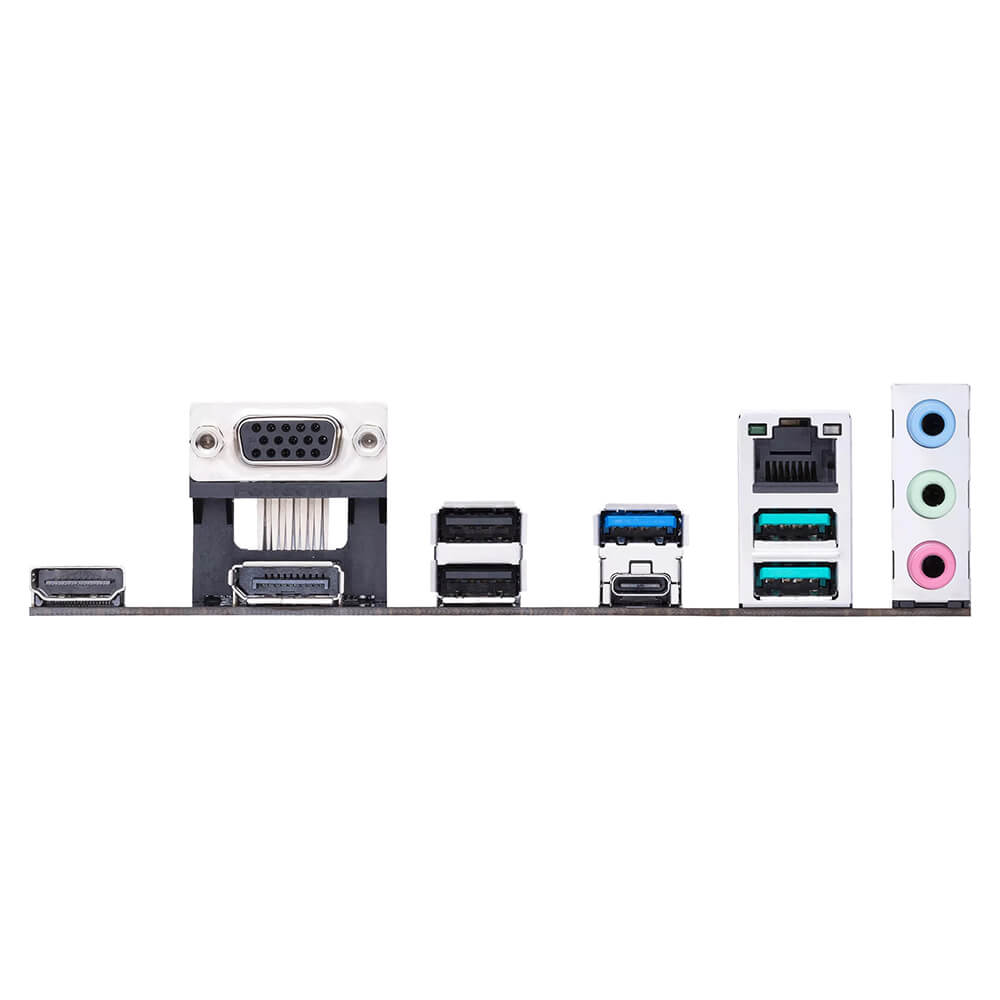

Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI^® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design AURA Sync – AURA RGB headers – Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2+ AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide
Form Factor	30.5cm x 24.4cm
