Model |
Pro WS WRX80E-SAGE SE WIFI
|
CPU | AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors* * Refer to www.asus.com for CPU support list. |
Chipset | AMD WRX80 Chipset |
Memory | 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory* 8 Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Expansion Slots | AMD Ryzen™ Threadripper™ PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function. |
Multi-GPU Support |
Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
|
Storage | Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s portsSupports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately. |
Ethernet |
1 x Intel® X550-AT2 dual 10Gb Ethernet
|
Wireless & Bluetooth | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
Audio | Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback |

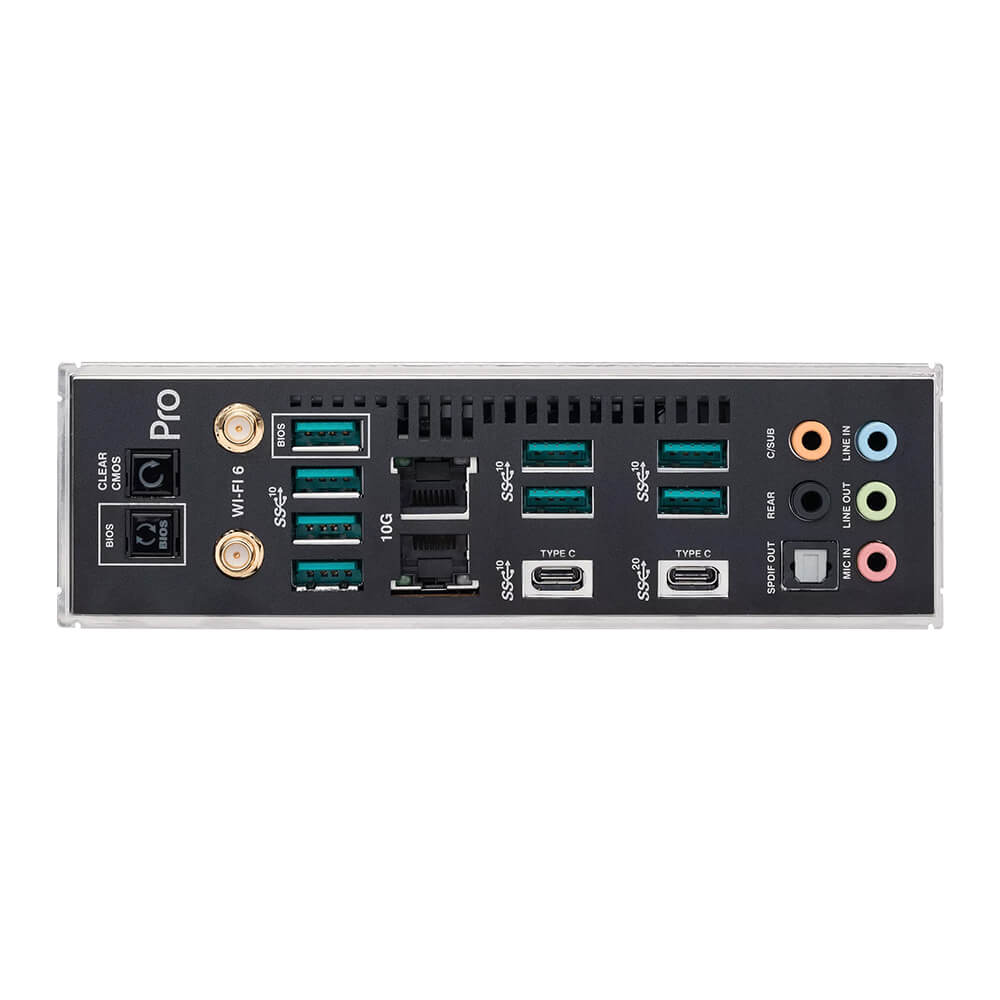

Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®) 1 x Wi-Fi Module 2 x Intel® X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |
Special Features | ASUS Q-Design – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot Bespoke Motherboard Design & Business Focused Features – Event Log in ASMB9-iKVM – 24/7 Reliability – Overcurrent Protection ASMB9-iKVM for KVM-over-Internet |
Software Features | ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X® Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability | WOL by PME, PXE |

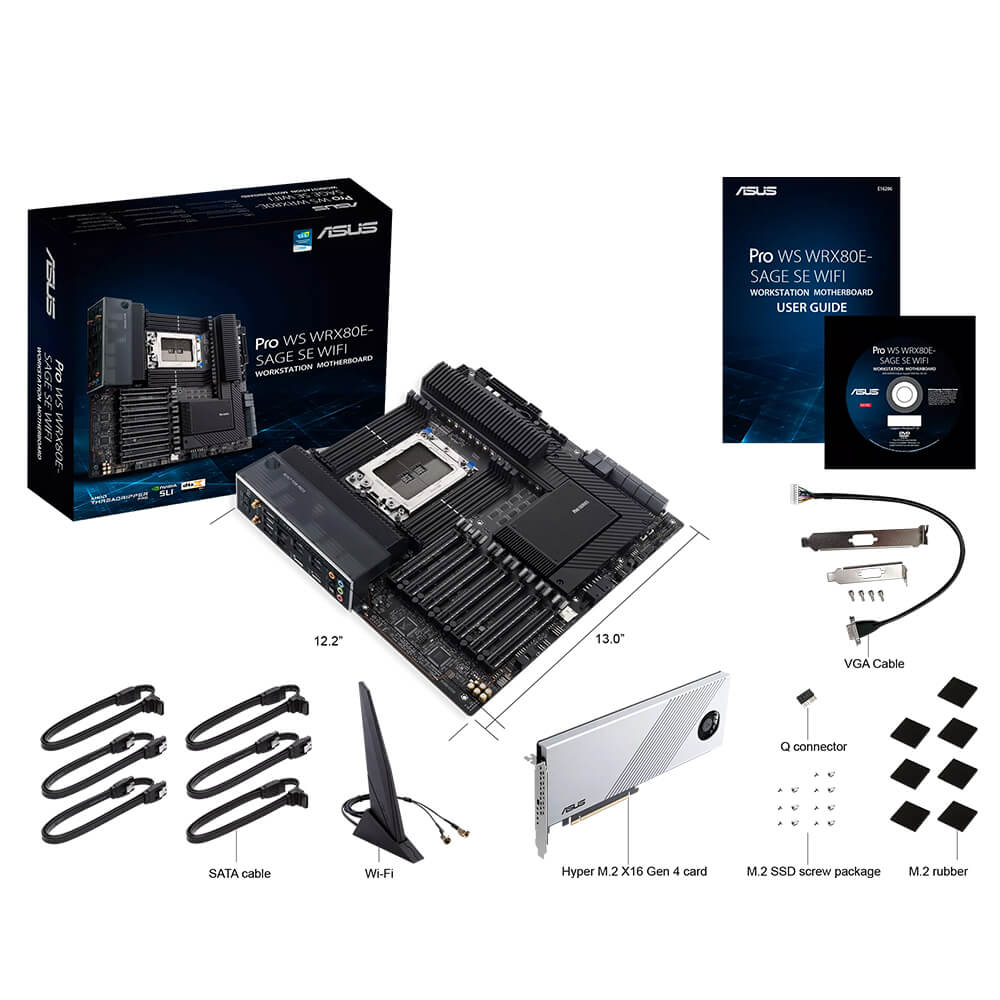

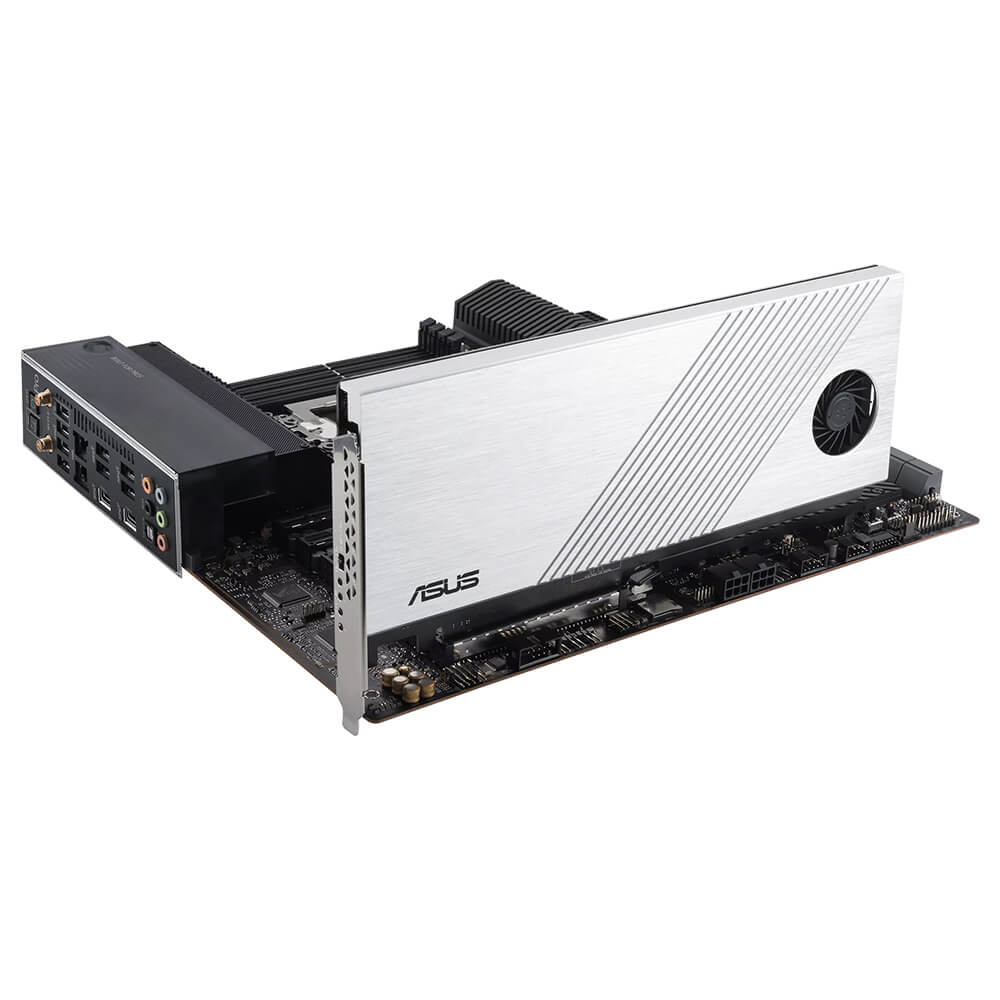

Accessories | Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 Rubber Package(s) 6 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual |
Operating System | Windows® 10 64-bit, Windows® 11 Ready |
Form Factor | EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm ) |

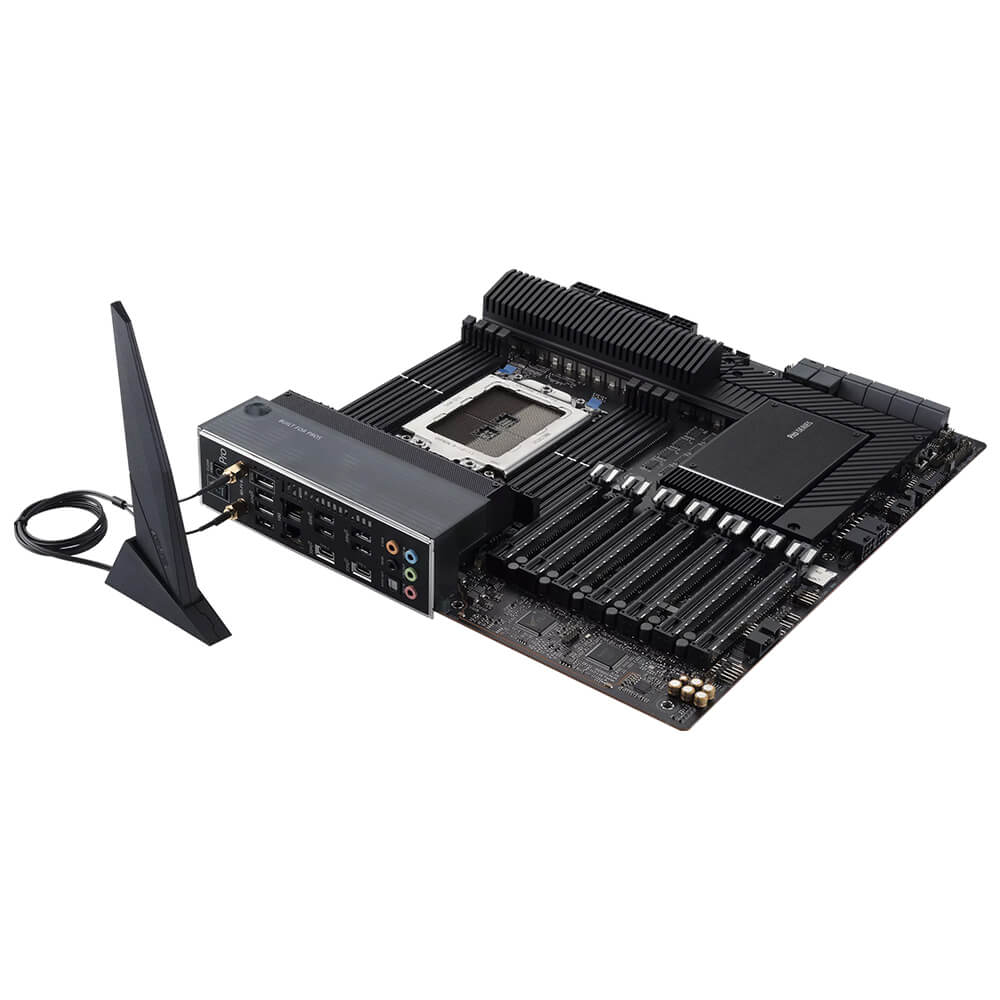

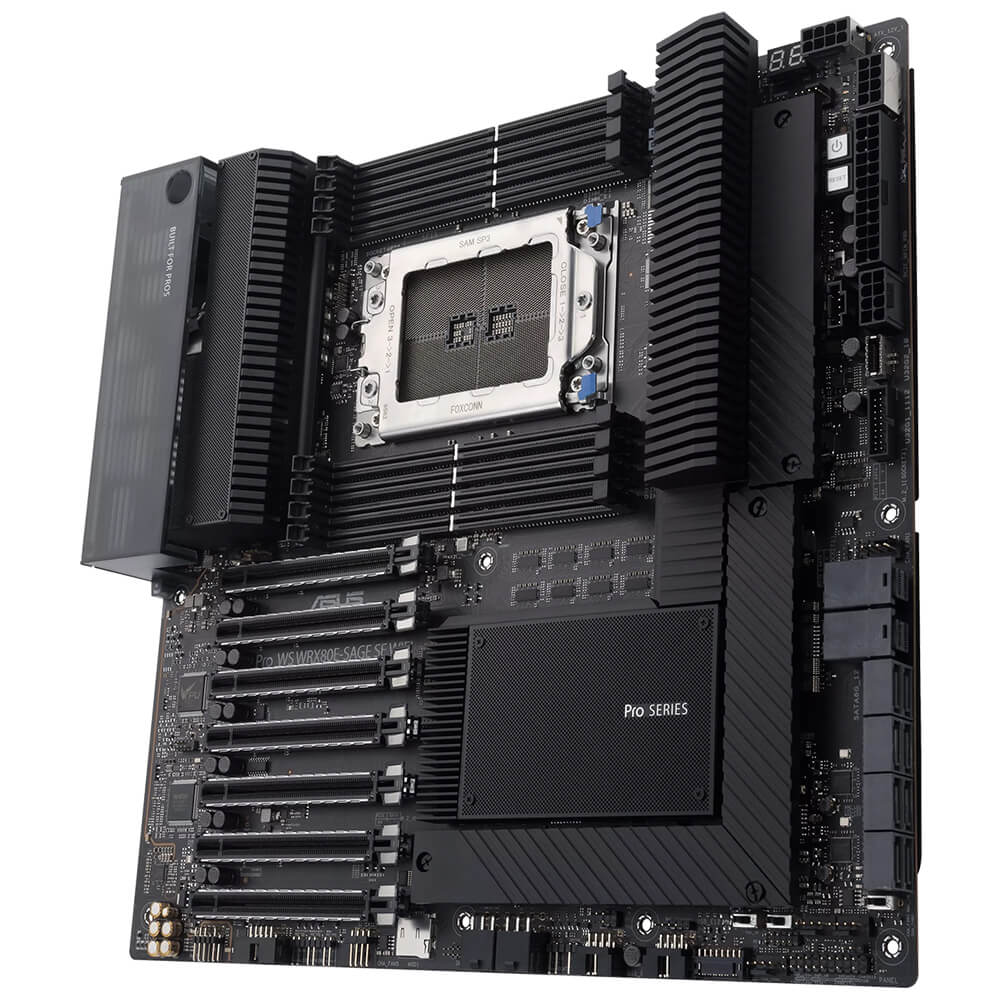

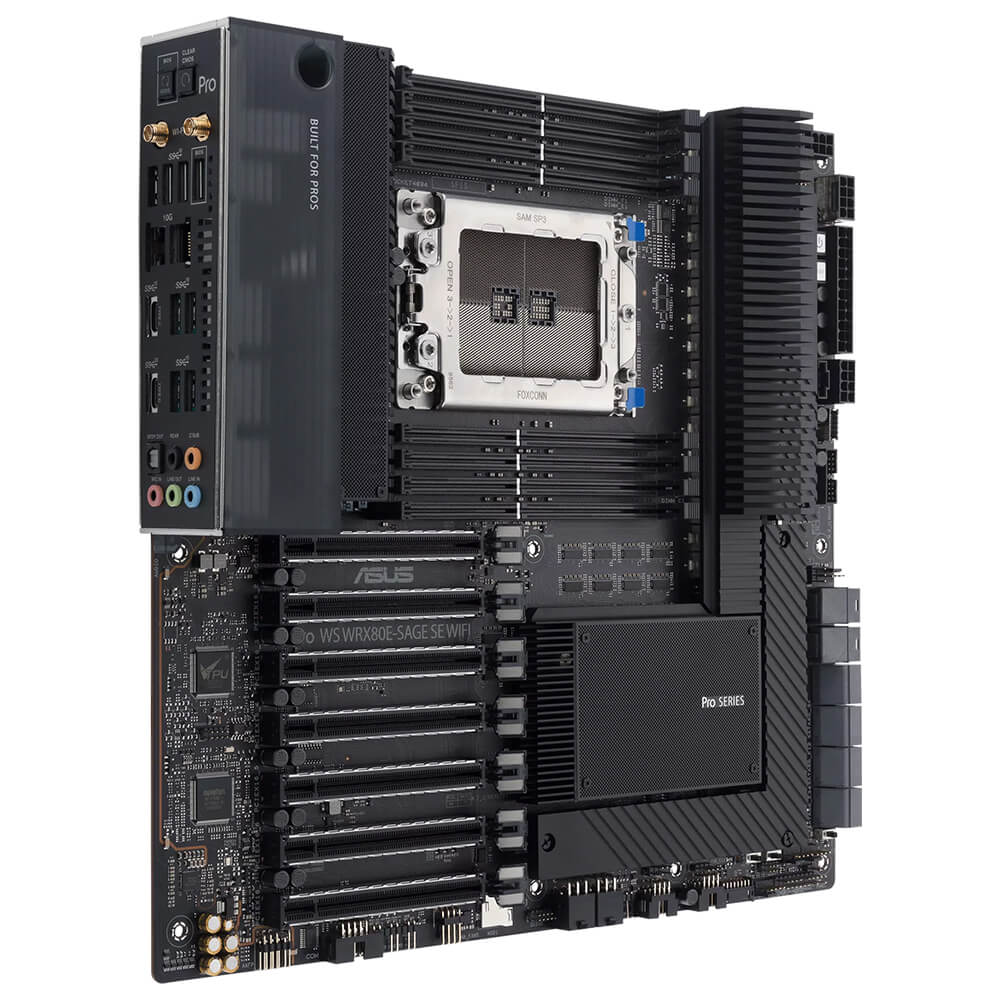

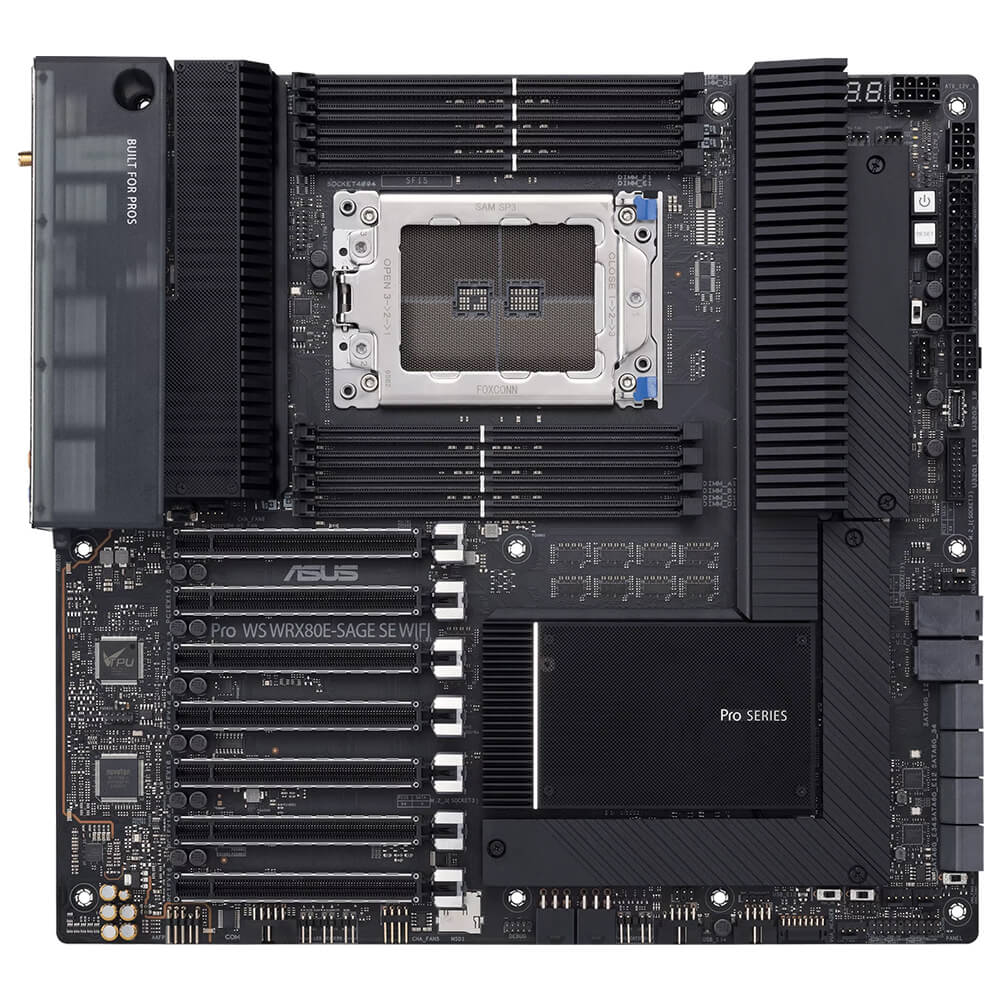

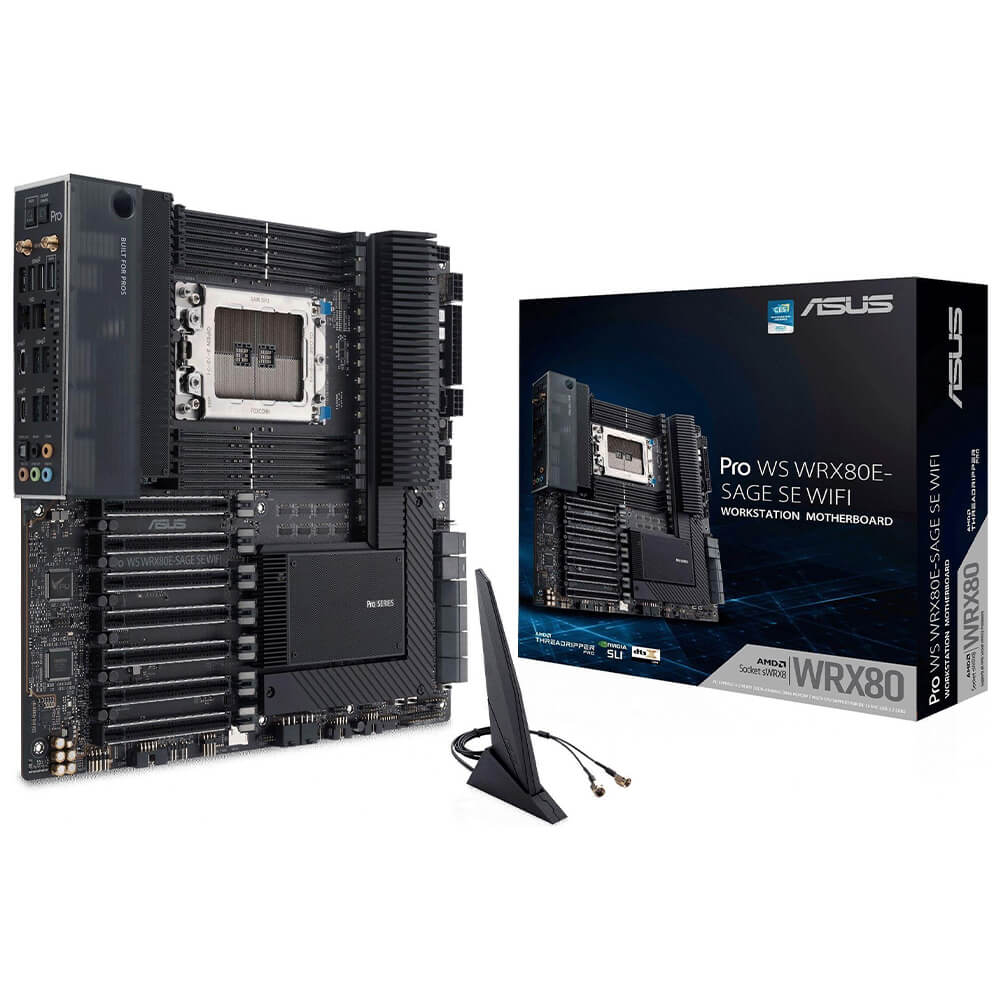

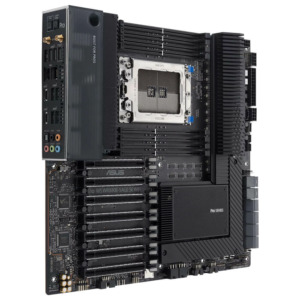

Asus Pro WS WRX80E-SAGE SE WIFI – Socket sWRX8
Giá Tân Doanh:
25,490,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASUS
- Giá trên đã bao gồm VAT.
