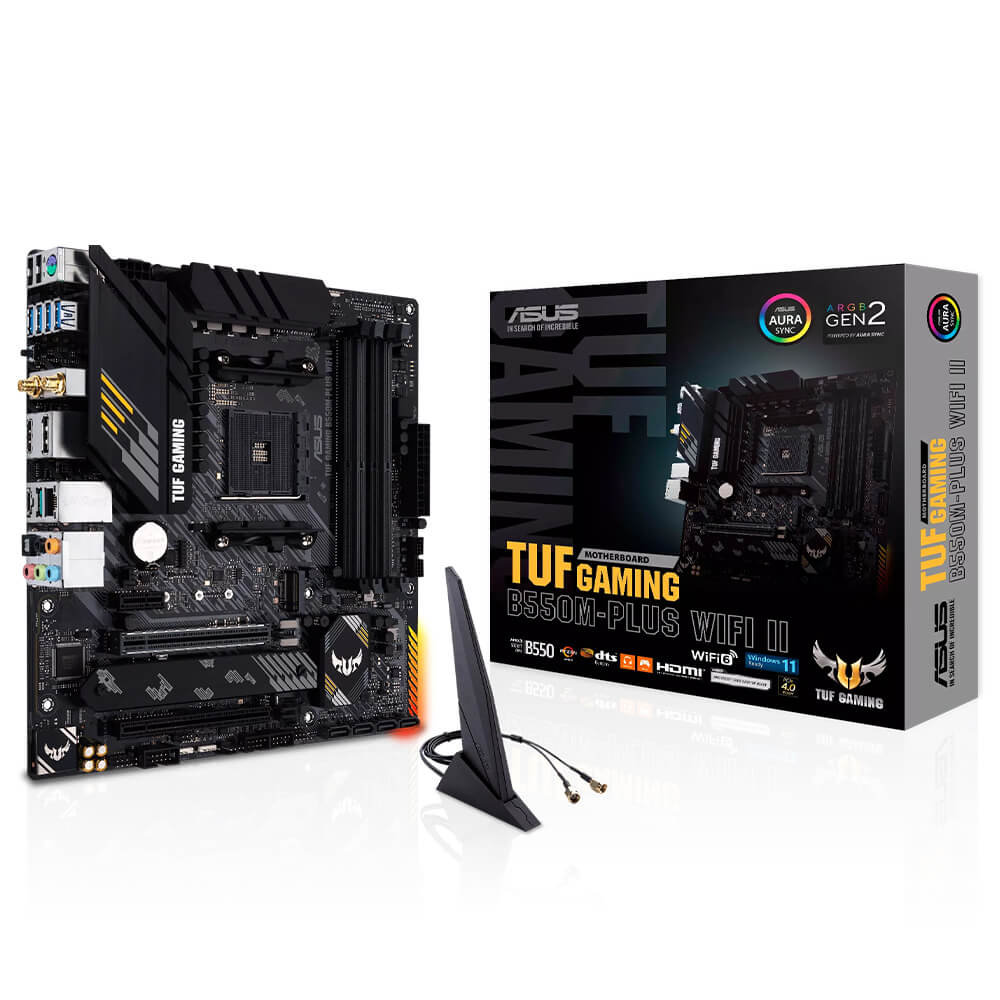

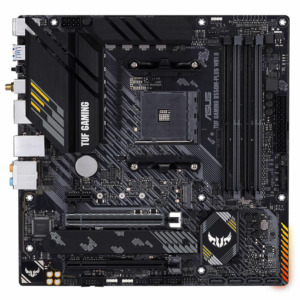

Asus TUF GAMING B550M-PLUS WIFI II – SOCKET AM4
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASUS
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm

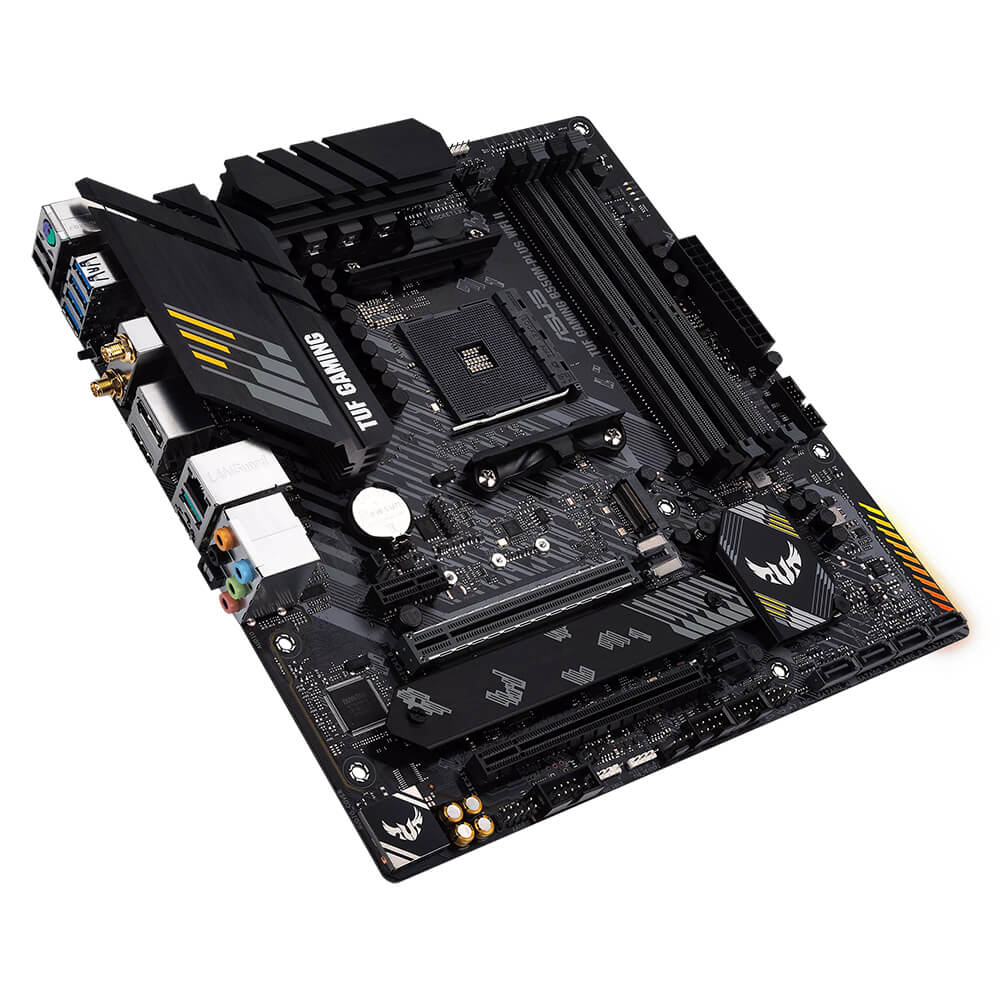

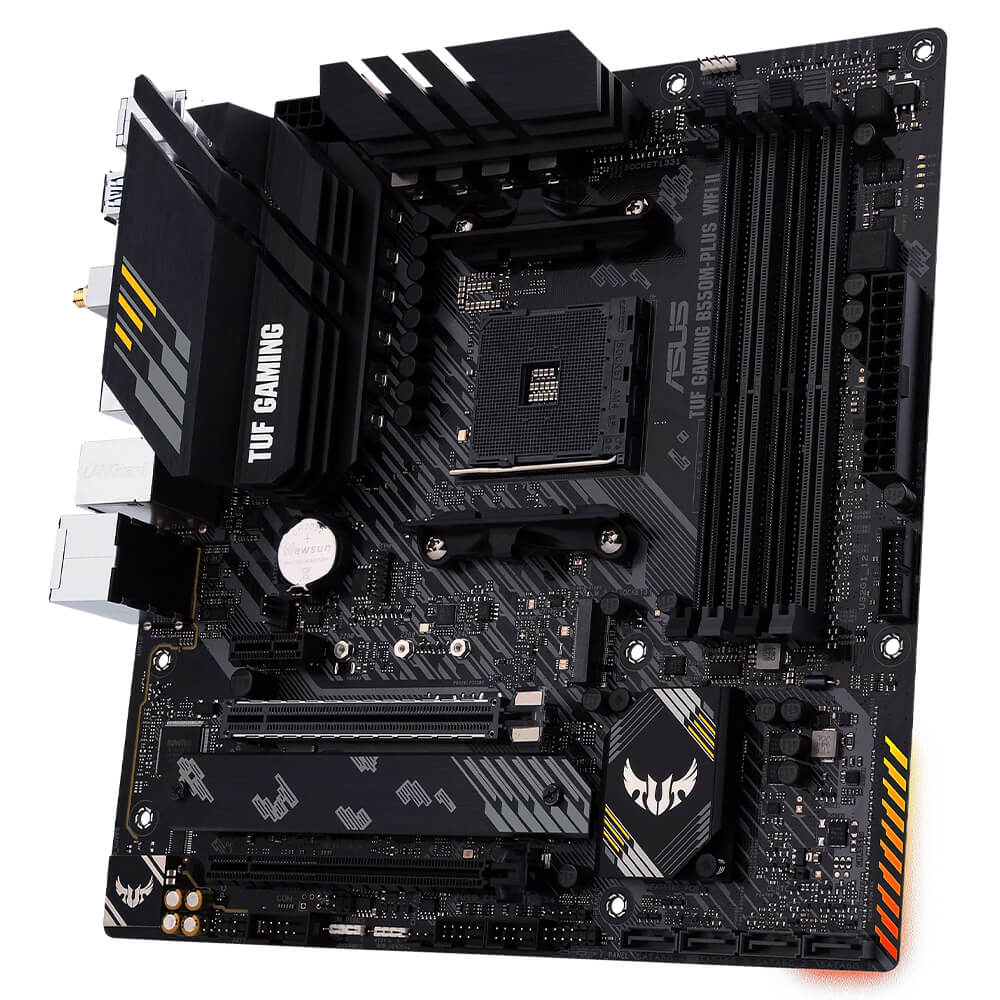

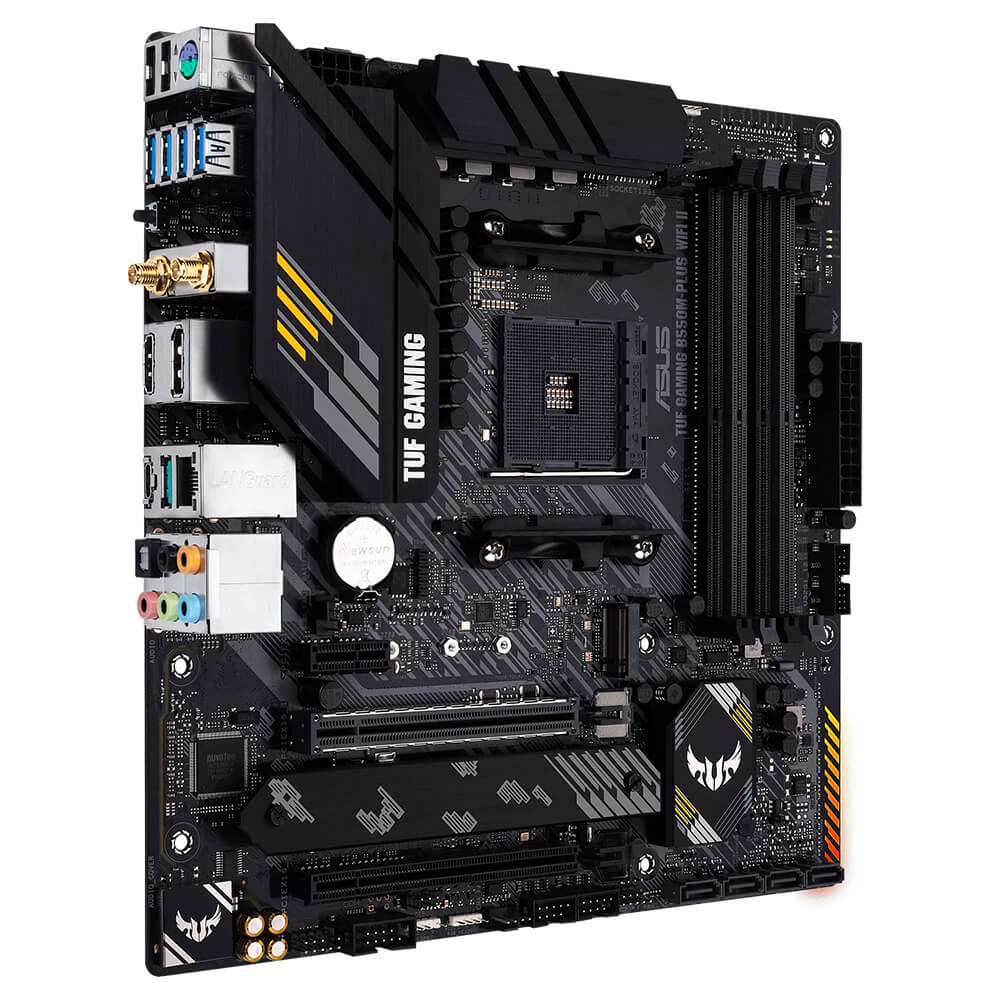

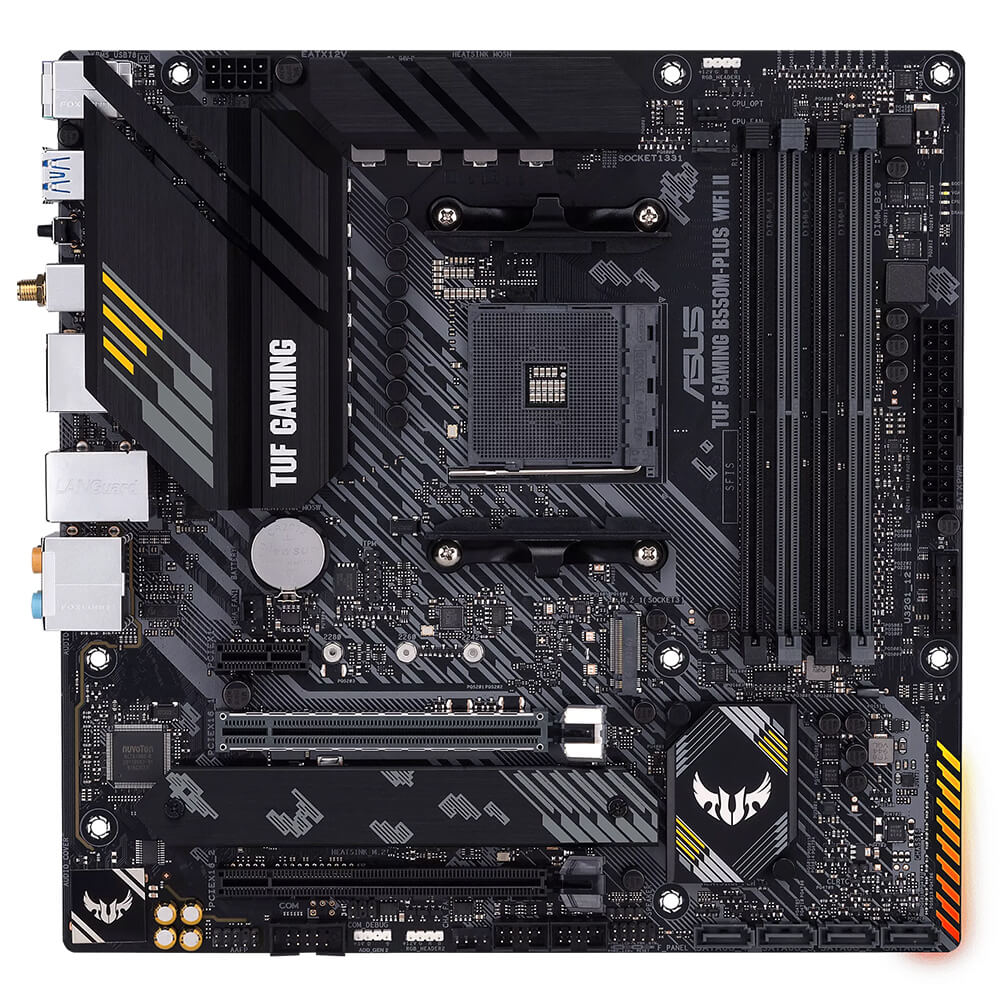

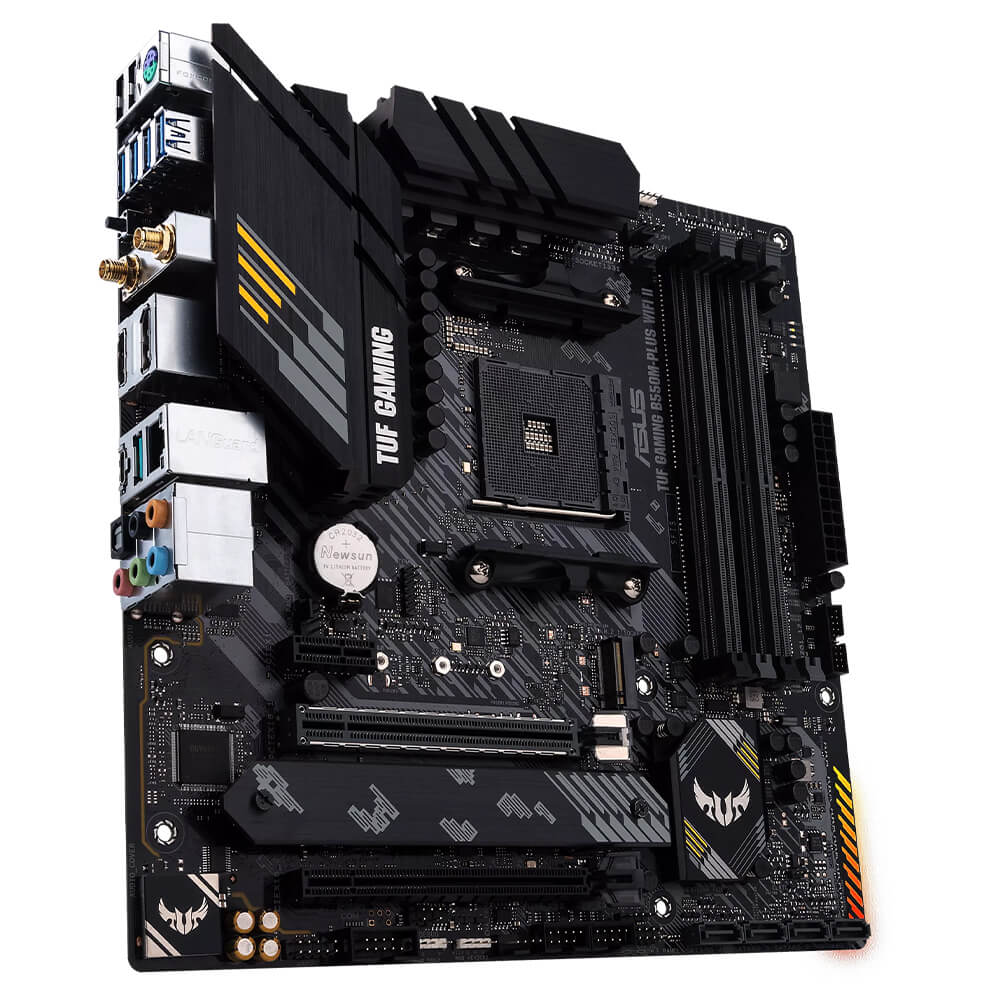

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
- Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
| CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
Dual Channel Memory Architecture * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x DisplayPort**
1 x HDMI®port*** *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)* AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slot** * Support PCIe bifurcation for RAID on CPU function. ** PCIEX16_2 will run x2 mode when PCIEX1 slot is used. |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)AMD B550 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s portsSupport RAID 0, 1, 10 |
| Ethernet | TUF LANGuard |
| Wireless & Bluetooth | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover |
| USB | Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |

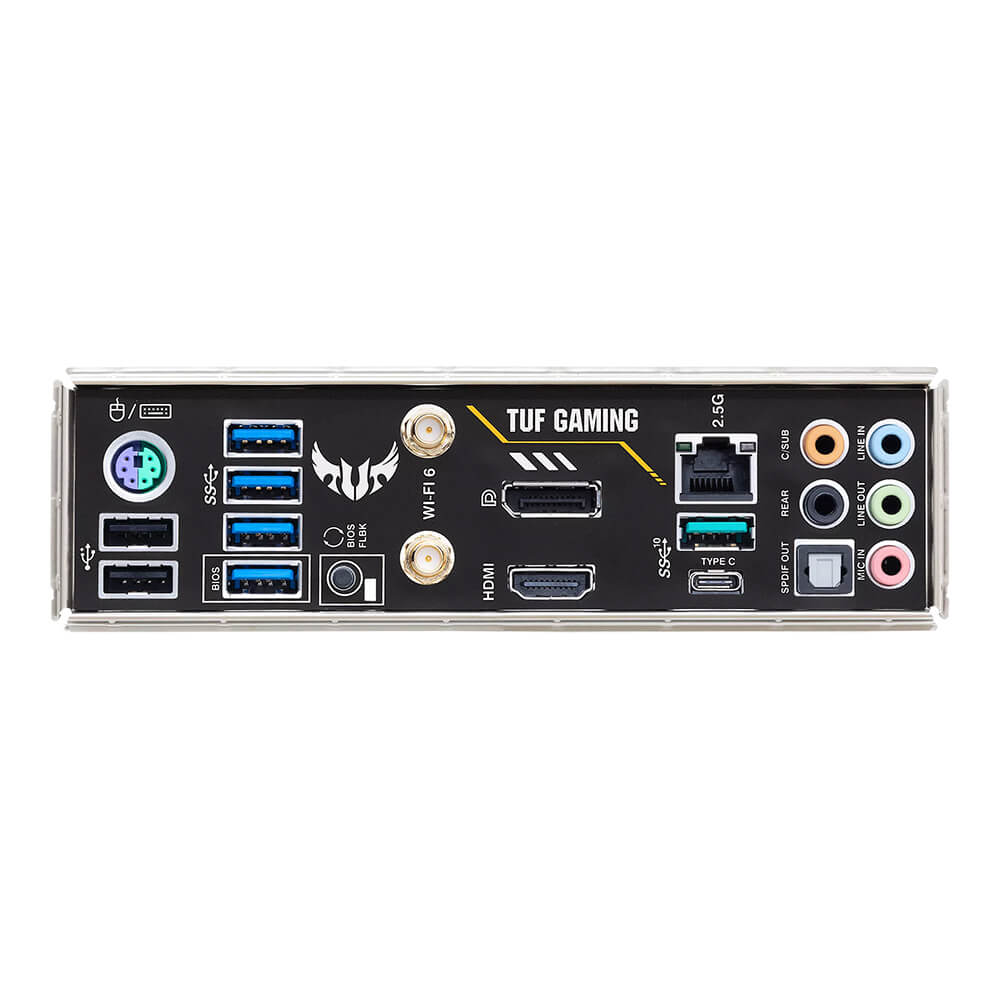

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS TUF PROTECTION
– DIGI+ VRM (Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool AURA Sync – AURA RGB headers – Addressable Gen 2 header |
| Software Features | ASUS Exclusive Software
Armoury Crate – Aura Creator – Aura Sync – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

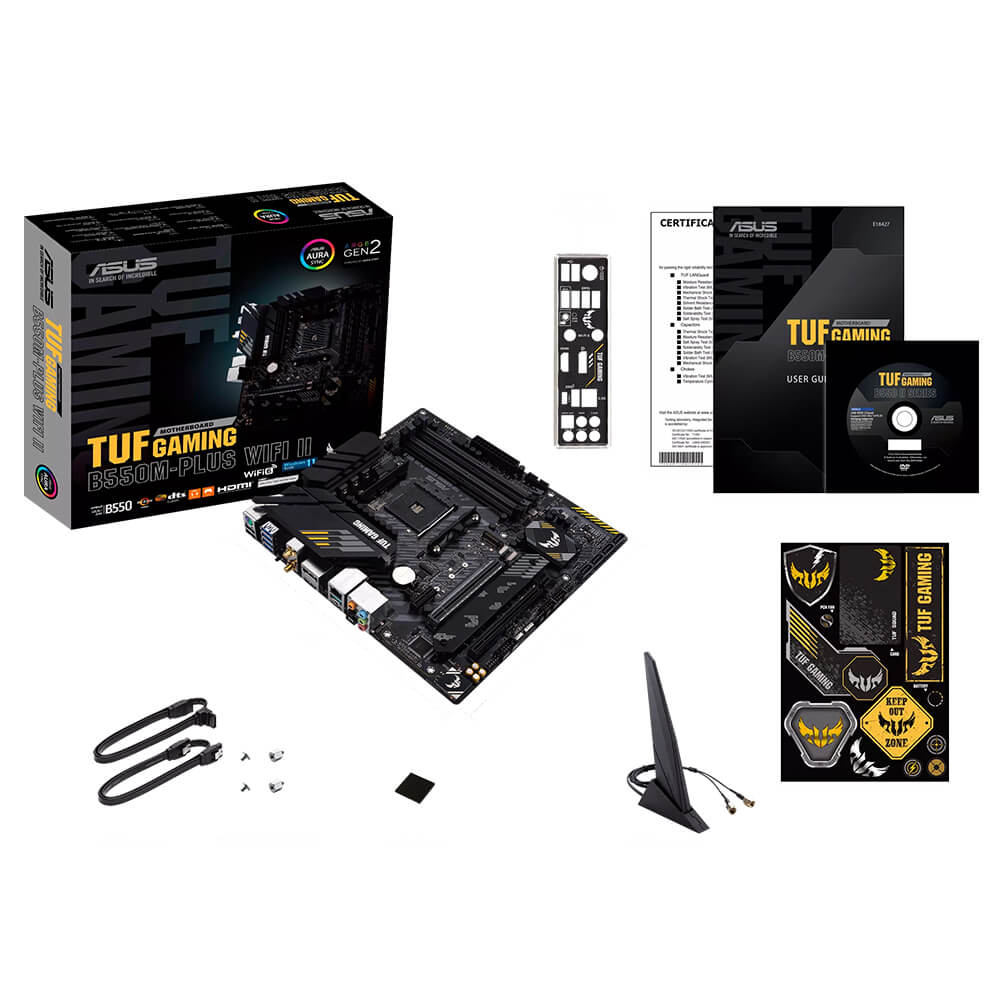

| Accessories | Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | Windows® 11 ready
Windows® 10 64-bit |
| Form Factor | microATX 24.4cm x 24.4cm |
