Gigabyte Z690M AORUS ELITE AX DDR4 (Rev 1.x) – Socket 1700

Giá Tân Doanh: 5,700,000
  • Tình trạng: Mới 100%
  • Bảo hành: 36 tháng
  • Xuất xứ: Chính hãng
  • Thương hiệu: GIGABYTE
  • Giá trên đã bao gồm VAT.
  • Dòng Main Z690M Form M-ATX cho bộ case nhỏ gọn
  • 12+1+2 Power design có thể đáp ứng i9 12900 trở về
  • Heatsinks​ cover (full giáp bảo vệ và giải nhiệt các bộ phận quan trọng)
  • PCIe 5.0 Design
  • Đặt biệt có wifi 6 + Bluetooth 5
  • Giao hàng
    Giao hàng

    Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây

  • Đổi trả
    Đổi trả

    Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây

  • Tổng đài CSKH
    Tổng đài CSKH

    1900.966.939

  • Hotline Kinh Doanh
    Hotline Kinh Doanh

    093.88.99.941
    078.366.6668

  • Hotline Kỹ Thuật Kỹ Thuật
    Hotline Kỹ Thuật

    093.88.99.947

Lịch sử giá

Giá hiện tại:

Giá thấp nhất: Giá cao nhất:

Thông báo cho tôi

Khi giá sản phẩm thấp hơn

Thông tin Sản Phẩm

CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  • L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.

Chipset
  • Intel® Z690 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • Support for S/PDIF Out
LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB Chipset:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

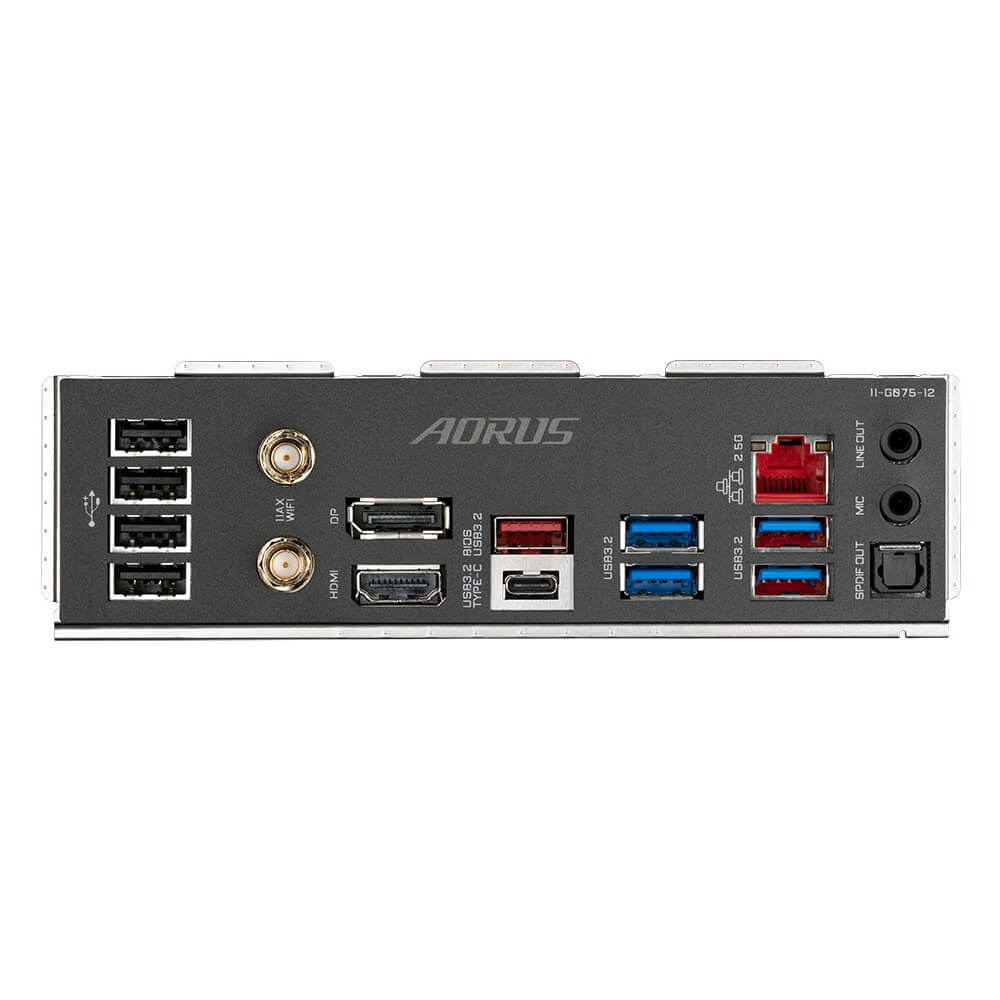

Back Panel Connectors
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor; 24.4cm x 24.4cm
