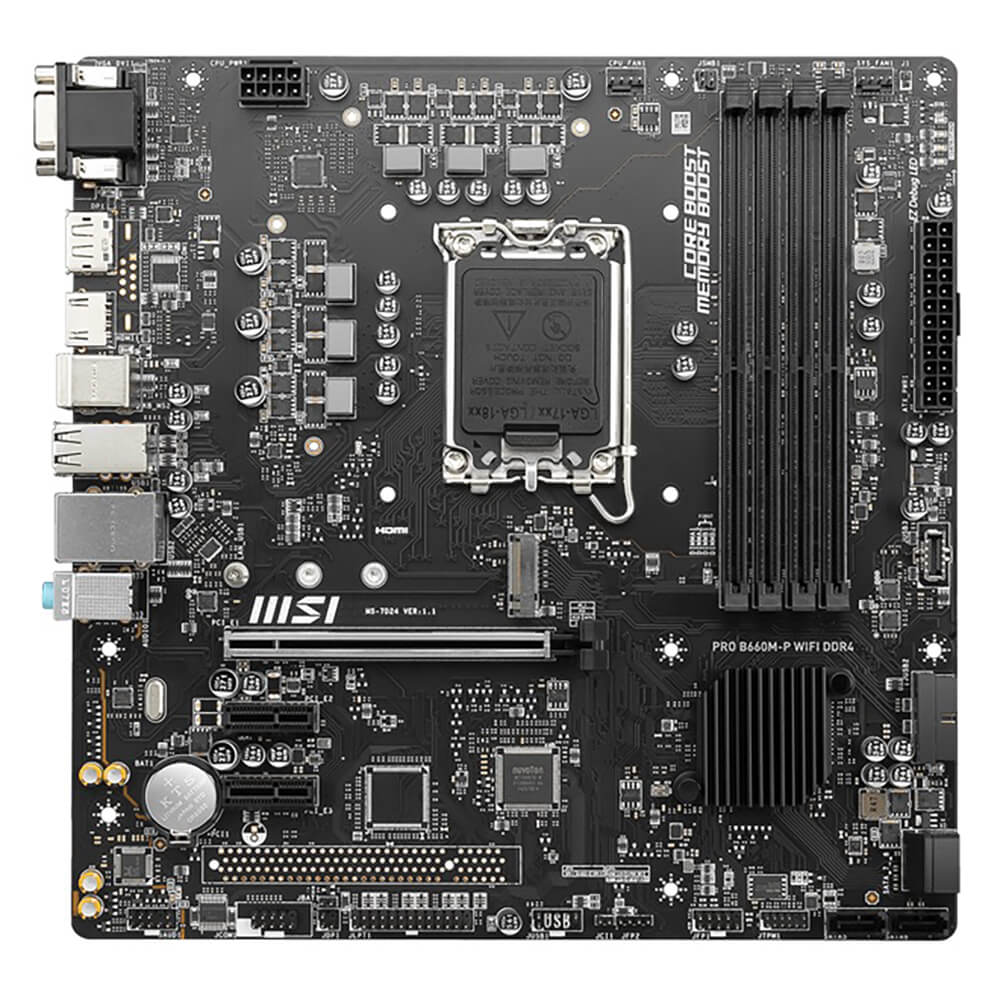

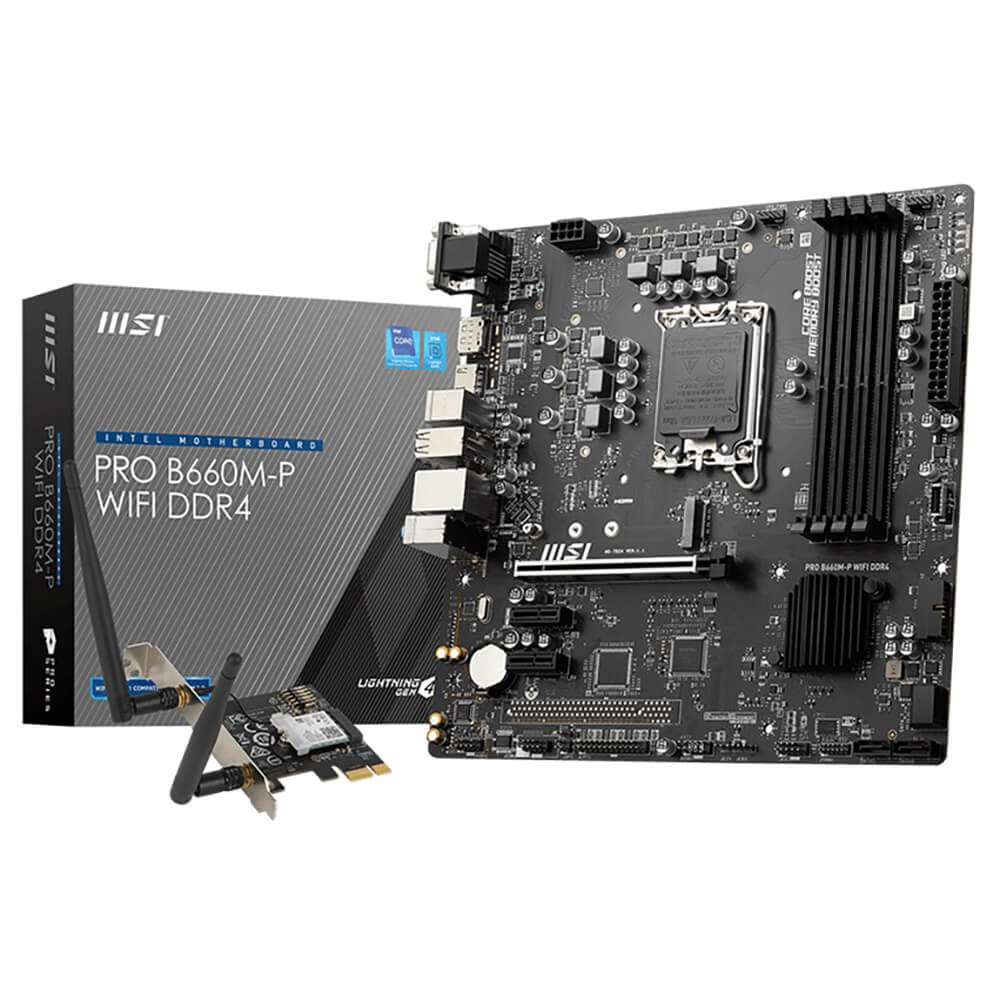

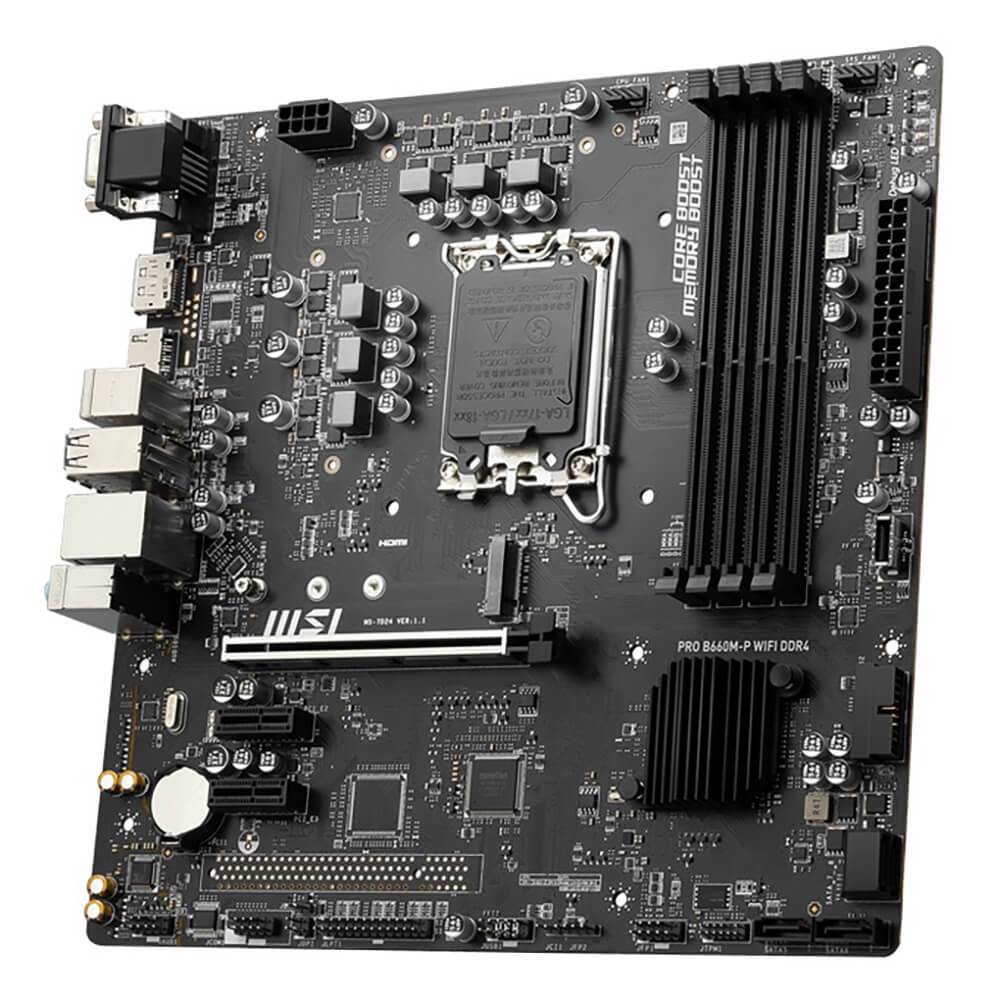

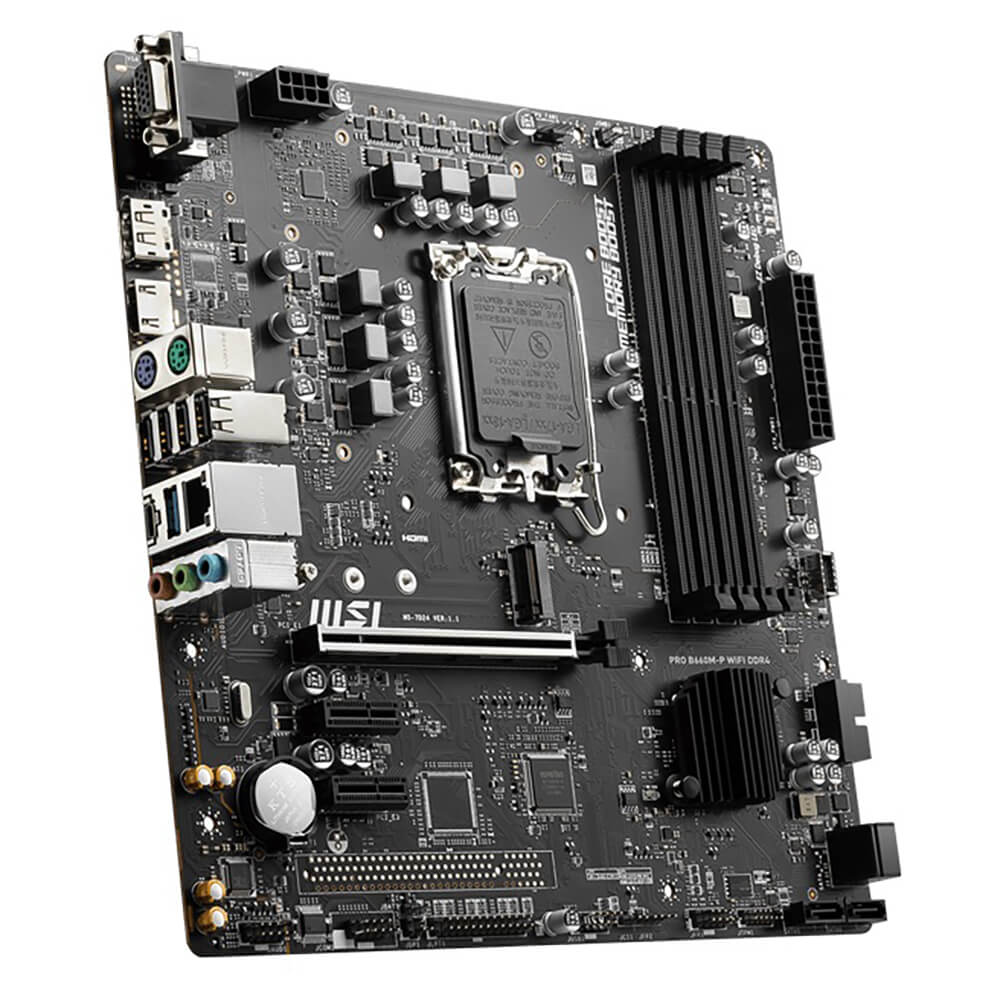

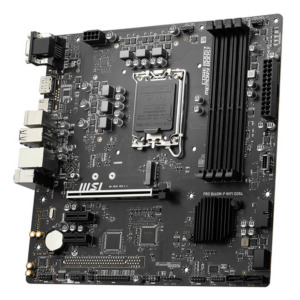

MSI PRO B660M-P WIFI DDR4 – Socket 1700

• Supports 12th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1700

• Intel^® B660 chipset

• 4x DDR4 memory slots, supporting up to 128GB¹
• Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 4600+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

• 1x PCIe x16 slot
  • PCI_E1 (From CPU)
    • Supports up to PCIe 4.0 x16
• 2x PCIe x1 slots
  • PCI_E2 & PCI_E3 (Fom B660 chipset)
    • Supports up to PCIe 3.0

• 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz¹/²
• 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz¹/²
• 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz

1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• 4x SATA 6Gb/s ports (From B660 chipset) ¹
• 1x M.2 slot (Key M)
  • M2_1 slot (From B660 Chipset)
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
• 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)
  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 1x USB 2.0 Type-A connector (From B660 chipset)
  • Supports additional 2 USB 2.0 ports

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

• 1x Realtek^® RTL8111H 1Gbps LAN controller

• Dual Band 1×1 802.11ac
• 2.4GHz/ 5GHz bands
• 433 Mbps Max Speed
• Bluetooth 4.2 (BR/EDR, BLE)
• Supports Windows 7/ 8.1/ 10

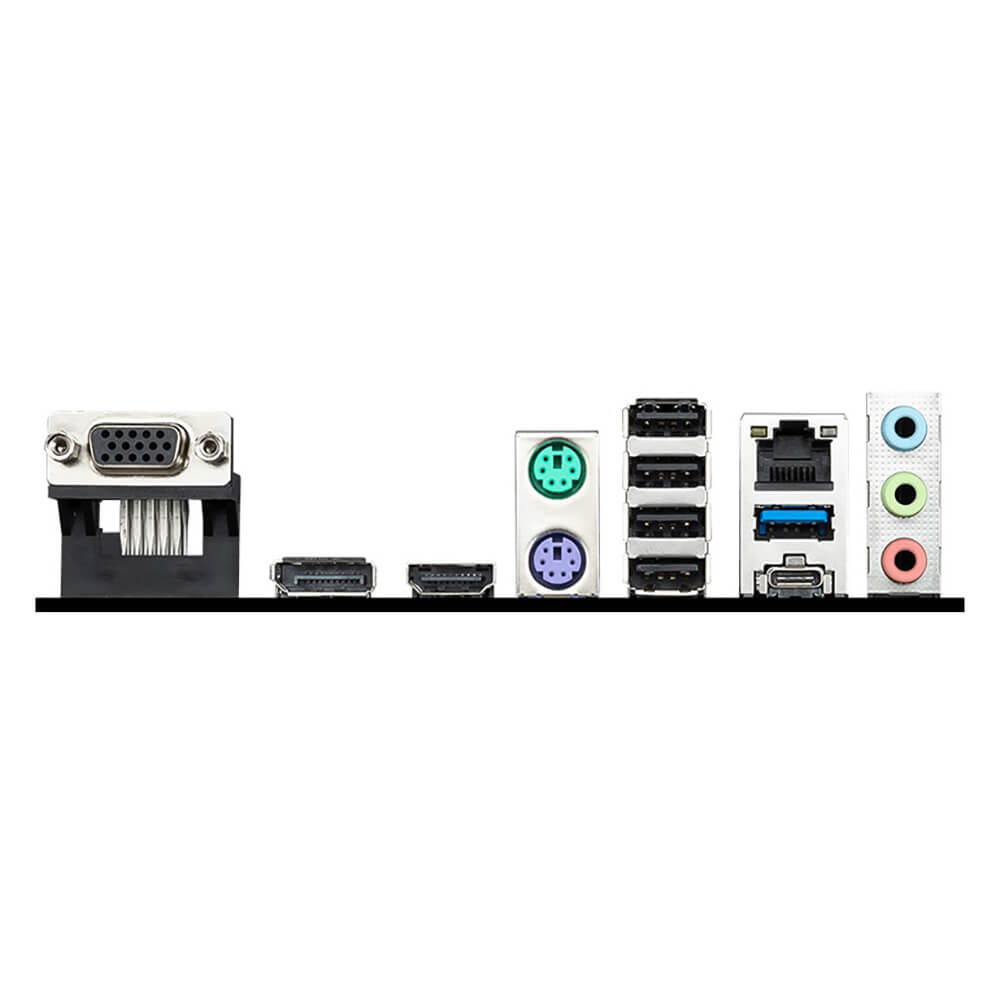

• 4x EZ Debug LED

• VGA
• DisplayPort
• HDMI
• Keyboard / Mouse
• USB 2.0
• LAN port
• Audio connectors
• USB 3.2 Gen 2 10Gbps Type-C
• USB 3.2 Gen 1 5Gbps Type-A

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.4, SMBIOS 3.4
• Multi-language

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector

• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x parallel port connector
• 1x Serial port

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

• M-ATX Form Factor
